Description

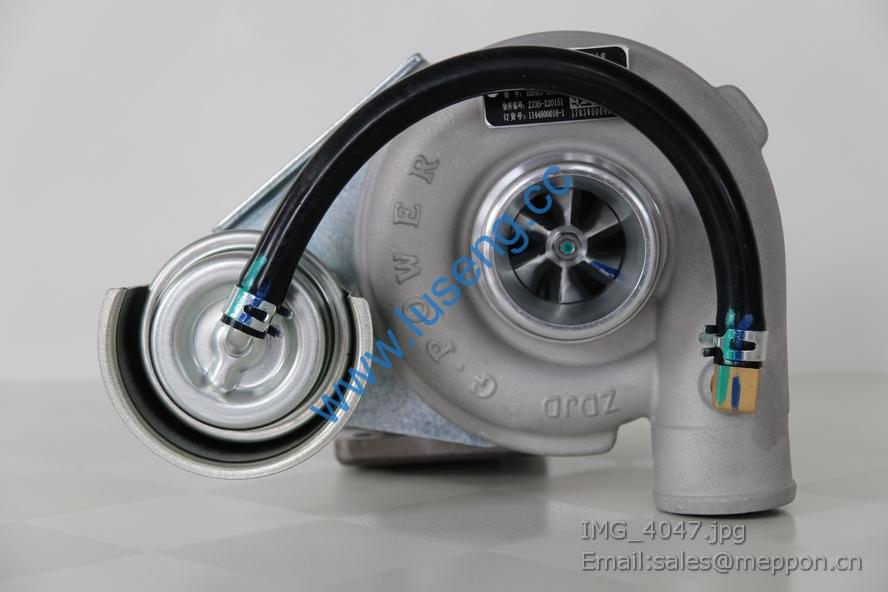

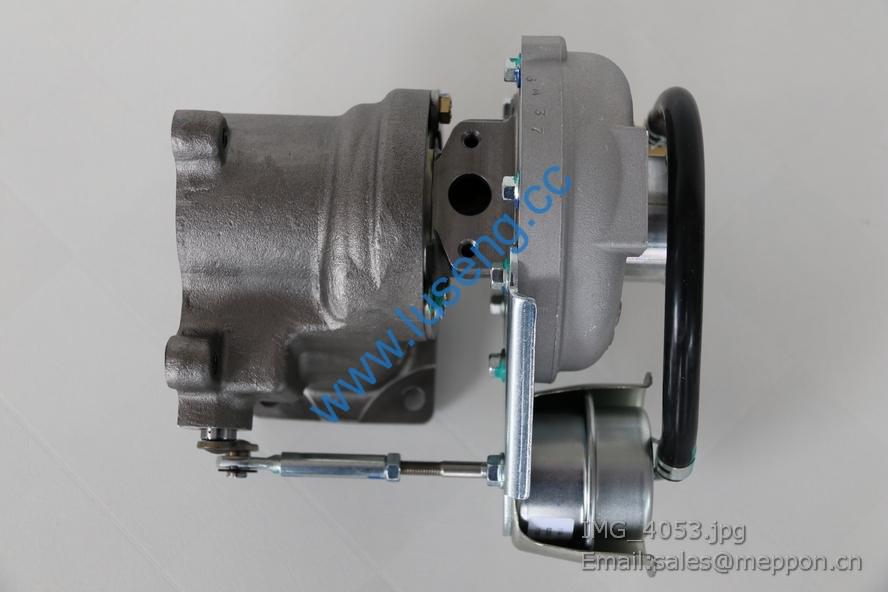

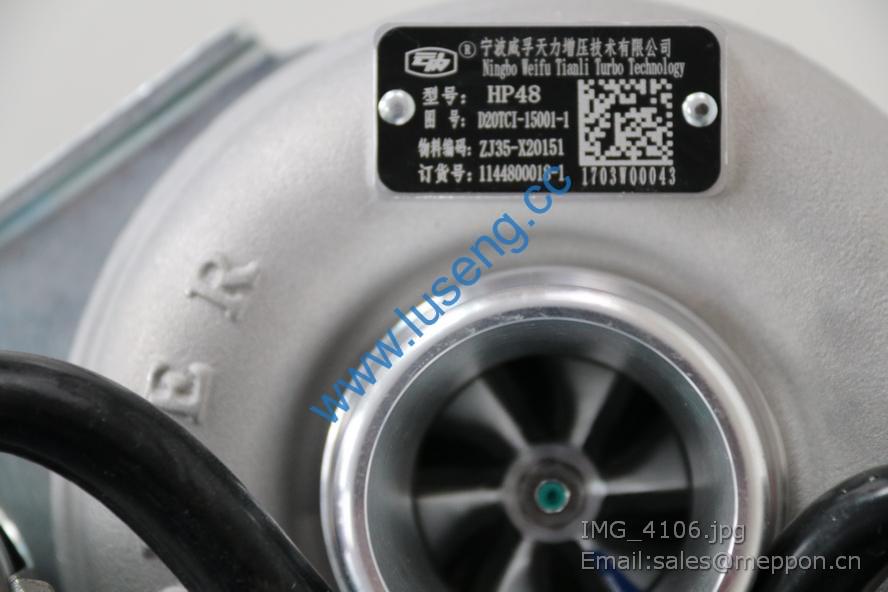

D20TCI-15001-1 turbocharger HP48 2148800003 yunnei

40100BE101 PQ4102BZ.10-11 喷油器总成 Injector assembly 4

Y10003447 YNF45-030002 第一道活塞环 4
2 Y10003447 YNF45-030002 第二道活塞环 4
3 Y10003447 YNF45-030002 油环 4
4 Y10003445 YNF45-030001 活塞 4
5 Y10003449 YNF45-030008 活塞销 4
6 GB/T 893.1-1986 活塞销锁圈 8
7 Y0312 YNF40-03314-1 连杆螺栓 8
8 Y034 YNF40-03210-1 连杆合件 4
9 Y036 YNF40-03312-1 连杆瓦(下片) 4
10 Y10005940 D45TCIF-030006 连杆瓦(上片) 4

1 Y0304 YNF40-03103-1 曲轴皮带轮螺栓 6 110±10N.m
2 Y10005077 YNF40-030024 皮带轮压板 1
3 Y10006549 YNF40-030047 曲轴皮带轮 1
4 HB09150 GB-T119.1_6h8X10 销 1 6h8X10
5 Y10009287 YNF45-030034 曲轴总成 1
6 Y038 YNF40-03001-1 上主轴瓦 4
7 Y0301 YNF40-03003-1 曲轴止推上瓦 1
8 Y039 YNF40-03002-1 下主轴瓦 5
9 HA05920 YN6205-Z 轴承 1
10 Y10011487 YNF45-030043 飞轮齿圈总成 1
11 Y10005325 YNF40-040002 飞轮螺栓 8 115±5N m
12 Y10001069 YNF40-030010 飞轮螺栓防松垫片 4
13 HB09133 GB-T119.1_8h8X22 销 2 8h8X22
14 Y10007326 YNF45-030025 从动盘总成 1
15 Y10010831 YNF45-030042 离合器盖及压盘总成 1
16 HB065P GB-T97.1_10 平垫 8 Φ10
17 HB064T GB-T93_10 弹垫 8 Φ10
18 HB03071 GB-T5783_M10X25-10.9 螺栓 8 70±3N.m
19 HB09125 GB-T119.1_10h8X20 销 1 10h8×20
