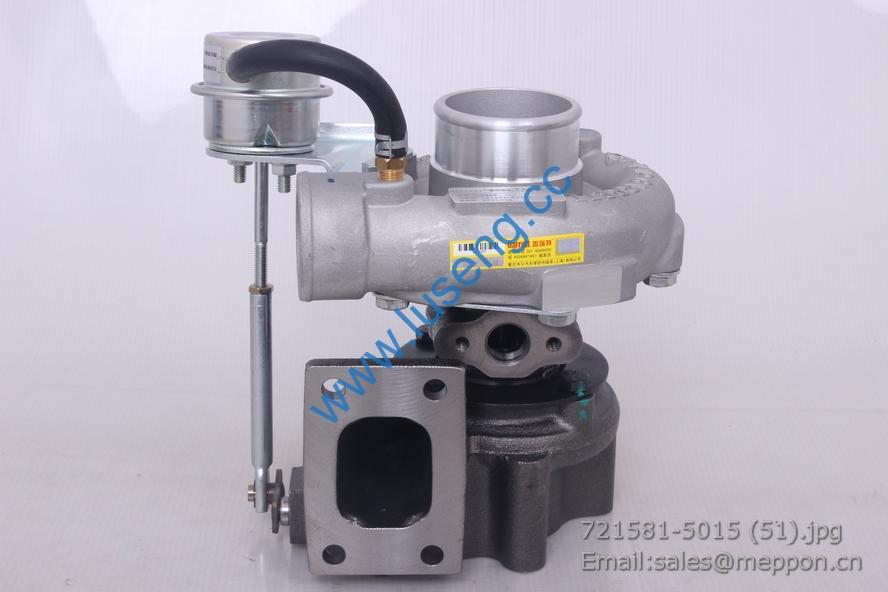

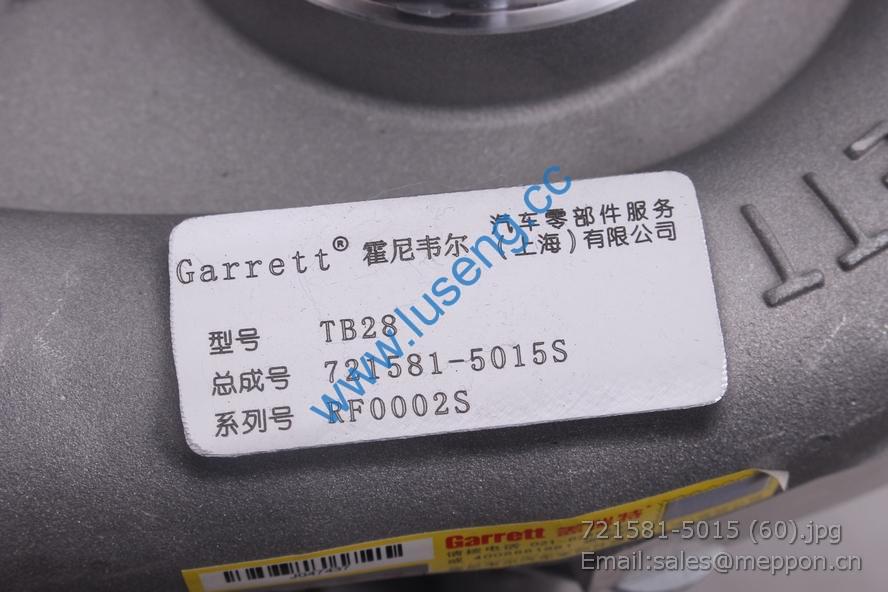

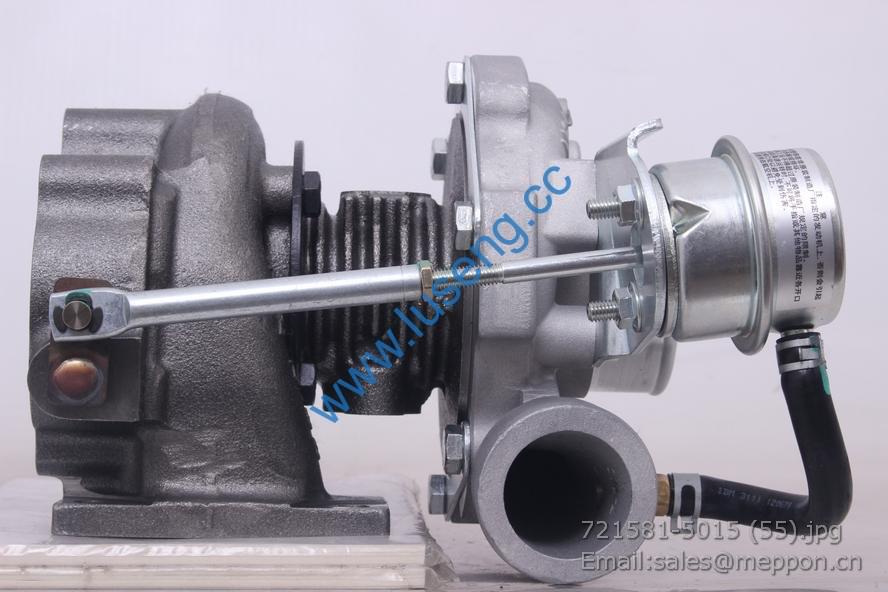

D08NC-1118100A-135 YUCHAI turbocharger 721581-5015S Truck D08NC-1118100

24 HA03126 4100QB-03-016 垫片 Washer 4
25 HA0354 4100QB-03-017 缸盖罩螺母 Cylinder head cover nut 4
26 GB 867-1986 铆钉 Rivet 2×6 4
27 HA03304 YN33-03.03-006A 铭牌 Nameplate 1
28 495QA-03.01-006 碗形塞 Pug φ24 6

1
HA04064
YN38CRD-04-002 第一道气环 Top Compression ring 4 用于 YN38CRD
2 YN38CRD-04-003 第二道气环 No.2 compression ring 4 用于 YN38CRD
3 YN38CRD-04.01 Ⅰ型钢质油环 Oil scraping ring seaming 4 用于 YN38CRD
4 HA04073 YN38CRD-04-001A 活塞 Piston 4
5 HB071 GB893.1-1986 挡圈 Retainer ring 35 8
6 4102QBZL-04.02-004 连杆衬套 Connecting rod bush 4
7
HA04047
4102QBZL-04.02-001 连杆体 Connecting rod 4
8 4100QBZ-2-04.02-002A 连杆盖 Connecting rod cover 4
9 4100QBZ-2-04.02-003A 连杆螺栓 Connecting rod bolt 8
10 HA04035 4102QBZL-04-006 连杆轴瓦 Connecting rod liner 8
11 HA03011 YN38CRD-03302-1 活塞销 Piston pin 1

1 GB/T 5783 螺栓 Bolt M10X25-8.8 10
2 GB 93 垫圈 Sping washer 10 10
3 GB/T 97.1 垫圈 Washer 10 10
4 HA05183 325Y 离合器盖总成 Clutch cover assy φ300 1
5 HA05184 325CC 从动盘总成 Driven plate assy φ300 1
6 HA05148 5100QB-05-010-CW 飞轮紧固螺栓 Flywheel fixing bolt M12×1.25-32 6
7 HA0586 4102QB-05-009A 防松垫片 Anti-loose washer 3
8 GB/T 119.2 销 Pin 10 h8×20 2
9 HA05356 YN33CR-05-008-AK 飞轮 Flywheel 1
10 HA05215 4102QBZ-05-007 飞轮齿圈 Gear ring of flywheel 1
11 HA05920 YN6205-Z 轴承 Bearing 6203-RZ 1
12 HA05274 4102QBZL-05-012 垫套 Pad bush 1
13 HA05059 4102QB-05-006C 曲轴 Crankshaft 1
14 HA051 4100QB-05-001-NJ 曲轴皮带轮螺栓 Crankshaft belt pulley bolt 1
15 HA05329 YN33CR-05-003 曲轴皮带轮 Crankshaft belt pulley 1
16 HA05172 4100QBZL-05-004 前挡油圈 Front oil retainer 1
17 HA05429 4100QB-05-005B 曲轴正时齿轮 Crankshaft timing gear m=2.5 1
18 GB/T 1096 键 Key 10×8×60 1
19 GB/T 119.2 销 Pin 10 h8×25 1

HA01483 4102QBZ-01.03F 机油泵总成部件 Oil pump assy 1
1. 4100QB-01.03C.03 滤网焊合件 Strainer module 1
2. GB/T 5782-2000 螺栓 Bolt M8×65 4
3. GB93-1987 垫圈 Spring washer 8 4
4. 4100QB-01.03-007 集滤器壳 Strainer cover 1
5. 4100QB-01.03C-009 吸油管 Oil intake pipe 1
6. 4102QBZ-01.03A-006 机油泵体 Oil pump body 1
7. 4102QBZ-01.03F.02 主动轴合件 driving shaft 1
8. 4100QB-01.03C-005 纸垫 Gasket 2
9. 4102QBZ-01.03-003 从动齿轮轴 Helical gear with shaft 1
10. 4100QBZ-01.03-004 机油泵盖 Cover ,oil pump 1
11. 4100QB-01.03D.05 中间接杆合件 Mid-Connecting rod seaming 1
12. GB119-86 销 Pin A4×26 1
13. 4102QBZ-01.03F-002 机油泵从动齿轮 Oil pump driven gear 1
14. GB119-86 销 Pin B5×12 2
15. GB/T 91-2000 开口销 Split pin 4×35 1
16. GB/T 308-89 钢球 Steel ball 10 1
17. 2100QB-01.03A-014 弹簧 Spring 1
18. 2100QB-01.03A-015 弹簧座 Spring seat 1
19. 2100QB-01.03A-016 调整垫片 Adjusting shim 1
20. 4100QB-01.03-008A 纸垫 Gasket 2
21. HA0137A01 4100QBZ-01.03.04A 机油泵出油管焊合件 Oil outlet pipe assy 1
22. GB/T 5783-2000 螺栓 Bolt M8×20 4
