Description

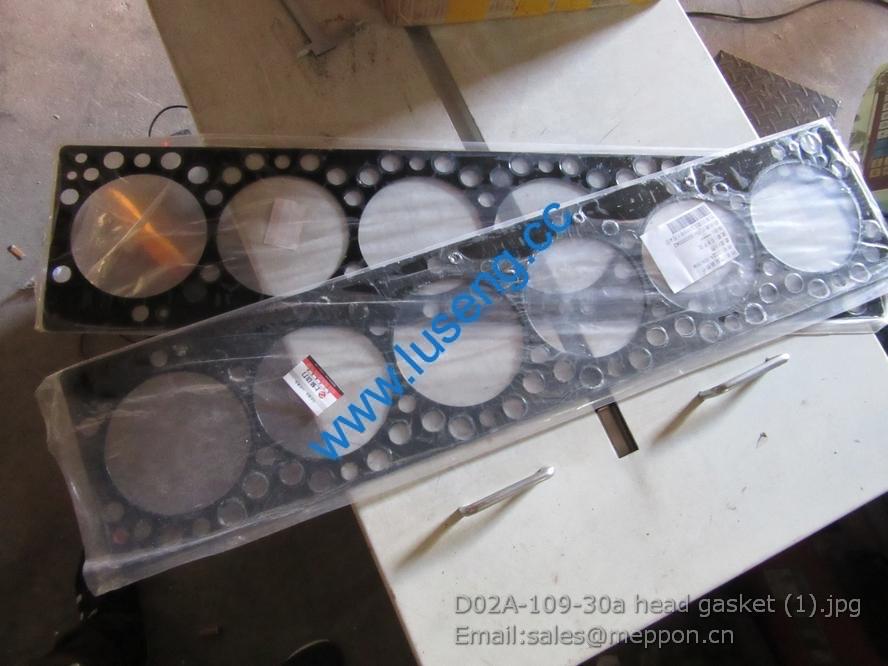

D02A-109-30a head gasket 4110000036015 SP101279

1 13028355 1 飞轮分总成
2 01110847 6 内六角圆柱头螺钉 Inner hexagon screw
3 01125638 1 弹性圆柱销 Spring dowel pin

1 614020009 1 飞轮齿圈 Flywheel ring gear
2 13022725 1 飞轮 Flywheel

1 01110673 6 内六角圆柱头螺钉 Inner hexagon screw
2 01178365 6 弹簧垫圈 Spring washer
3 13032456 1 曲轴皮带轮 Crankshaft belt pulley
4 12273121 1 减振器 Vibration damper

1 01110847 4 内六角圆柱头螺钉 Inner hexagon screw
2 12160534 1 垫片 Gasket
3 12190647 1 轮毂 Hub

1 13057365 6 活塞连杆结合组 Piston and Connecting Rod Group
2 13025625 6 连杆瓦组件 Connecting Rod Bearing Set

1 13057366 6 活塞总成 Piston assembly
2 12160519 6 连杆组件 Connecting rod assembly

1 13026703 6 梯形桶面环 Taper-sided ring
2 13022349 6 锥面环 Conical ring
3 13026702 6 梯桶钢油环 Oil ring
4 13038398 6 活塞 Piston
5 12151395 12 弹性挡圈 Circlip
6 12152378 6 活塞销 Piston pin

1 13055259 6 连杆体 Connecting rod body
2 12159598 6 连杆衬套 Connecting rod bushing
3 01154162 6 弹性圆柱销 Spring dowel pin
4 13053282 6 连杆盖 Connecting rod cover
5 12167047 12 连杆螺栓 Connecting rod bolt
