Description

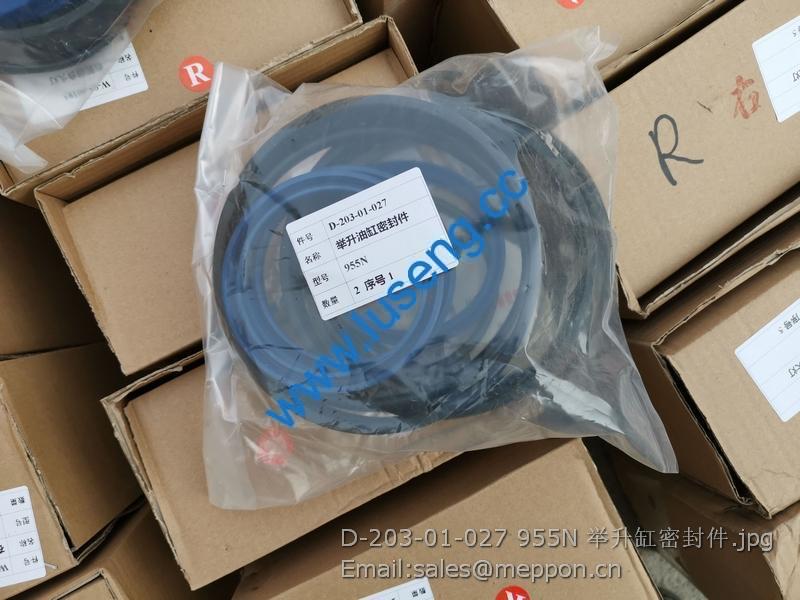

D-203-01-027 955N LIFT CYLINDER KITS CHANGLIN
4021000036 滚动轴承GB297-32216 BEARING GB297-32216
29070000351 调整螺母 ADJUSTING NUT
29070000391 轴承座 CAGE
29070001301 垫圈 WASHER
29070009521 螺栓 GB5782-M22*100EpZn-10.9 BOLT GB5782-M22*100EpZn-10.9
29070000401 锁紧片 LOCKING LEAF
4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
4011000597 螺栓GB5786-M10*1*20EpZn-8.8 BOLT GB5786-M10*1*20EpZn-8.8
4021000032 滚动轴承GB297-31314 BEARING GB297-31314
29070013141 主动螺旋伞齿轮（左） SPIRAL BEVEL GEAR PINION
4021000027 滚动轴承GB283-NUP2307 BEARING GB283-NUP2307
4015000020 挡圈GB894.1-35-65Mn RETAINER RING GB894.1-35-65Mn
29070000331 锥齿轮垫片 WASHER THRUST
29070000341 锥齿轮 GEAR PINION
29070000411 十字轴 CROSS AXLE
29070013221 半轴齿轮 HALF AXLE GEAR
29070000461 固定销 PIN
29070000381 半轴齿轮垫片 HALF AXLE GEAR SPACER
29070009501 螺栓 BOLT
29070012611 从动螺旋伞齿轮（右） SPIRAL BEVEL GEAR PINION
29070000361 差速器右壳 RIGHT CASE DIFFERENTIAL MECHANISM
29070009511 垫圈 WASHER
4013000198 螺母GB6176-M16*1.5-10 NUT GB6176-M16*1.5-10
29070009491 螺栓 BOLT
29070000431 差速器左壳 LEFT CASE DIFFERENTIAL MECHANISM
4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 BOLT GB5786-M12*1.25*40EpZn-10.9
4013000072 螺母GB889.2-M12*1.25EpZn-10 NUT GB889.2-M12*1.25EpZn-10
29080001021 后传动轴 REAR DRIVING SHAFT
29080008131 螺栓 BOLT
4015000340 防松垫圈NL12 WASHER NL12
29080001062 前传动轴 FRONT DRIVE SHAFT
29070012681 行星轮垫片 WASHER
29070012701 挡环 BAFFLE RING
29070012711 行星齿轮 PLANETARY GEAR
4090000158 滚针GB309-P6*54-GCr15 ROLLER PIN GB309-P6*54-GCr15
29070000081 轮辋螺母 RIM NUT
29070000621 轮辋螺栓 RIM BOLT
29090008481 半轴 DIFFERENTIAL AXLE
4013000203 螺母GB6171-M20*1.5EpZn-10 NUT GB6171-M20*1.5EpZn-10
4015000030 垫圈GB93-20-65Mn WASHER GB93-20-65Mn
29070001241 轮毂 HUB WHEAL
29090008521 行星轮架 PLANET CARRIER
4090000008 钢球GB308-9.525-GCr15 STEEL BALL GB308-9.525-GCR15
29070012691 行星齿轮轴 SHATE
29070012481 磁性螺塞 PLUG
4090000006 钢球GB308-17.462-GCr15 STEEL BALL GB308-17.462-GCr15
29070009161 定位块 LOCK BLOCK
29070012671 太阳轮 GEAR-SUN
4015000022 挡圈GB894.1-52-65Mn RETAINER RING GB894.1-52-65Mn
29070007621 盖 COVER
4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8
4014000016 螺钉GB70-M10*1*20EpZn-8.8 SCREW GB70-M10*1*20EpZn-8.8
29070015581 圆螺母 plate
29090009561 内齿圈 GEAR RING
4041000020 O形圈LGB308-440*3.5 O-RING LGB308-440*3.5
4021000037 滚动轴承GB297-32221 BEARING GB297-32221
4021000033 滚动轴承GB297-32024 BEARING GB297-32024
29070001261 隔套 ISOLATED BUSHING
4030000047 骨架油封HG4-692-PD150*180*16 OIL SEAL HG4-692-PD150*180*16
29070001271 垫片 SPACER
29070001231 油封端盖 COVER OF OIL SAL
4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn
4011000298 螺栓GB5782-M8*45EpZn-8.8 BOLT GB5782-M8*45EpZn-8.8
