Description

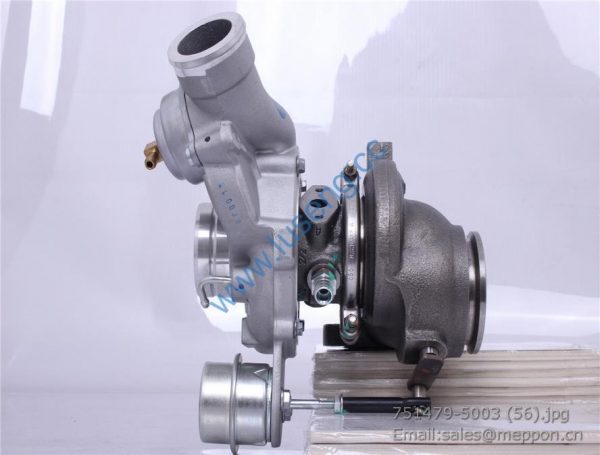

BL18T-1118010 turbocharger 751479-5003S

1 330-1308010 φ490风扇总成 φ490Fan assembly 1
2 Q1841018TF2 螺栓M10X18 Bolt M10X18 4

1 Q150B1670TF2 螺栓M16X70 Bolt M16X70 2
2 Q40316 垫圈16 Washer16 2
3 Q40116 垫圈16 Washer16 2
4 G2100-1600401A 飞轮壳 Flywheel case 1
5 Q1841230TF2 螺栓M12X30 Bolt M12X30 2
6 E0301-1005065 轴承衬垫 Bearing lining 1
7 GB/T276-6205-2RS 深沟球轴承 Ball bearing 1
8 E2100-1005360 飞轮及齿圈组件 Flywheel and gear assembly 1
9 A70A-1005044A 飞轮螺栓 Flywheel bolt 7
10 J4105-1600740B 离合器从动盘组件 Clutch spider assembly 1
11 A3028-1600202A 定位销 Locating pin 2
12 J4105-1600100A 离合器盖及压盘部件 Clutch cover and pressure plate parts 1
13 Q150B1260TF2 螺栓M12X60 Bolt M12X60 8
14 Q40312 垫圈12 Washer12 8
15 L3800-1600411 堵塞 Block 1
16 Q1841650TF2 螺栓M16X50 Bolt M16X50 2
17 G0100-1600412 垫圈 Washer 2
18 Q1840616 螺栓M6X16 Bolt M6X16 8
19 B3000-1600021 盖板 Cover plate 2

1 A3512-3407003 进油接头 Oil inlet joint 1
2  A3512-3407017 锁紧螺母 Retaining nut 1
3 Q/YC149-27 复合式密封垫圈27 Seal ring 27 1
4 G0413-3407100 转向泵 Steering pump 1
5 Q150B1030 螺栓M10X30 Bolt M10X30 2
6 Q40310 垫圈10 Washer10 2
7 Q40110 垫圈10 Washer10 2
8 G3220-3407070 转向泵出油接头组件 Steering pump oil outlet joint assembly 1
9 231-3407013 传动套 Drive sleeve 1
