Description

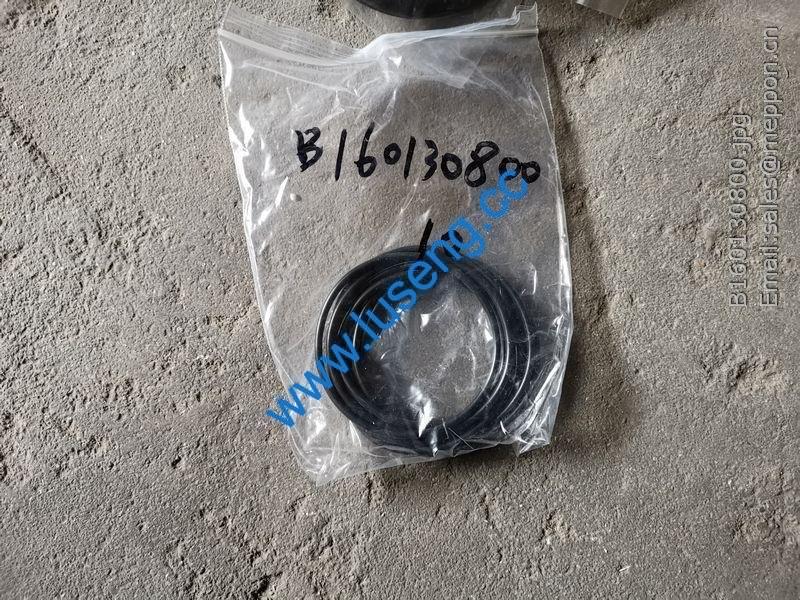

B160130800 o-ring sem
4021000015 滚动轴承GB276-6022 BALL BEARING GB276-6022
3030900112 销 PIN
3030900103 直接档受压盘 BACK DISK FOR THE SECOND SPEED
4013000162 螺母GB6170-M8-8 NUT GB6170-M8-8
4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn
2030900020 直接档主动片 DRIVE DISK ASS’Y FOR THE SECOND SPEED
3030900104 直接档轴 SHAFT FOR THE SECOND SPEED
3030900106 直接档从动片 DRIVEN DISK FOR THE SECOND SPEED
4011000723 螺栓GB5783-M8*20-8.8 BOLT GB5783-M8*20-8.8
4021000016 滚动轴承GB276-6204 BALL BEARING GB276-6204
4015000023 挡圈GB894.1-65-65Mn RIONG SNAP GB894.1-65-65Mn
3030900114 碟形弹簧 DISH SPRING
3030900107 直接档活塞 PISTION
3030900113 密封环 SEALING RING
3030900115 销 PIN
3030900109 直接档油缸 CYLINDER ASS’Y FOR THE SECOND SPEED
29050016321 中间输出齿轮 OUTPUT GEAR OF THE INTER-SHAFT
4021000024 滚动轴承GB276-6312 BALL BEARING GB276-6312
3030900111 旋转油封 SEAL
4090000011 低碳钢丝GB343-1.6*200-SZ STEEL WIRE GB343-1.2*1200-SZ
3030900105 螺栓 BOLT M12X1.25X100
4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn
3030900110 旋转油封 SEAL
29050020931 调整垫片 shim
29050020511 调整垫片 shims
29050020501 调整垫片 shims
29050020491 调整垫片 shims
4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8
4015000384 防松垫圈NL10 WASHER NL10
29050011161 垫圈 WASHER
4030000536 O形圈GB3452.1-122*3.55G O-RING GB3452.1-122*3.55G
29050017481 油封座 OIL SEAL SEAT
4021000024 滚动轴承GB276-6312 BALL BEARING GB276-6312
29050017461 输出轴 OUTPUT SHAFT
29050016311 输出轴齿轮 GAER OF THE OUT SHAFT
29050016931 挡圈 CIRCLIP
4030000768 密封圈GB13871.1-FB070095-F SEALING RING GB13871.1-FB070095-F
29050018381 O型圈 O-Ring
29050021561 输出法兰总成 Flange assembly
4013000066 螺母GB889.2-M33*1.5-8 NUT GB889.2-M33*1.5-8
29070000221 垫圈 WASHER
29050012751 调整垫片 ADJUST SHIM
29050012741 调整垫片 ADJUST SHIM
29050012731 调整垫片 ADJUST SHIM
29050017471 密封套 PACKET
29050021541 输出法兰总成 FLANGE ASSEMBLY
4110001514 变速操纵机构LG953N SPEED CHANGE OPERATING GEAR LG953N
4011000137 螺栓GB16674-M12*20EpZn-8.8 BOLT GB16674-M12*20EpZn-8.8
