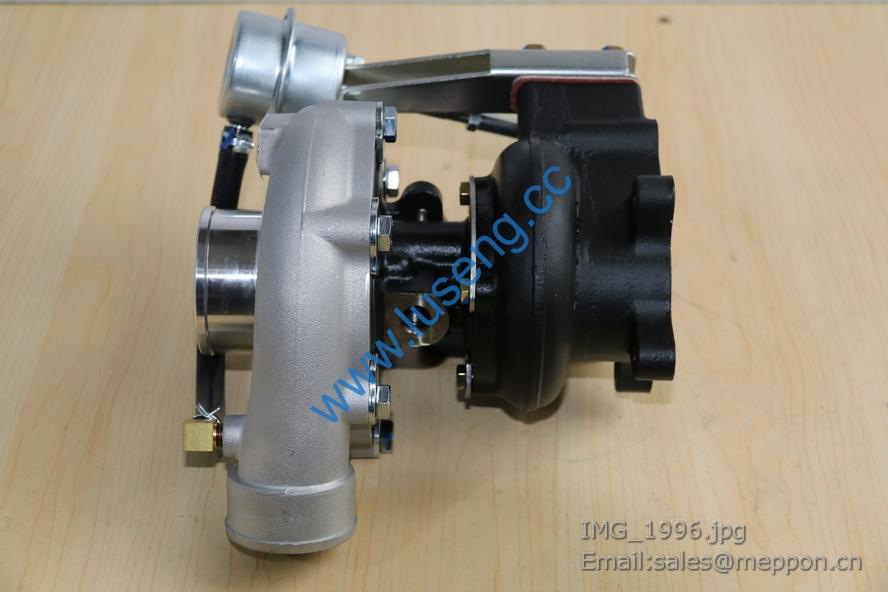

AF0A00314 4TD80-08010 TURBOCHARGER

1 A30-1004016 第一道气环 First gas ring 6 易损件 EWP
2 A30-1004017 第二道气环 Second gas ring 6 易损件 EWP
3 A30-1004030 油环总成 Oil ring assembly 6 易损件 EWP
A30-1004016* 活塞环组件 Piston ring subassembly 1 包含(including)1、2、3
4 A3100-1004015A 活塞 Piston 6 易损件 EWP
5 A30-1004019 活塞销 Piston pin 6
6 Q43040 挡圈 40 Retainer ring 12 易损件 EWP
7 A3000-1004200 连杆部件 Connecting rod part 6
8 A30-1004005 连杆轴瓦 Connecting rod bearing shell 12 易损件 EWP

1 A3100-1005019A 曲轴 Crankshaft 1
2 YC24-B1226 圆柱销 12×26 Straight Pin 12×26 1
3 A30-1005054 主轴瓦（上） Main bearing shell (upper) 7
4 6105Q-1005058A 曲轴止推片 Crankshaft thrust plate 4
5 A3100-1005018 扁销 Flat pin 2
6 A3100-1005021B 曲轴正时齿轮 Crankshaft timing gear 1
7 A3206-1005200B 硅油减振器部件 Silicone oil vibration damper parts 1
8 L3000-1005017 组合垫圈 Compound washer 6
9 A3100-1005034A 皮带轮螺栓 Belt pulley bolt 6
10 J4218-1005016A 附加皮带轮 Additional belt pulley 1
11 Q1841035TF2 螺栓 M10X35 Bolt M10X35 4
12 A30-1005055 主轴瓦（下） Main bearing shell (lower) 7

1 A3100-1006015B 凸轮轴 Camshaft 1
2 GB/T1096-C0818 键 C8×8 Key C8×8 1 易损件 EWP
3 A3000-1006005A 隔圈 Space ring 1
4 A3000-1006003A 凸轮轴止推片 Camshaft thrust plate 1
5 Q40308 垫圈 8 Washer 8 2
6 Q150B0820TF2 螺栓 M8×20 Bolt M8×20 2
7 6105Q-1006021 凸轮轴正时齿轮 Camshaft timing gear 1
8 630-1006019 垫圈 Washer 1
9 Q1841235TF2 螺栓 M12×35 Bolt M12×35 1
