Description

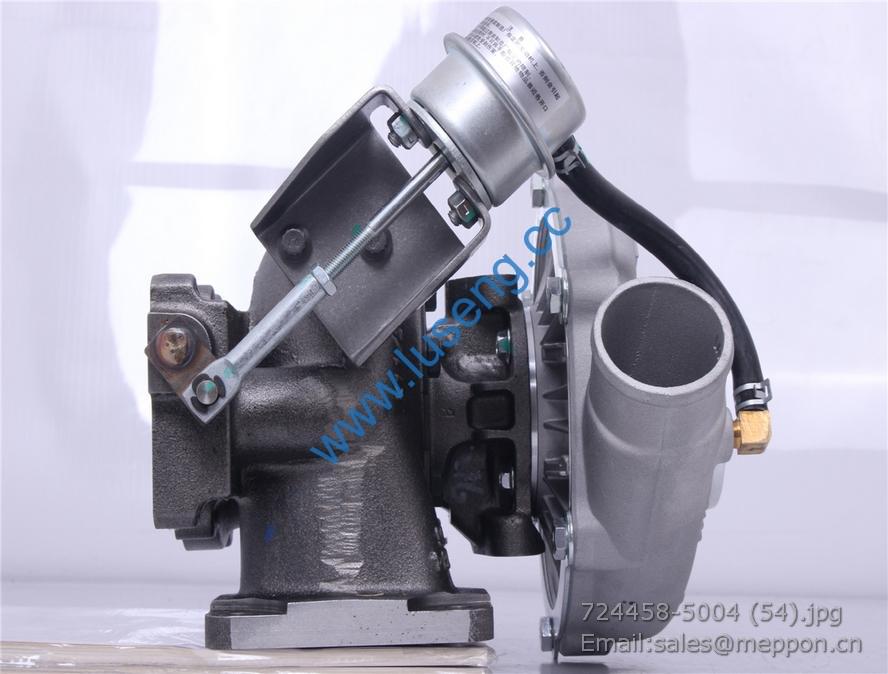

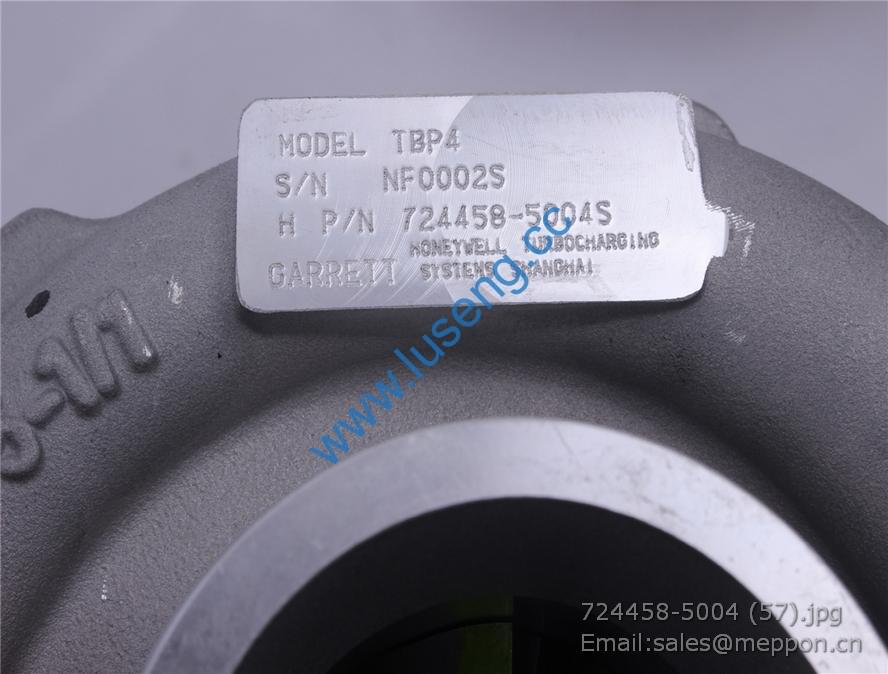

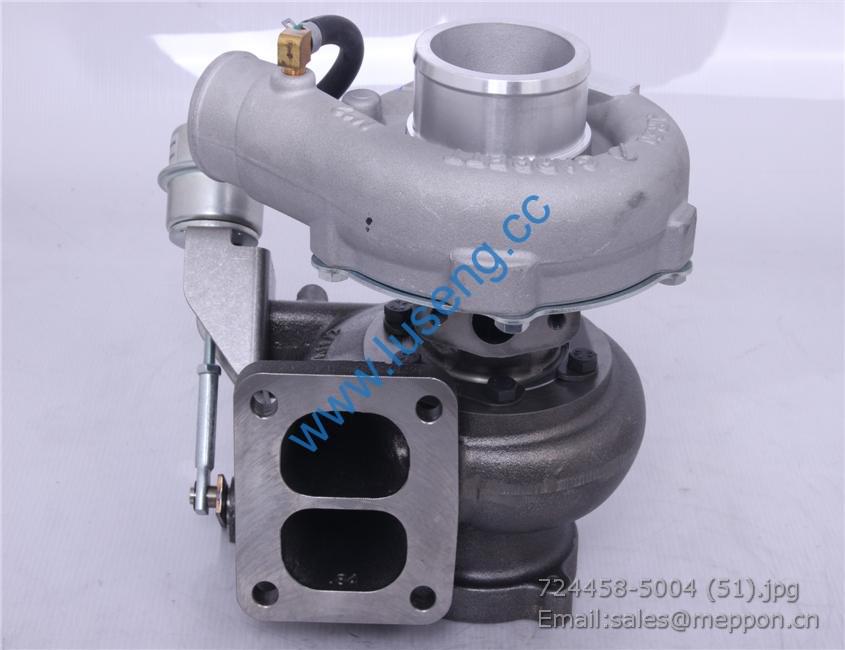

A4100-1118010-135 YUCHAI turbocharger 724458-5004S

1
B3200-1003181B 前气缸盖
Front cylinder head 1

J4200-1003180B 前气缸盖组件
Front cylinder head subassembly 1
2 J4200-1003173 进气门座圈 Intake valve seat ring 6 易损件 EWP
3
6105QA-1003088 气缸盖定位销套
Cylinder locating pin cover 4
4 J4200-1003174 排气门座圈 Exhaust valve seat ring 6 易损件 EWP
5
B3000-1003001A 气缸盖垫片
Cylinder head gasket 1 易损件 EWP
6 630-1003081 水套堵塞 Water jacket plug 12
7
330-1003018B 缸盖短螺栓（Ⅱ）
Cylinder head short bolt（Ⅱ） 6
8
330-1003014B 气缸盖短螺栓
Cylinder head short bolt 6 易损件 EWP
9
330-1003012B 气缸盖螺栓
Cylinder head bolt 8 易损件 EWP
10 6105QA-1003001 螺套 Screw sleeve 6
11 6105QA-1003019A 喷油器铜套 Injector copper sleeve 6
12 YC208-C02360S O 形圈 3.55X23.6 O-ring3.55X23.6 6 易损件 EWP
13 430-1007018 气门导管 Valve guide pipe 12
14 6105QA-1003086 铝堵（一） Aluminum plug (Ⅰ) 6
15 6105QA-1003087 铝堵（二） Aluminum plug (Ⅱ) 6
16
330-1003013B 气缸盖长螺栓
Cylinder head long bolt 2 易损件 EWP
17
B3200-1003191B 后气缸盖 Rear cylinder head 1

J4200-1003190B 后气缸盖组件 Rear cylinder head subassembly 1

18
J3200-1003022 缸盖罩垫片
Cylinder cover gasket 2 易损件 EWP
19 B3220-1003051A 气缸盖罩 Cylinder cover 1
20 630-1003021A 气缸盖罩（I） Cylinder cover （I） 1

21 430-1003070C
压紧螺母组件
Tightening nut subassembly 6
22
B3000-1003032 加机油口垫片
Oil filler gasket 1 易损件 EWP
23
Q150B0616 螺栓 M6X16
Bolt M6×16 3
24
Q40306 垫圈 6
Washer 6 3 易损件 EWP
25
Q40106 垫圈 6
Washer 6 3 易损件 EWP
26
150-1003040F 加机油口盖组件
Oil filler cover 1 易损件 EWP
27
B3000-1003042 加机油口座
Oil filler seat 1
28
330-1003019B 气缸盖长螺栓（I）
Cylinder head bolt (long) 4
29
6105QA-1003017D 垫圈
Washer
6
30
6105QA-1003017F 垫圈（二）
Washer(Ⅱ) 6
31
6105Q-1003085 吊耳
Lifter 2
