Description

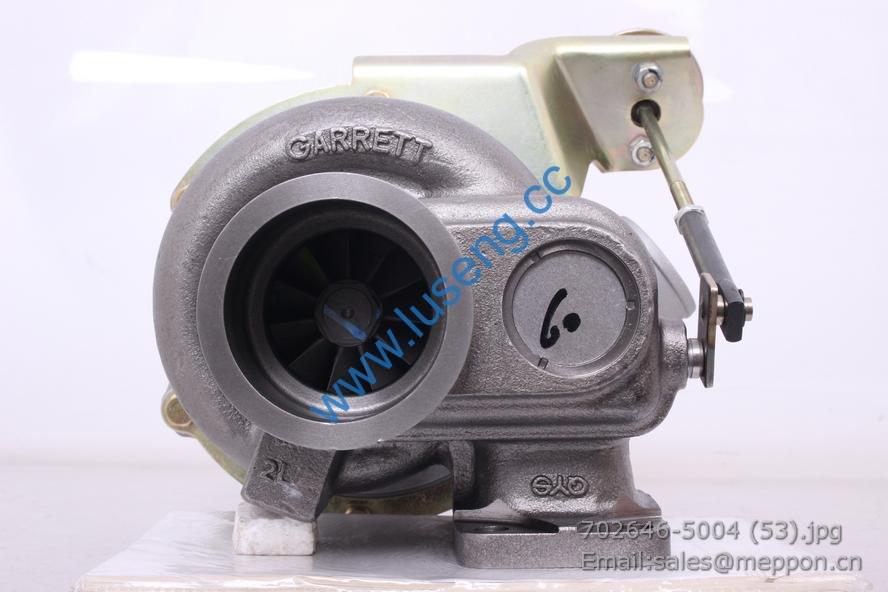

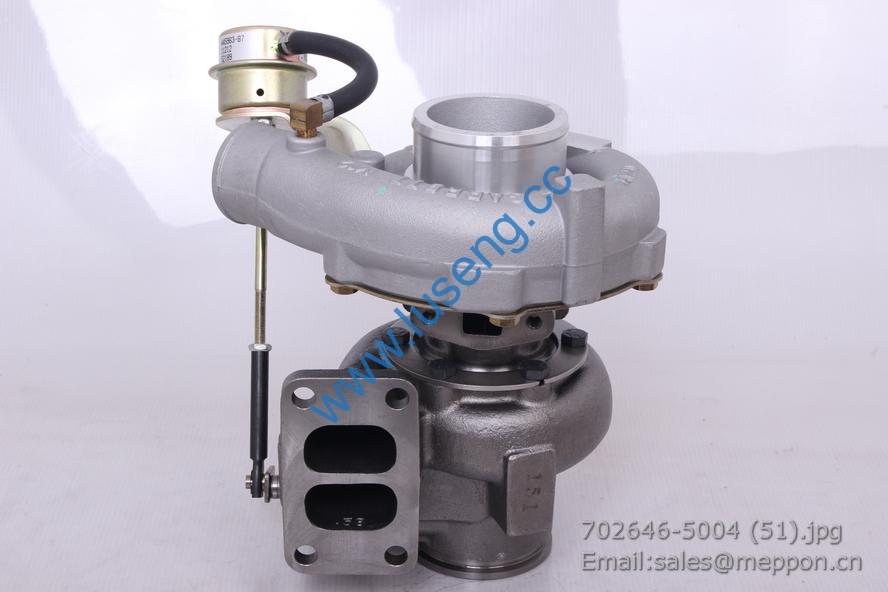

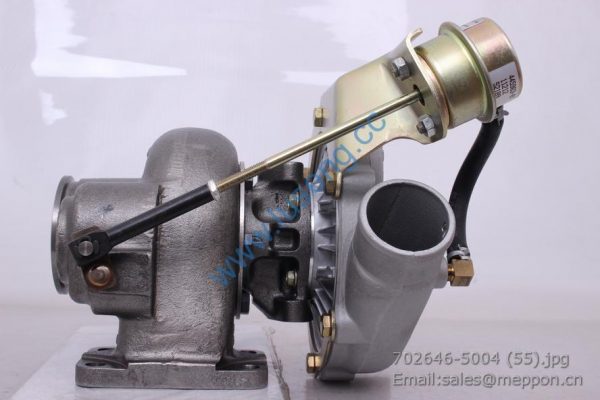

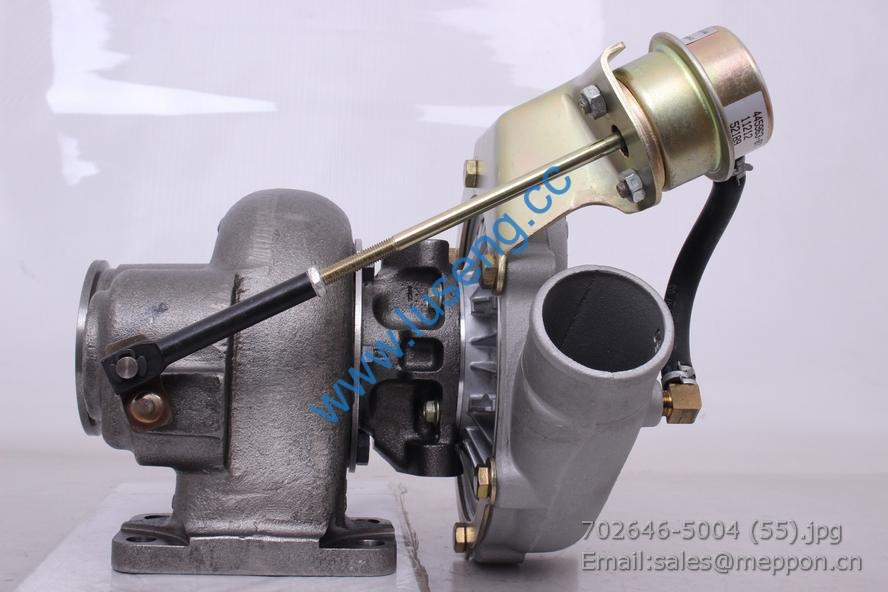

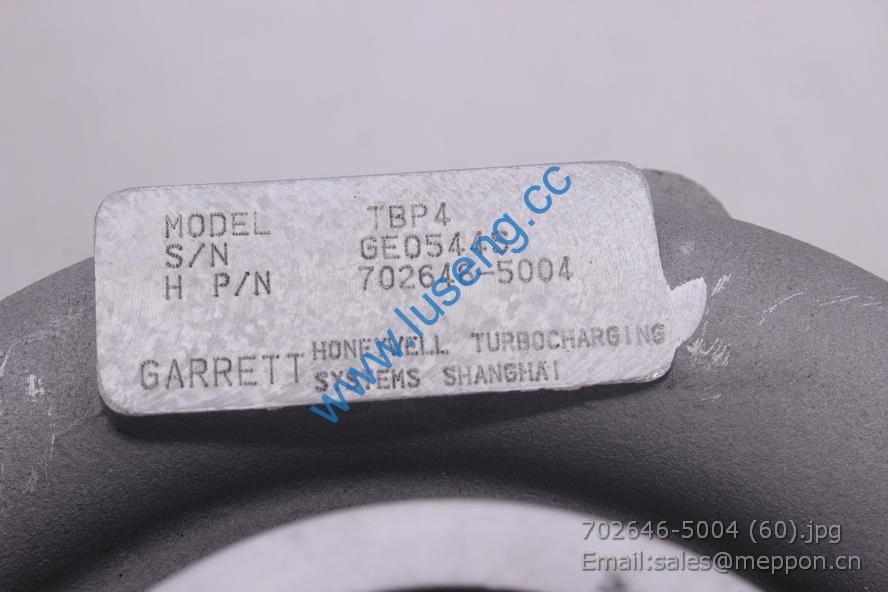

A3960503 DONGFENG turbocharger 702646-5004S Truck

1 150-1003040F 加机油口盖组件 Oil filler cap assembly 1
2 E0200-1003023A 密封圈 Seal ring 1 易损件 EWP
3 E05FA-1003240A 气缸罩组件 Cylinder cover groupware 1
4
530-1003051
气缸盖罩垫片
Cylinder head cover
gasket 1 易损件 EWP
5 330-1003014B 气缸盖短螺栓 Cylinder cover short bolt 13
6 530-1003052 气缸盖螺栓(长) Cylinder head bolt (long) 5
7 530-1003019 镶套 Bushing fitting 4
8 E0200-1003171B 气缸盖 Cylinder cover 1

E0200-1003171B* 气缸盖组件
Cylinder cover
subassembly 1
9 E0201-1003056 后吊耳 Rear lifter
10 Q40112 垫圈 12 Washer 12 2 易损件 EWP
11 Q40312 垫圈 12 Washer 12 2 易损件 EWP
12 Q150B1225 螺栓 M12X25 Bolt M12X25 2
13 530-1003051E 气缸盖垫片 Cylinder head gasket 1 易损件 EWP
14 150-1002021 碗形塞片 Bowl-type plug 1
15 530-1003054A 吊耳 Lifter 1
16 Q1841220 螺栓 M12X20 Bolt M12X20 2
17 Q61906 螺塞 NPT 3/4 Screw plug 4
18 Q1840816 螺栓 M8X16 Bolt M8X16 10

1 530-1004016 第一道气环 Compression ring Ⅰ 4 易损件 EWP
2 530-1004017A 第二道气环 Compression ring Ⅱ 4 易损件 EWP
3 530-1004030 油环总成 Oil ring assembly 4 易损件 EWP
530-1004016* 活塞环组件 Piston ring assembly 1
4 E0400-1004001A-501 活塞 Piston 4 易损件 EWP
E0400-1004001A 活塞 Piston 4 选装 Optional
E0400-1004001A-378 活塞 Piston 4 选装 Optional
5 430-1004019 活塞销 Piston pin 4
6 Q43040 挡圈 40 Retaining ring 8
7 E0200-1004200 连杆部件 Connecting rod parts 4
8 530-1004019 连杆轴瓦 Connecting rod bearing 8 易损件 EWP
