Description

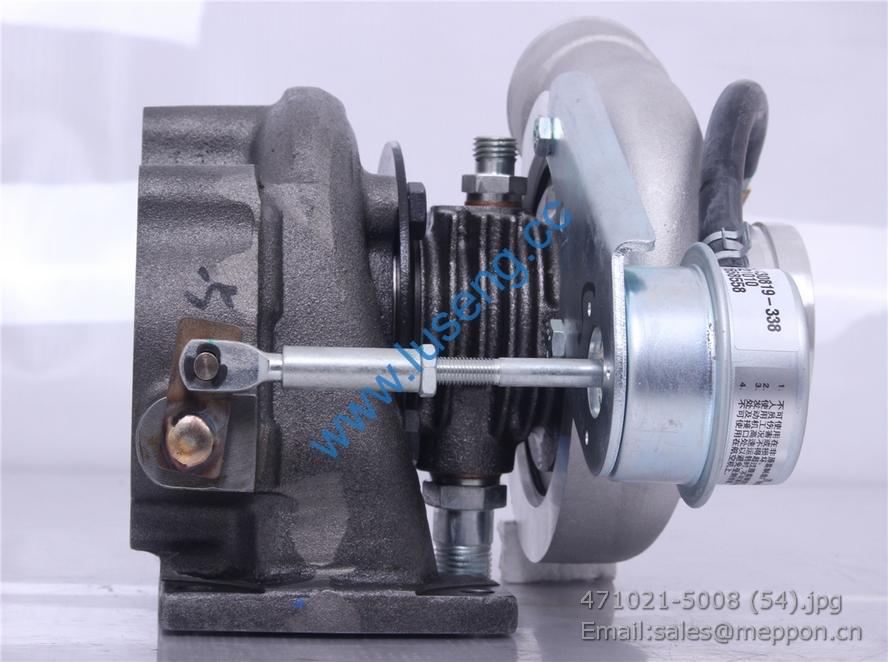

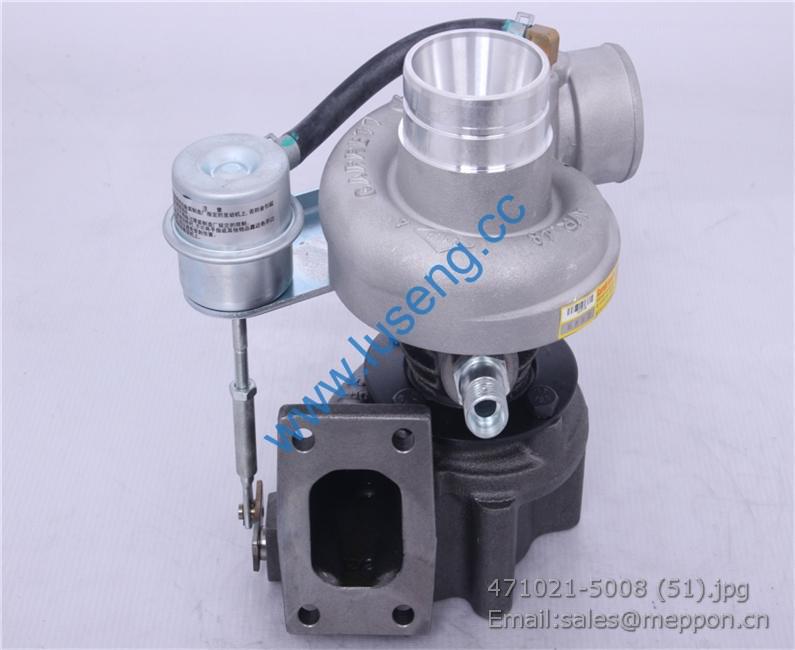

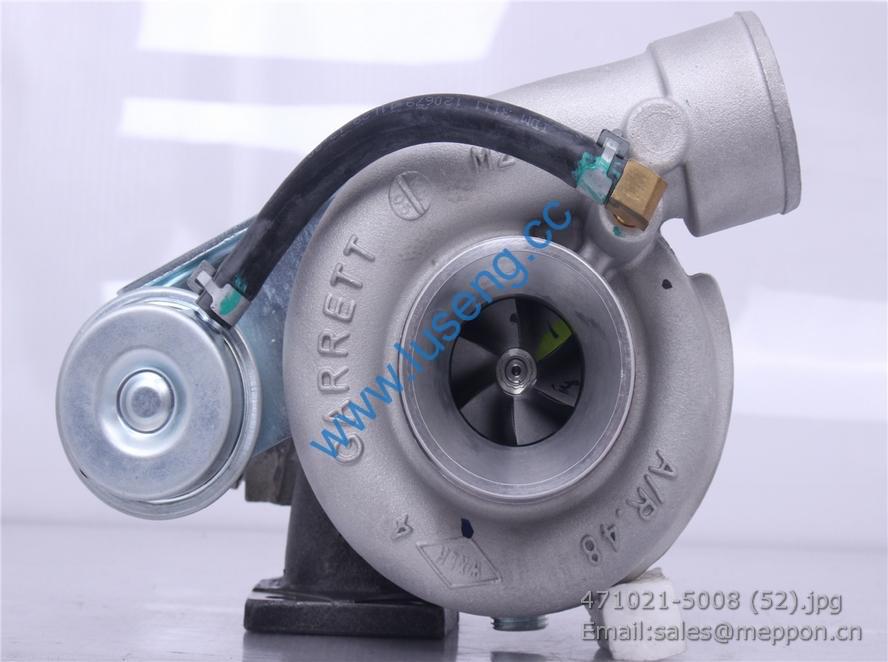

99431084 NAVECO turbocharger 471021-5008S Daily (China)

1 Q1840825TF2 螺栓 M8X25 Bolt M8X25 4
2 D0132-1005016 附加皮带轮 Add-belt pulley 1
3 430-1005052E 曲轴皮带轮紧固螺栓
Tightening bolt of crankshaft belt
pulley
1
4 530-1005018B 曲轴头垫片Ⅰ Crankshaft end shaft Ⅰ 1
5 D30-1005030B 减振器组件 Damper subassembly 1
6 530-1005017A 皮带轮隔套 Belt pulley spacer sleeve 1
7 530-1005024 垫片 Washer 1
8 YC208-B04370F O 形圈 2.65X43.7 O-ring 2.65X43.7 1 易损件 EWP
9 D30-1005022 机油泵驱动齿轮 Fuel pump drive gear 1
10 6105Q-1005021 曲轴正时齿轮 Crankshaft timing gear 1
11 BJ100-1005023 曲轴平键 Crankshaft key 1 易损件 EWP
12 Q5511245 键 12X45 Key 12X45 1 易损件 EWP
13 D30-1005055 下轴瓦（窄） Lower bearing(narrow) 4 易损件 EWP
14 D30-1005054 上轴瓦（窄） Upper bearing (narrow) 4 易损件 EWP
15 6105Q-1005058A 曲轴止推片 Crankshaft thrust plate 1 易损件 EWP
16 D30-1005057 下轴瓦（宽） Lower bearing(wide) 1 易损件 EWP
17 D30-1005056A 上轴瓦(宽) Upper bearing(wide) 1 易损件 EWP
18 D0800-1005001A 曲轴 Crankshaft 11
19 YC24-B1226 圆柱销 12X26 Pin 12X26 1
20 D30-1005023 隔套 Spacer sleeve 1

1 Q150B1238TF2 螺栓 M12×38 Bolt M12×38 1
2 Q40312 垫圈 12 Lock Washer 12 1
3 630-1006019 垫圈 Washer 1
4 D30-1006021 凸轮轴正时齿轮 Camshaft timing gear 1
5 GB/T1096-C0828 键 C8×28 Key C8×28 1 易损件 EWP
6 D30-1006001 凸轮轴 Camshaft 1
7 Q/YC1820820TF2 螺栓 M8×20 Bolt M8×20 2
8 Q40308 垫圈 8 Lock Washer 8 2
9 D30-1006016 凸轮轴止推片 Camshaft thrust plate 1
10 6105Q-1006017 隔圈—凸轮轴正时齿轮 Spacer-camshaft timing gear 1
