Description

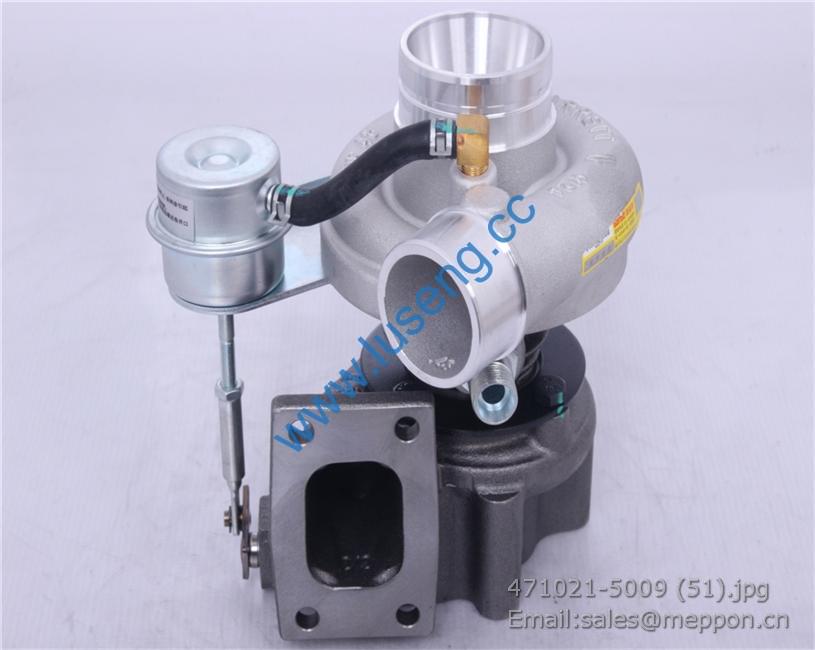

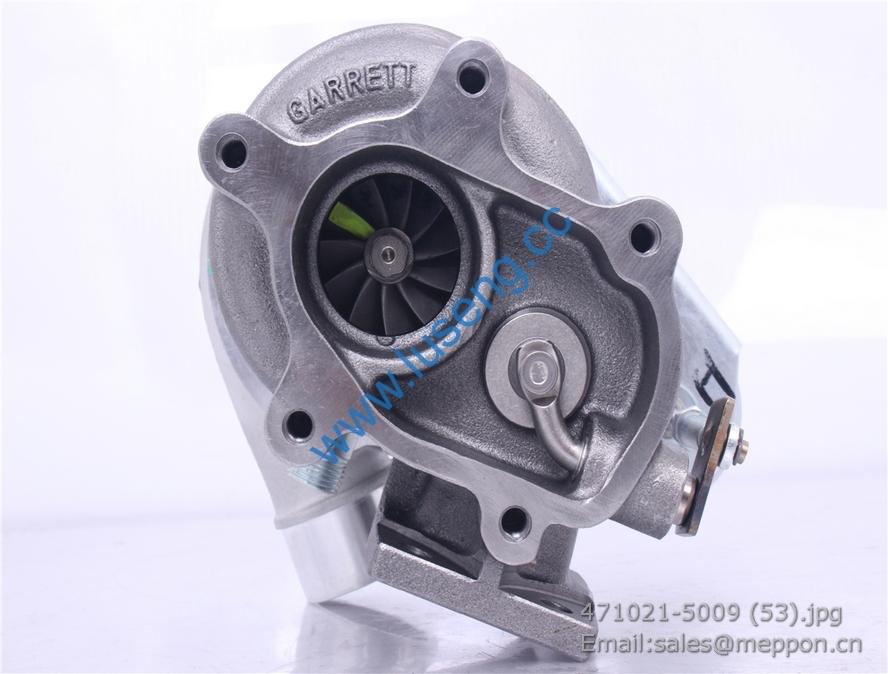

99431083 IVECO turbocharger 471021-5009S Daily 35.10
1 6105Q-1007054 锁紧螺母 Locking nut 8 易损件 EWP
2 6105QA-1007053 气门调整螺钉 Valve adjusting screw 8 易损件 EWP
3 J3100-1007143 进气门摇臂 Intake valve rocker arm 4 易损件 EWP
4 J3100-1007144 进气门摇臂衬套 Intake valve rocket arm bushing 8 易损件 EWP
5 D30-1007036 六角头螺栓 Hexagon head bolt 4
6 A30-1007092 垫圈 Washer 4
7 D30-1007033 摇臂轴座（二） Rocker arm shaft bracket （Ⅱ) 3
8 J3100-1007153 排气门摇臂 Exhaust valve rocker arm 4 易损件 EWP
9 6105QA-1007031 摇臂轴垫圈 Rocker arm shaft washer 6
10 6105QA-1007032 气门摇臂轴弹簧 Valve rocker arm spring 3 易损件 EWP
11 D30-1007031 摇臂轴垫圈 Rocker arm shaft washer 2
12 D30-1007002 推杆 Tappet 8 易损件 EWP
13 D30-1007001A 挺柱 Push rod 8 易损件 EWP
14 430-1007021 排气门座 Exhaust valve seat ring 4 易损件 EWP
15 D30-1003103B 排气门 Exhaust valve 4 易损件 EWP
16 430-1007018 气门导管 Valve guide pipe 8 易损件 EWP
17 D30-1003161 气门弹簧下座 Valve spring under seat 8 易损件 EWP
18 D30-1003111B 进气门 Intake valve 4 易损件 EWP
19 6105Q-1007023 气门内弹簧 Valve inside spring 8
20 430-1007019 进气门座 Intake valve seat ring 4 易损件 EWP
21 430-1007016A 气门杆油封 Valve stem seal 8 易损件 EWP
22 D30-1003118 排气门弹簧 Exhaust valve spring 8 易损件 EWP
23 D30-1003116 气门弹簧上座 Valve spring upper seat 8 易损件 EWP
24 150-1007021E 气门锁夹 Valve lock 16 易损件 EWP
25 6105QA-1007042 碗形塞片 Bowl type plug 2
26 Q43125 挡圈 25 Retainer ring 2 易损件 EWP
27 D30-1007101 摇臂轴 Rocker arm shaft 1
28 D30-1007075A 油管焊接件 Oil pipe welded joint 1
29 D30-1007034 摇臂轴座（一） Rocker arm shaft bracket （Ⅰ) 1
30 6105Q-1007073 接头螺栓 Union bolt 2
1 Q1201030 螺柱 M10×30 Stud M10×30 4
2 Q40110 垫圈 10 Washer 4
3 Q40310 垫圈 10 Washer 4
4 Q340B10 螺母 M10 Nut 4
5 Q/YC198-20 螺塞 M20×1.5 Screw plug 2
6 Q/YC149-20 复合式密封垫圈 20 Compound seal washer 2
7 1530-1008105C 进气接管垫片 Intake connecting pipe gasket 1
8 D0200-1008101E 进气管 Intake pipe 1
9 Q150B0870 螺栓 M8×70 Bolt 4
10 6105Q-3509013 垫圈 8 Washer 4
11 Q40308 垫圈 8 Washer 12
12 Q150B0838 螺栓 M8X38 Bolt 1
13 Q150B0832 螺栓 M8×32 Bolt 7
14 6105Q-3509013 垫圈 8 Washer 8
15 Q40308 垫圈 8 Washer 8
16 1D30-1008011 进气管垫片 Intake pipe gasket 1
17 D2000-1008250B 排气管垫片组 Exhaust pipe gasket group 4
18 630-1008022A 排气管螺栓 Exhaust pipe Bolt 8
19 D0702-1008204A 排气管 Exhaust pipe 1
20 D0702-1008211 排气管罩 Exhaust pipe cover 1
21 Q1840812 螺栓 M8X12 Bolt 8
22 E0300-1008102B 进气接管 Intake connecting pipe 1
