Description

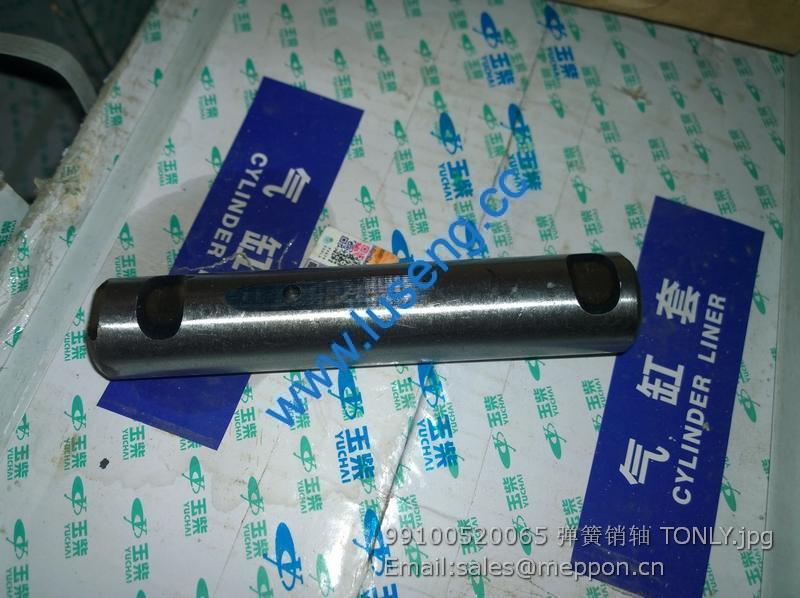

99100520065 SPRING PIN TONLY TL85 TRUCK PARTS
1 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2
2 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2
3 4015000036 垫圈GB93-8-65Mn Spring washer Y 2
4 4110000747005 连接板LGH956L00002-1 Plate Y 2
5 4110000660005 密封圈GB13871-2007 12*28 Sealing ring Y 2
6 4015000324 挡圈GB893.1-28-65Mn Retaining ring Y 2
7 4021000008 滚动轴承GB276-6001 Ball bearing Y 2
8 4110000660006 支架轴LGH956L00002-2 Shaft Y 1
9 4110000660007 支架焊合件LGH956L00002-3 Bracket Y 1
1 4110000172006 手球LGH9530001 Handle ball Y 1
2 4110000659004 手柄组件LGH956L0001 Handle Y 1
3 4110000172008 盒罩LGH9530003 Cover Y 1
4 4110001680004 轴组件LGH9530004 Shaft Y 1
5 4110000659005 螺母M10 GB6185.1 Nut Y 1
6 4110000746003 M16尼龙帽LGH9530016 M16 nyong bonnet N 1
7 4110000172027 M36螺母LGH9530005 Nut Y 1
8 4110000746004 M5螺栓LGH9530006 Bolt Y 7
9 4110000172028 953铝盒LGH9530007 Box Y 1
10 4190002767015 固定板LGH9530008 Plate Y 1
11 4110000172029 M8×1.25-30螺栓LGH9530009 Screw Y 2
12 4110002042020 弹垫Φ8 TD-002 Washer Y 2
13 4110002042019 平垫Φ8 PD-002 Washer Y 2
14 4110000172030 六方头销轴LGH9530010 Pin Y 1
15 4110000172031 齿条LGH9530012 Gear rack Y 1
16 4110001680006 齿轮套组件LGH9530011 Gear sleeve Y 1
17 4110000172032 卡簧（∮10）KH-003 Retaining ring Y 1
18 4110001680007 盒盖LGH9530013 Cover Y 1
19 4110001680008 齿条筒LGH9530014 Rack sleeve Y 1
20 4110000659006 软轴总成LGHR956L0001 Control cable Y 1
21 4110000659007 软轴支架总成LGHR956L0002 Bracket Y 1
22 4110000659008 连接杆LGHR956L0003 Retainer Y 1
1 29070012021 车轮总成 Wheel N 2
2 4190000237 轮辋LG19.50/2.5-25 Rim Y 2
3 4110000582 轮胎 23.5-25-18PR-L3 Tyre Y 2
4 29070012561 A510前驱动桥总成 Front axle Y 1
5 29070011032 螺栓 Screw Y 8
6 4013000193 螺母GB889.2-M30*2EpZn-10 Nut Y 8
1 29070012881 轮边减速器 Hub reduction N 2
2 4120001739 制动钳 Brake caliper Y 4
3 4120001740 放气嘴 Nipple Y 8
4 29070012581 半轴 Drive shaft Y 2
5 4110000818 透气嘴 Nozzle Y 1
6 4011000494 螺栓GB5786-M16*1.5*45EpZn-8.8 Bolt Y 14
7 4015000098 垫圈GB93-16-65Mn Spring washer Y 14
8 29070012591 前主传动总成 Final drive Y 1
9 29070012861 前桥壳总成 Front axle casing Y 1
10 29070000101 螺栓 Bolt Y 12
11 4015000030 垫圈GB93-20-65Mn Spring washer Y 32
12 29070000071 制动盘 Disc brake Y 2
13 29070000081 轮辋螺母 Nut Y 20
14 4011000130 螺栓GB5786-M20*1.5*50EpZn-8.8 Bolt Y 20
15 29070012481 磁性螺塞 Plug Y 2
16 29070012721 前桥标牌 Name plate Y 1
17 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
18 4011000941 螺栓GB5785-M20*1.5*60EpZn-10.9 Screw Y 4
19 29070014552 防护板 Guard plate Y 2
20 29070011121 垫圈 Washer Y 4
