Description

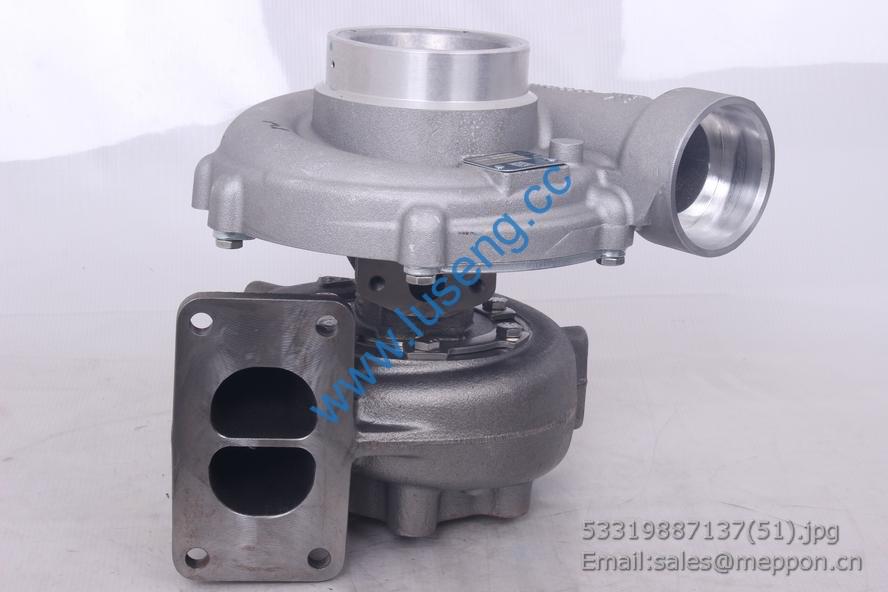

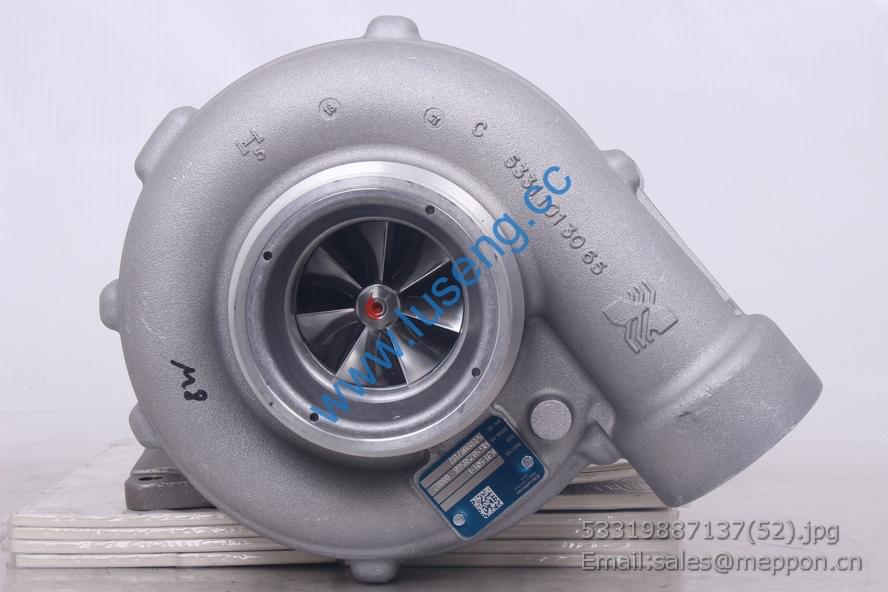

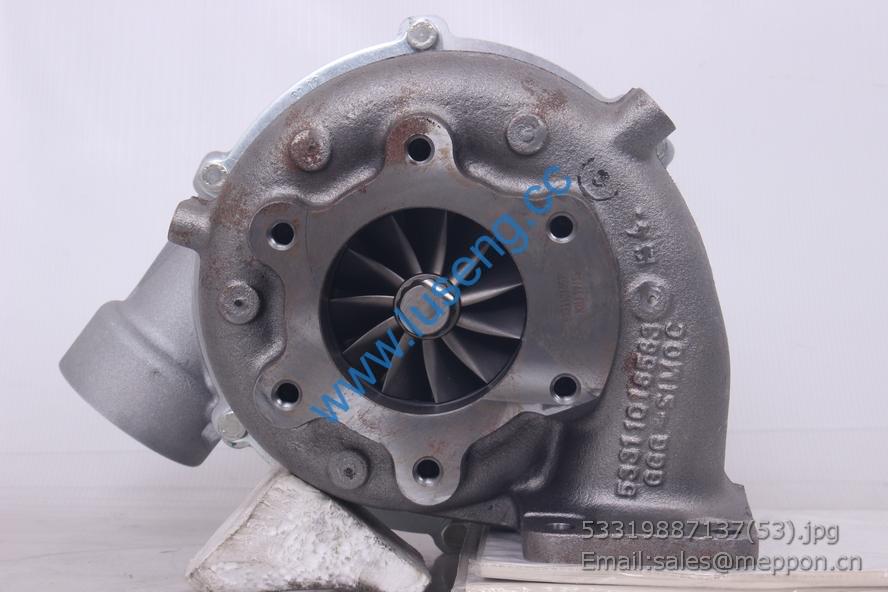

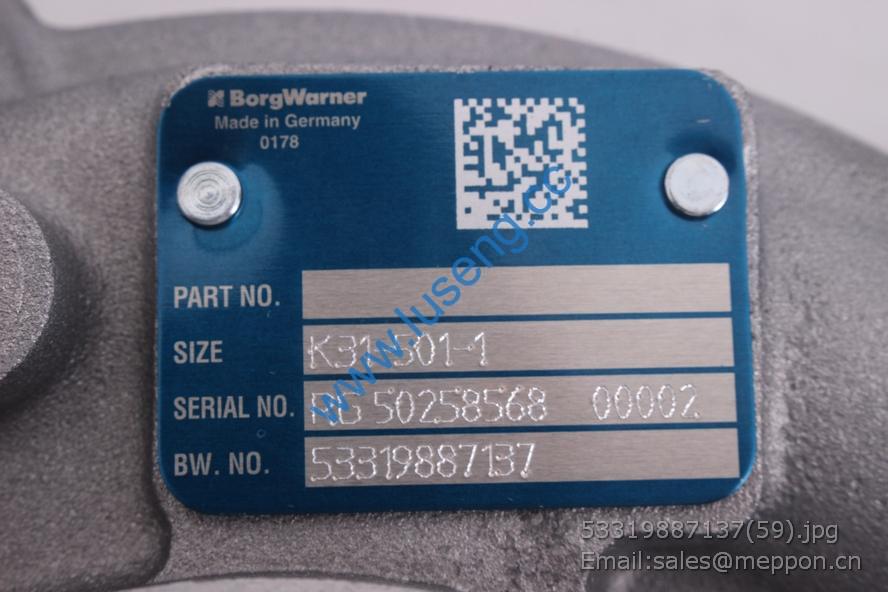

90961699 Mercedes-Benz turbocharger

1 N85-01002A 加油口盖 Cover of oil-added hole 1
2 QC495Q(DI)-11002 气缸盖罩 Cylinder head cover 1
3 QC495Q(DI)-11003 气缸盖罩密封圈 Sealed ring cylinder head cover 1

1 N85T-12008 盖板 Cover 2
2 N85T-12007 盖板垫片 Washer of cover 2
3 QC490Q(DI)-12004 齿轮室垫片 Room of gear cover 1
4 QC490G(DI)-12018 发电机支架 Generator bracket 1
5 GB/T5783-2000 螺栓M10×25 Bolt M8×25 2
6 GB/T97.1-2002 垫圈10 Washer 10 2
7 N85-18004 喷油泵连接盘垫片Jointing part gasket of fuel pump 1
8 QC495T -12003 齿轮室 Room of gear 1
9 R175A-01211-1 加机油口盖 Cap 1
10 QC495T-12002 齿轮室盖垫片 Gasket of gear room cover 1
11 QC495T-12001 齿轮室盖 Gear room cover 1
12 QC490Q(DI)-12005 提前器盖垫片 Gasket of advanced device cove 1
13 QC490Q(DI)-12006 提前器盖 Advanced device cover 1
14 GB/T276-1994 轴承106 Bearing 106 2
15 QC495T-12004 液压泵齿轮 Oil pump gear 1
16 GB/T5782-2000 螺栓M8×40 Bolt M8×40 4
17 GB/T119.2-2000 销B8×20 Pin B8×20 2
18 QC490Q(DI)-12009 定时指针 Timing pointer 1
19 GB/T9877.1-1988 油封FB60×80×12 Oil seal FB60×80×12 1
20 GB/T93-1987 垫圈8 Washer 8 28
21 GB/T97.1-2002 垫圈8 Washer 8 28
22 GB/T5782-2000 螺栓M8×65 Bolt M8×65 4
23 GB/T6170-1988 螺母M12 Nut M 12 1
24 GB/T97.1-2002 垫圈 12 Washer 12 1
25 QC495T-12105 支架 bracket 1
26 QC495T-12104 隔套 Separate sheath 1
27 QC495T-12103 轴 Axletree 1
28 QC495T-12106 顶杆 Staff 1
29 GB/T276-1994 轴承106 Bearing 106 1
30 QC495T-12101 张紧轮 wheel 1
31 QC495T-12102 轴承盖 Bearing cover 1
32 GB/T898-1998 螺柱M8×30 Bolt M8×30 6

1 GB/T6170-1988 螺母M12 Nut M 12 2
2 GB/T97.1-2002 垫圈 12 Washer 12 2
3 GB/T93-1987 垫圈 12 Washer 12 2
4 GB/T898-1998 螺柱M12×30 Stud M12×30 2
5 QC495T-13001 飞轮壳 Flywheel cover 1
6 GB/T5782-2000 螺栓M12×110 Bolt M12×110 1
