Description

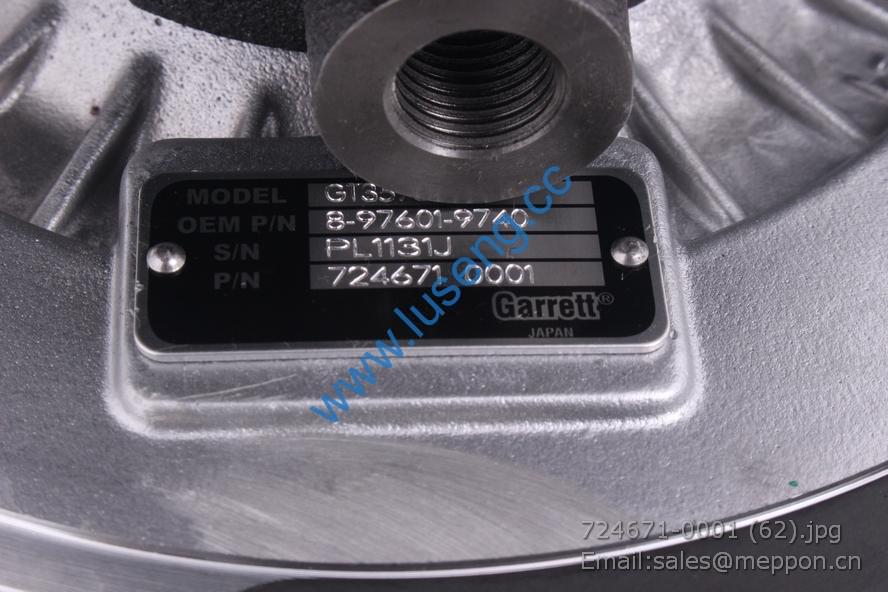

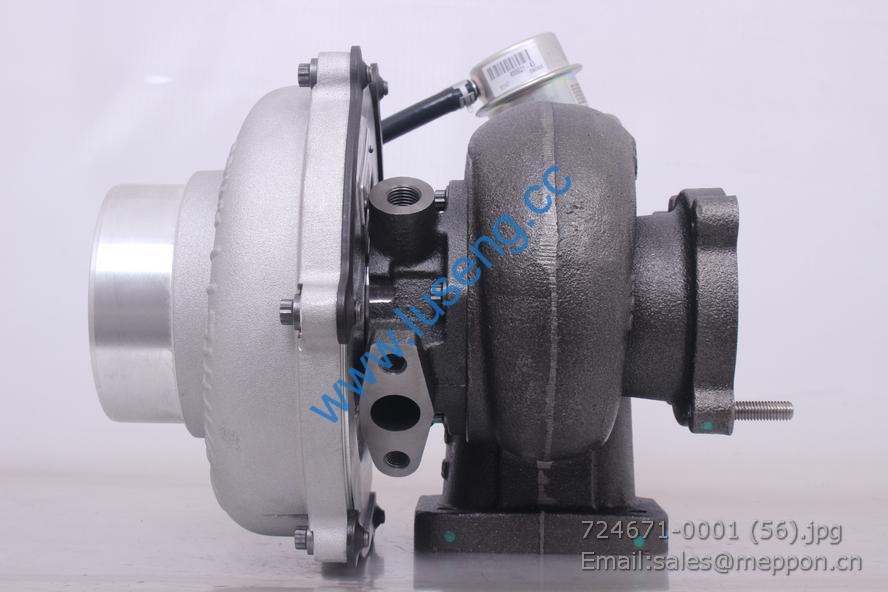

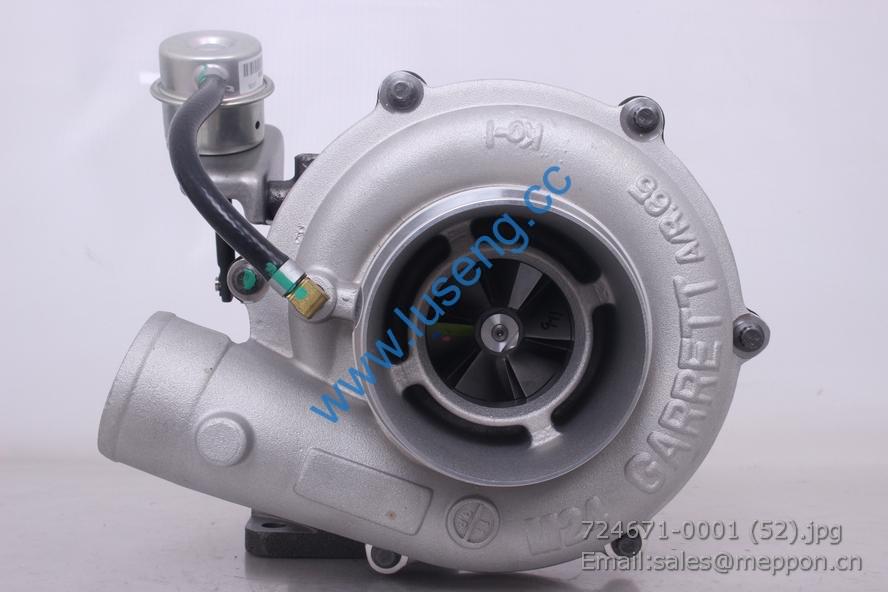

8-97601974-0 ISUZU turbocharger 724671-0001S 724671-5001S Forward

1 GB/T1096-C0828 键 C8×28 Key C8×28 1 易损件 EWP
2 630-1006015A 凸轮轴 Camshaft 1
3 Q150B1238TF2 螺栓 M12×38 Bolt M12×38 1
4 Q40312 垫圈 12 Washer 12 1
5 630-1006019 垫圈 Washer 1
6 6105Q-1006021 凸轮轴正时齿轮 Camshaft timing gear 1
7 Q/YC1820820TF2 螺栓 M8×20 Bolt M8×20 2
8 Q40308 垫圈 8 Washer 8 2
9 6105Q-1006016 凸轮轴止推片 Camshaft thrust plate 1
10 6105Q-1006017 隔圈—凸轮轴正时齿轮 Spacer-camshaft timing gear 1

1 J3000-1003103 排气门 Exhaust valve 6
2 D30-1003111A 进气门 Intake valve 6
3 150-1007021E 气门锁夹 Valve stem locks 24
4 D30-1003116 气门弹簧上座 Valve spring seat(upper) 12
5 430-1007016A 气门杆油封 Valve stem seal 12
6 6105Q-1007023 气门内弹簧 Valve inner spring 12
7 6105Q-1007022 气门外弹簧 Valve outer spring 12
8 6105Q-1007091A 挺杆 Tappet 12
9 6105QA-1007081B 推杆 Push rod 12
10 A3000-1007074 通油管焊接件 Oil pipe weldment 2
11 Q/YC149-8 复合式密封垫圈 8 Compound Seal washer 8 8
12 6105Q-1007073 接头螺栓 Joint bolt 4
13 Q350B12 螺母 M12 Nut M12 6
14 Q340B12 螺母 M12 Nut M12 6
15 A30-1007092 垫圈 Washer 6
16 6105QA-1007035A 摇臂轴座固定螺柱 Fixing stud, rocker-arm shaft seat 6
17 J3100-1007100A 摇臂轴部件 Rocker arm shaft part 2
