Description

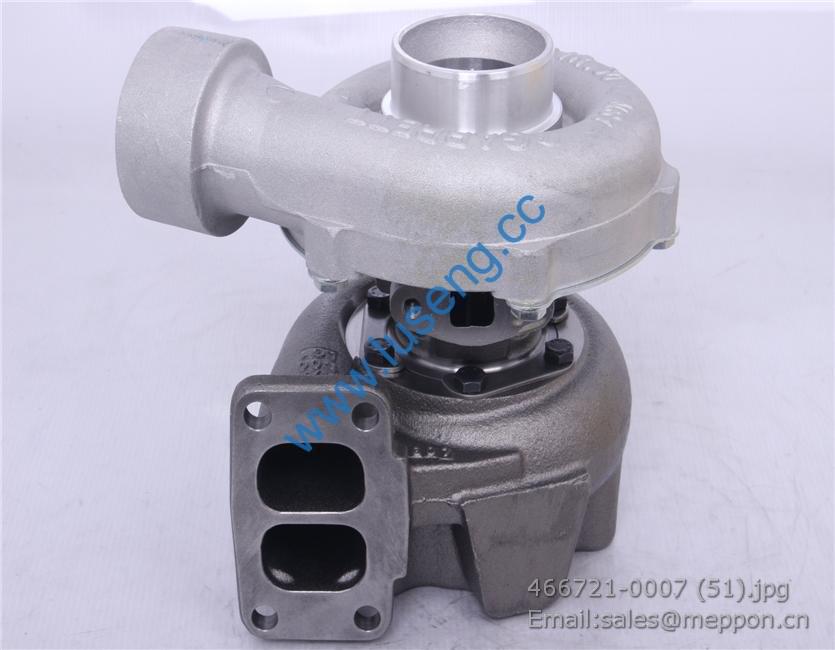

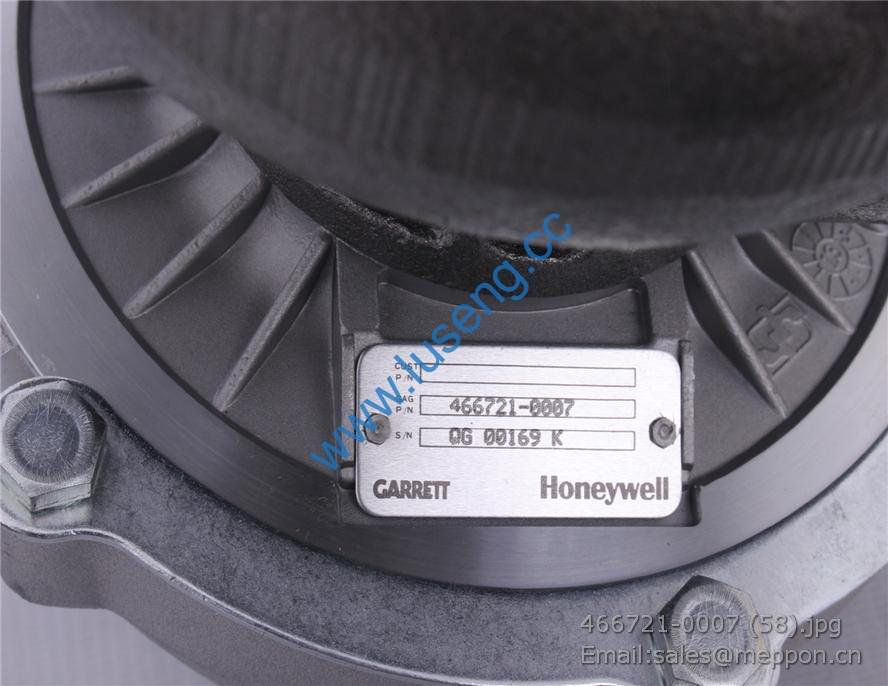

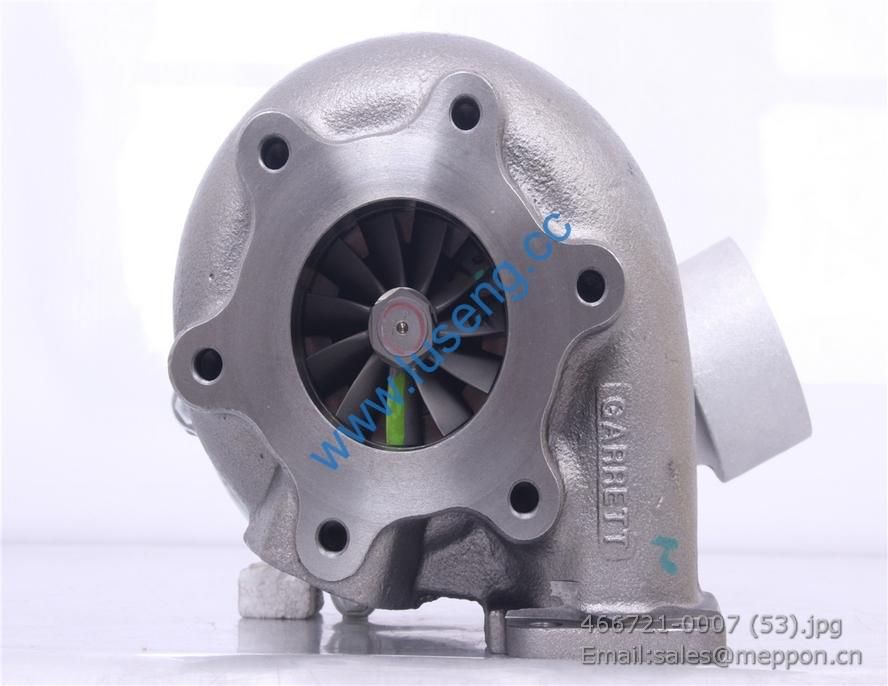

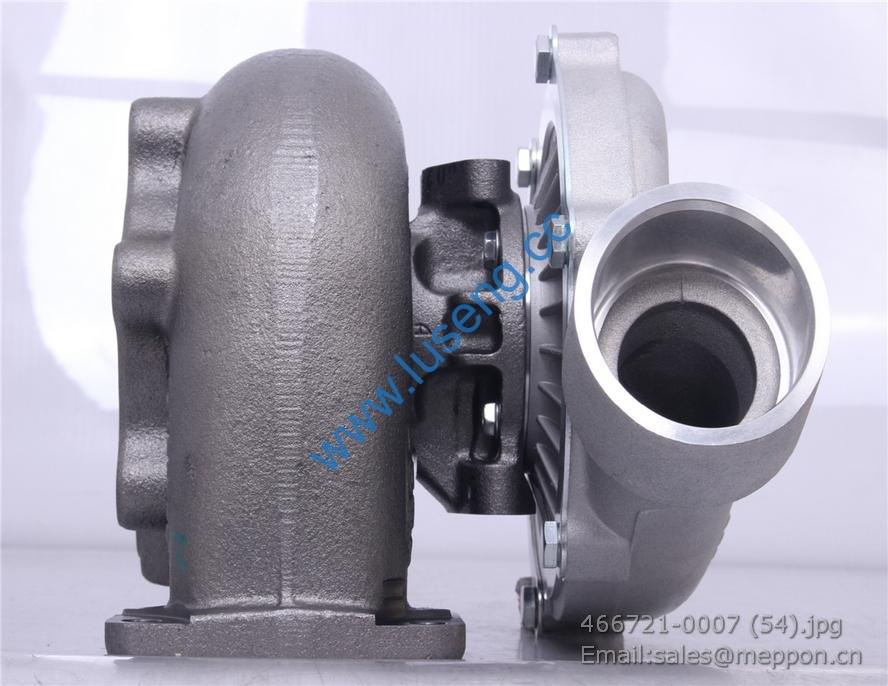

65.09100-7038 DOOSAN turbocharger 466721-0007S 466721-5007S Excavator; forklift

1 150-1003043C 密封圈 Seal ring 1
2 150-1003041F 加机油口盖 Oil filler cap 1
3 330-1003013B 气缸盖长螺栓 Cylinder head bolt(long) 4
4 6105Q-1003085 吊耳 Lifting ear 2
5 D30-1003017 垫圈 Washer 1
6 D30-1003022C 气缸盖罩垫片 Cylinder head cover gasket 1
7 Q614B06 螺塞 NPT3/4 Threaded plug NPT3/4 3
8 D30-1003015B 气缸盖 Cylinder head 1
D30-1003170B 气缸盖 组件 Cylinder head subassembly 1
9
6105QA-1003088 气缸盖定位销套
Cylinder head locating pin
sleeve
2
10 D0300-1003011A 气缸盖垫片 Cylinder head gasket 1 易损件 EWP
11 6105Q-1003081 水套堵塞(一) Water jacket plug(I） 8
12 330-1003018B 缸盖短螺栓（Ⅱ） Cylinder head bolt(short) 4
13 330-1003014B 气缸盖短螺栓 Cylinder head bolt(short) 6
14 D30-1003018 缸盖短螺栓（Ⅱ） Cylinder head bolt(short) 4
15 Q1840816 螺栓 M8×16 Bolt M8×16 10
16 D0708-1003060A 气缸盖罩焊接件 Cylinder head cover weldment 1

1 A30-1004016 第一道气环 Compression ring Ⅰ 4 易损件 EWP
2 A30-1004017 第二道气环 Compression ring Ⅱ 4 易损件 EWP
3 A30-1004030 油环总成 Oil ring assembly 4 易损件 EWP
A30-1004016* 活塞环组件 Piston ring subassembly 4 易损件 EWP
4 D0200-1004015A 活塞 Piston 4 易损件 EWP
5 430-1004019 活塞销 Piston pin 4
6 Q43040 挡圈 40 Retainer ring 8 易损件 EWP
7 E0200-1004202 连杆衬套 Connecting rod bushing 4 易损件 EWP
8 1530-1004051 连杆体 Connecting rod body 4
9 530-1004019 连杆轴瓦 Connecting shaft bushing 8 易损件 EWP
10 530-1004053 连杆盖 Connecting rod body 4
11 530-1004054 连杆螺栓 Connecting rod bolt 8 易损件 EWP
