Description

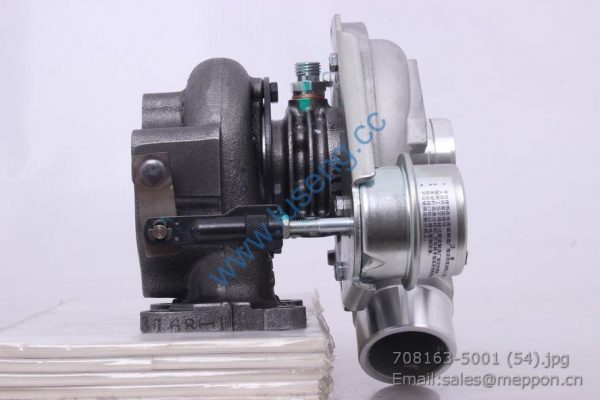

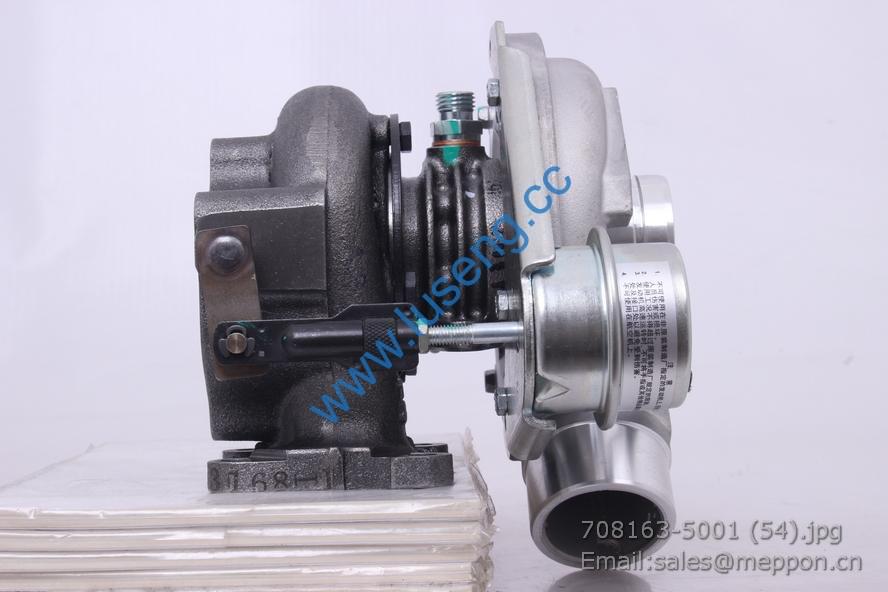

628DB1118001A xichai turbocharger 813185-5008S

1 Q40108 垫圈 8 Washer 8 2
2 Q40308 垫圈 8 Washer 8 4
3 Q150B0816 螺栓 M8X16 Bolt M8X16 4
4 E36F3-1111015 油门开关支架 Throttle switch bracket 1
5 E1202-1111013 油门拉线支架 Throttle cable bracket 1
喷 油 泵 无 正 时 窗 时 装
Installed when there is no
timing window
6 E1102-1111014 油门拉线支架 Throttle cable bracket 1
喷 油 泵 有 正 时 窗 时 装
Installed when there is no
timing window
7 D0110-1111017 螺栓 M6×10 Bolt M6×10 1
8 D0110-1111018 接线座 Wire holder 1
9 Q5001610 销 1.6X10 Pin 1.6X10 1
10 6QA1-1119005 拉簧 Draw spring 1
11 E0401-1111013 油门手柄 Throttle handle 1
12 Q40106 垫圈 6 Washer 6 2
13 Q40306 垫圈 6 Washer 6 2
14 Q150B0614 螺栓 M6X14 Bolt M6X14 2

1 E04F2-1115002 支架 Bracket 1

1 E04F6-1008203A 涡轮后排气接管 Turbine rear exhaust connecting pipe 1
2 Q150B1025TF2 螺栓 M10X25 Bolt M10X25 3
3 Q40110 垫圈 10 Washer10 3
4 E0803-1118003 涡轮出口垫片 Turbine outlet washer 1
5 E0401-1118100-135R 增压器 Turbocharger 1 选装件 optional
E0401-1118100A 增压器 Turbocharger 1 选装件 optional
6 E12F6-1118240B 进油管焊接组件 Fuel inlet pipe weldment groupware 1
7 E0200-1118031A 增压器进油管接头 Turbocharger fuel inlet pipe joint 1
8 Q/YC901-3C12 垫圈 12 Washer 12 1
9 E0800-1118055D 增压器回油接头 Turbocharger fuel return joint 1
10 Q/YC901-3C18 垫圈 18 Washer18 1
11 E0200-1118013 螺母 M8×1 Nut M8×1 4
12 E0800-1118011 双头螺柱 Threaded stud 4
13 1575-1118340 增压器回油管 Fuel return pipe 1
14 YC208-B01700F O 形圈 2.65X17 O-ring 2.65X17 2
15 Q/YC149-14 复合式密封垫圈 14 Compound seal washer 14 1
16 A30-1118021 进油软管接头 Fuel inlet hose joint 1
17 1530-1118012 增压器垫片 Turbocharger gasket 1
18 1575-1118075 支架 Bracket 1
19 Q1201250TF2 螺栓 M12X50 Bolt M12X50 3
20 GB/T6170-12-A1-50 不锈钢螺母 M12 Stainless steel Nut M12 6
21 Q150B1022TF2 螺栓 M10X22 Bolt M10X22 2
22 Q40110 垫圈 10 Washer10 2
