Description

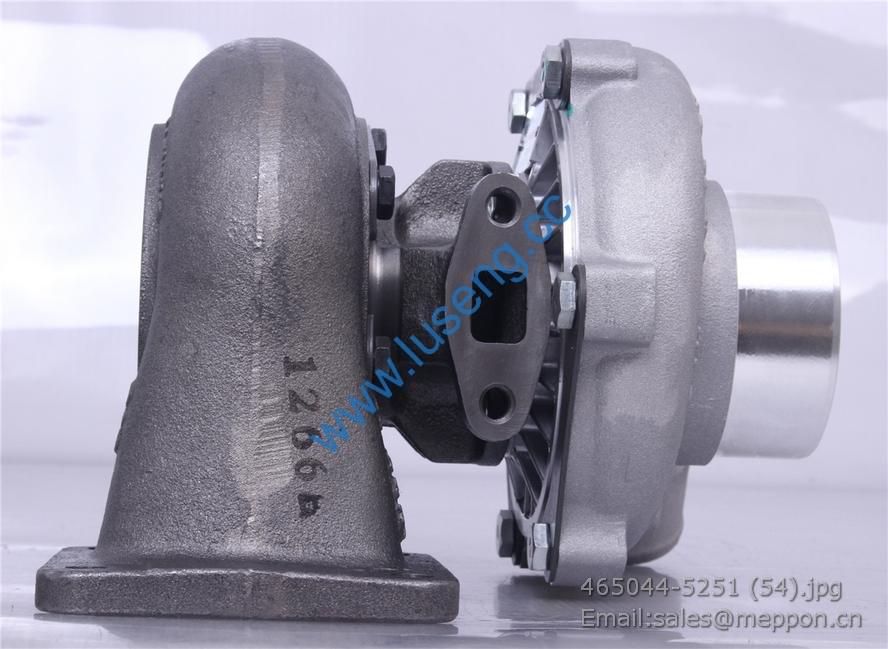

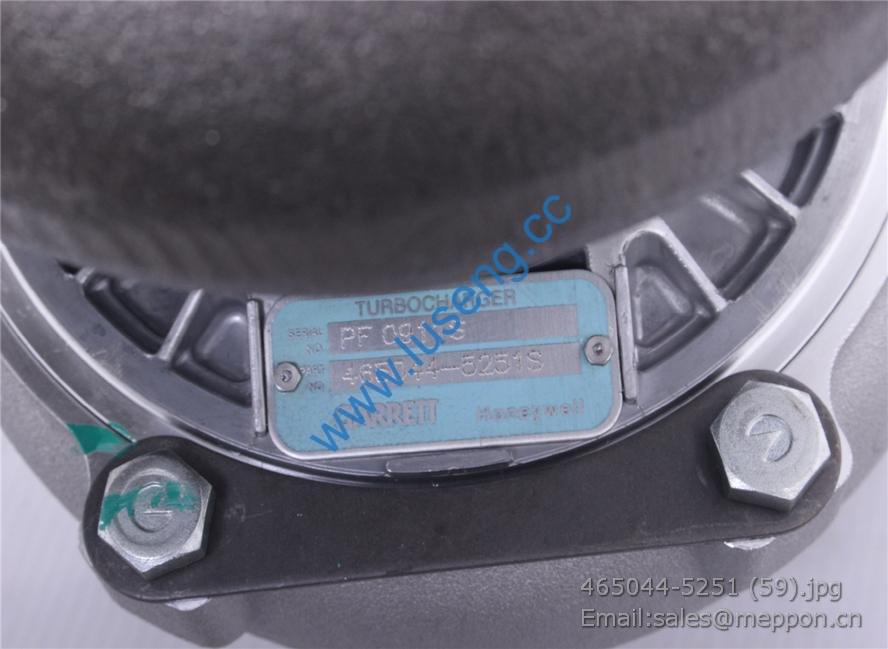

6207-81-8210 465044-5251S S6D95L KOMATSU TURBOCHARGER

Y704 YNF40-70021-1 TM130压缩机总成 1 参考
2 Y10004931 YNF40-700028 发电机总成 1
3 HB0507 GB-T6177.1_M12 螺母 1 M12
4 HB03522 GB-T5789_M10X55 螺栓 2 M10X55
5 HB0506 GB-T6177.1_M10 螺母 2 M10
6 Y10007434 YNF40-700060 空调机支架 1
7 Y1001036002 D40TCIF-700011 皮带张紧轮 1
8 X16058 D19TCI-05101-1 定位套 2 外Ø13.5内Ø11.4
9 Y10010286 D40TCIF-140014 风扇支座总成 1
10 Y141 YNF40-14100-1 水泵总成 1
11 Y10010098 D40TCIF 700009 多楔带I 1 8PK2201
图 前端附件系统
11 Y10010098 D40TCIF-700009 多楔带I 1 8PK2201
12 HB03518 GB-T16674.1_M8X30 螺栓 4 M8X30
13 Y7001 YNF40-70013-1 多楔带惰轮组件 1
14 HB03814 GB-T5789_M10X125 螺栓 2 M10X125
15 HB03813 GB-T5789_M10X90 螺栓 1 M10X90
16 HB03533 GB-T16674.1_M8X40 螺栓 1 M8X40
17 HB03643 GB-T5789_M12X135 螺栓 1 M12X135
18 Y10006549 YNF40-030047 曲轴皮带轮 1
19 HB03515 GB-T16674.1_M10X50 螺栓 2 M10X50

HB0629Z JB-T982_22 组合垫圈 2
2 HA11744 4100QB-11-016 铰接螺栓 1 M22X1.5
3 Y707 YNF40-70066-1 打气泵进水管 1
4 Y10012064 YNF40-700082 空压机总成 1
5 HB064Z JB-T982_14 组合垫圈 6
6 HA1166 4100QBZ-11-013 铰接螺栓 3 14X1.5
7 HA22117 4100QBZL-22.07A 打气泵放水阀总成 1
8 Y701 YNF40-70062-1 打气泵支架 1
9 HB03511 GB-T16674.1_M8X20 螺栓 5
10 Y705 YNF40-70064-1 过渡接头 1
11 Y706 YNF40-70065-1 打气泵出水管 1
12 Y10007380 YNF40-700059 动力转向泵 1
图 空压机系统
13 HB067Z JB-T982_10 组合垫圈 4
14 X191328 D19TCI-13050-1 增压器进油管螺栓Ⅱ 2 M10X1-6H
15 HB03516 GB-T16674.1_M10X30 螺栓 2
16 HA2307 4100QB-23.02-003 转向泵垫片 1
17 Y7005 YNF40-70063-1 打气泵进油管合件 1
18 HB03715 GB-T70.1_M12X35 螺钉 2 M12X35
