Description

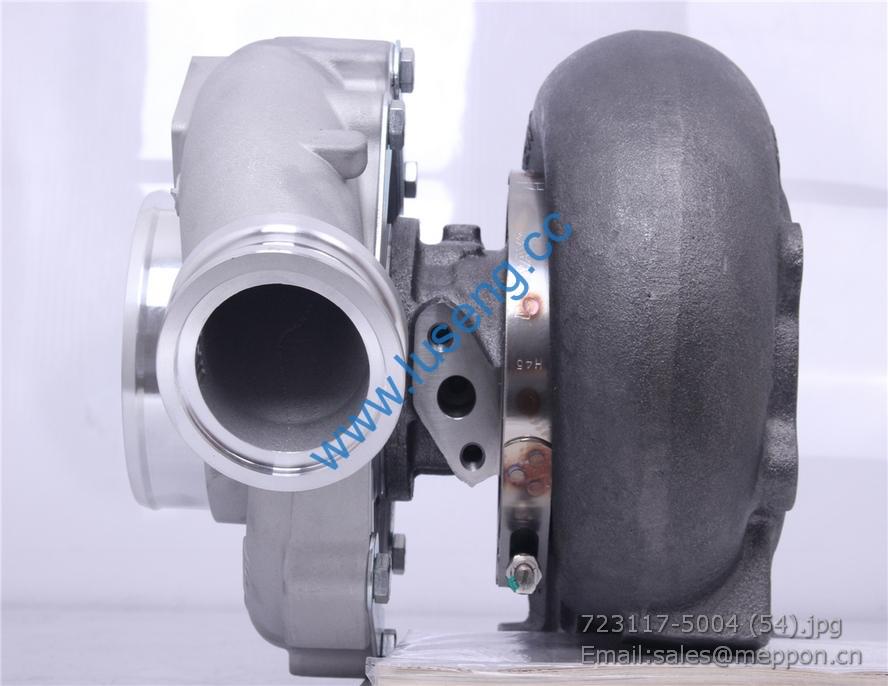

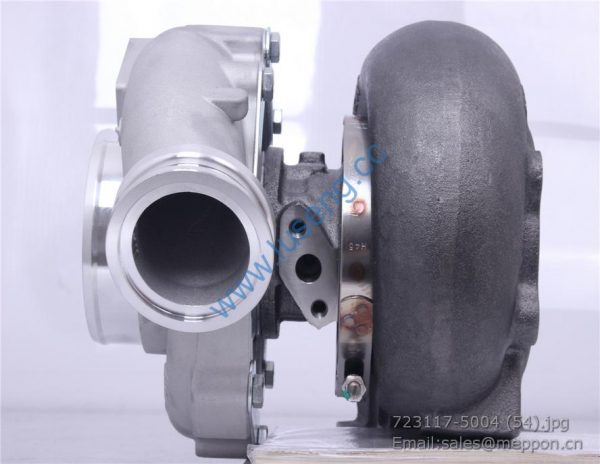

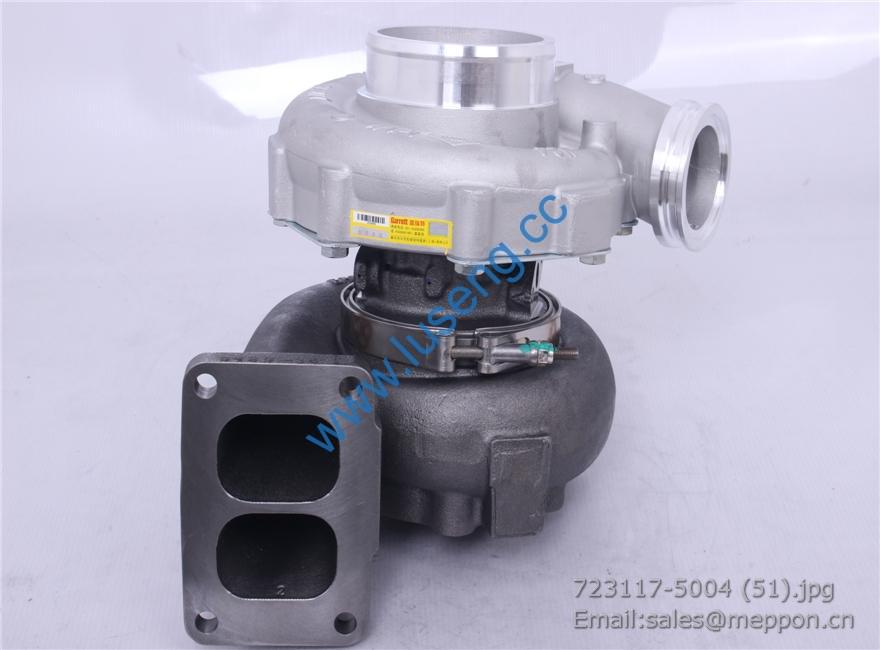

61560116227 STEYR turbocharger 723117-5004S Heavy Duty Truck

23 HA08233Y YN33CR-08.01-HT-Y 进气接管支架 Bracket ,intake connecting pipe 1
24 ZB J15 001 喉箍(不锈钢) Hoop NO:3 2
25 HA081160 4100QBZL-08-006A-EQ 增压进气胶管 Transition rubber tube 1
26 HA11540 4100QBZL-11.12A-Ⅱ 增压器进油管 Spring nut 8 3
27 HA1166 4100QBZ-11-013 链接螺栓 Link bolt M14×1.5 1
28 HB064Z JB 892 组合垫圈 Combination washer 14 2
29 压紧套 Impackt block 1
30 HB066ZA 9087060096 氟橡胶 A 型组合垫圈 Combination washer 2
31 HA1169 4100QBZ-11-006 铰接螺栓 M12×1.5 Link bolt M12×1.5 1
32 GB/T 5783 螺栓 Bolt M8×16 2

1 HA03291 YN33-03-030 排气管垫片 Gasket, exhaust manifold 4
2 HA09302 YN33-09.01.01 排气管防护部件Ⅰ Blind against exhausting Ⅰ 1
3 HA09006 YN33CR-09-001 增压排气管 Exhaust manifold 1
4 HA0930 4100QBZ-09-005 螺母 Nut M10 17
5 HA0932 4100QBZ-09-006B 双头螺柱 Double end stud L=45 7
6 HB03186 GB5783-86 螺栓 Bolt M6×16 4
7 HB062T GB93-87 垫圈 Spring washer 6 8
8 HB0622P GB/T 96.1-2002 垫圈 Washer 6 4
9 HA1505 YN33CRD-15-001 增压器 Turbo-charger 1
10 HA0932 4100QBZ-09-006B 双头螺柱 Double end stud L=22 7
11 / / / / 0
12 HA09284 4100QBZ-09.02-004A 排气尾管法兰垫片
Flanged packing of
exhausting tail pipe
1

13 HA09008 4100QBZL-09.02A-ZC 排气尾管
Turbo-charger exhausting tail
pipe
1

14 GB/T 96.1-2002 大平垫 Washer 2
15 HA0932 4100QBZ-09-006B 双头螺柱 Double end stud L=30 2
16 HA0962 4100QB-1A-09-002-NJ 双头螺柱 Double end stud AM10×1×35 2
17 HA0934 495QA-09-002 螺母 Nut M10×1 2 铜棒 18/H62
18 HA09188 4100QBZL-09-002A-FT 增压器燃气进口法兰垫片
Flange gasket, Turbo-charger
burning gas intake
1

19 HA09360 4100QBZL-09.01.02-G 排气防护板焊合件 Blind unit against exhausting 1
20 HA0932 4100QBZ-09-006B 双头螺柱 Double end stud L=35 1
