Description

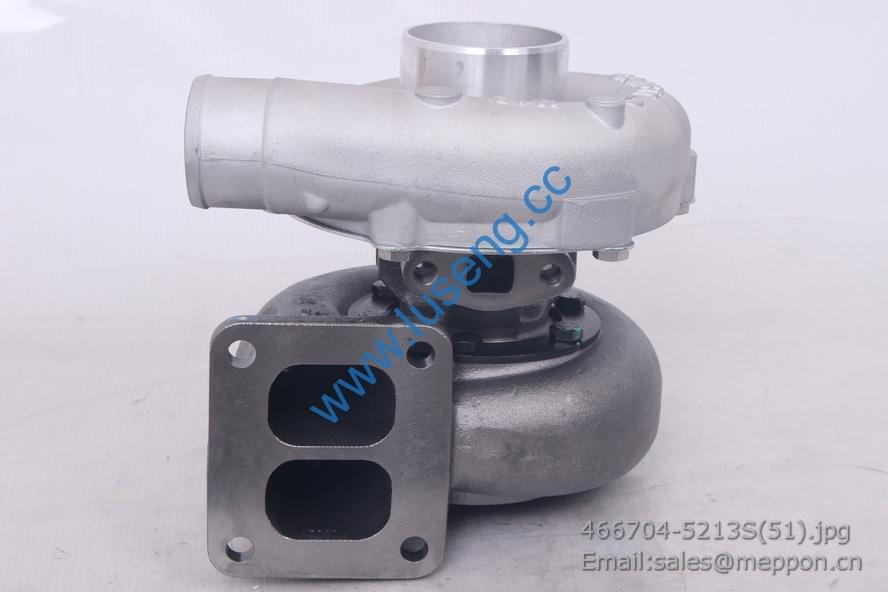

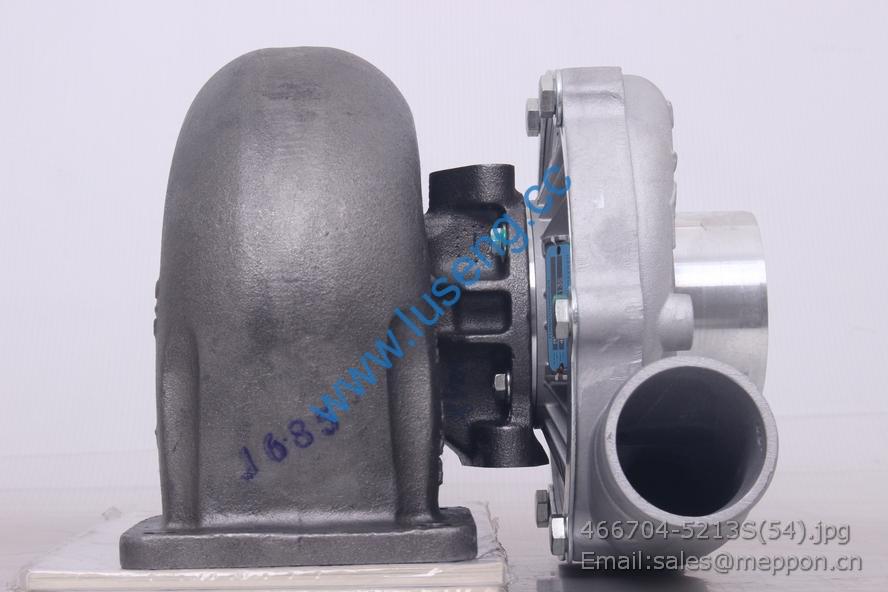

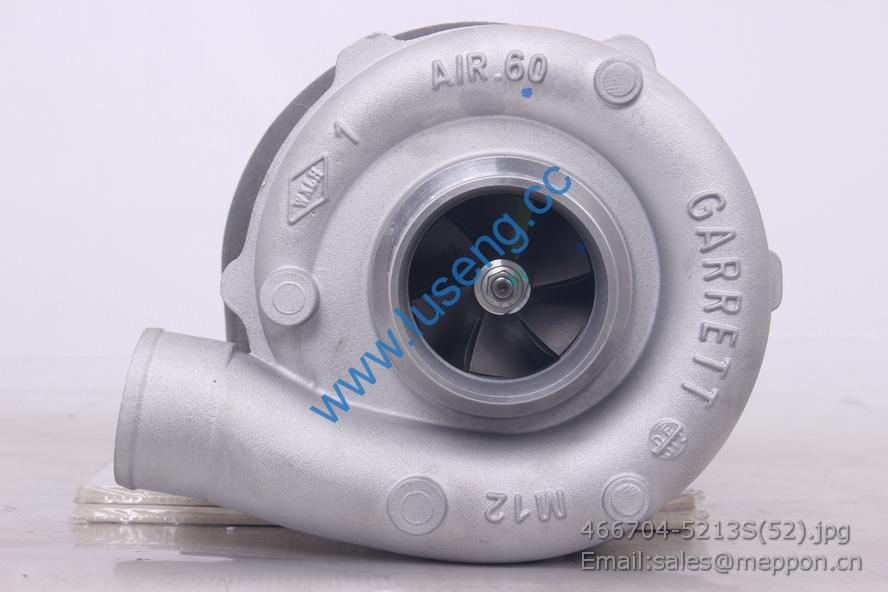

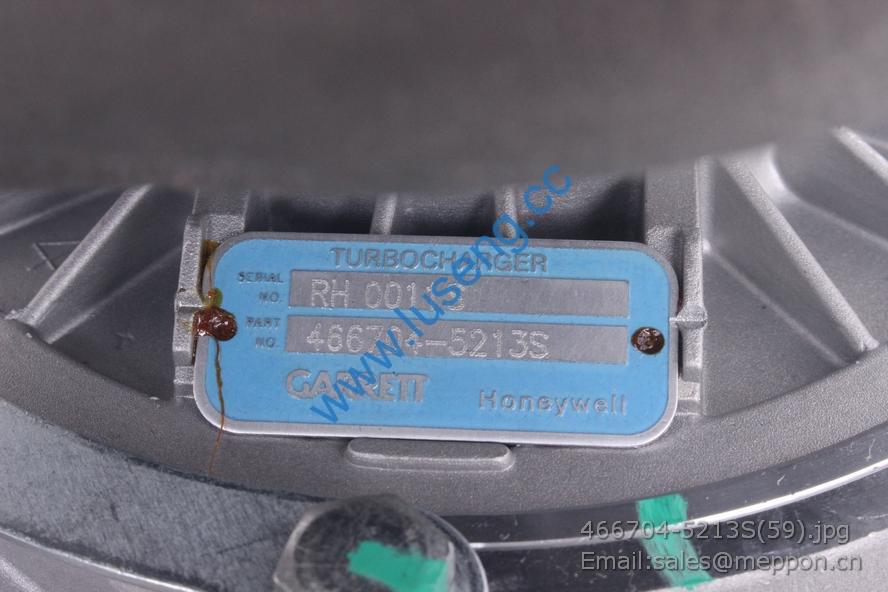

6151-82-8500 KOMATSU turbocharger 466704-5213S Construction Equipment

1 D30-1002313 法兰面螺栓 M8X53.5 Bolt M8X53.5 3
2 D30-1002054 正时惰齿轮挡板 Timing idle gear retaining board 1
3 D30-1002051 正时惰齿轮 Timing idle gear 1
4 D30-1002120 凸轮轴衬套 Camshaft bushing 1 易损件 EWP
5 D30-1002052 惰齿轮轴 Idle gear shaft 1
6 D30-1002012A 前主轴承盖 Front main bearing cap 1
7 330-1002021A 主轴承螺栓 Main bearing cover bolt 10
8 G0100-1002162A 过油螺栓 Hollow bolt for oil 4
9 430-1002163 垫圈 Washer 4 易损件 EWP
10 D30-1002740 喷嘴组件 Nozzle subassembly 4
11 YC24-0408 圆柱销 4×8 Pin 4×8 2
12 330-1002013 中间主轴承盖 Middle main bearing cover 1
13 330-1002014 主轴承盖 Main bearing cap 3
14 YC7-40 碗形塞片 40 Bowl type plug 7 4
15 6105Q-1002022 铝堵φ10X10 Aluminum plug 1
16 Q61101 开槽锥形螺塞 NPT1/8 Grooved tapered screw plug 1
17 630-1003081 水套堵塞 Plug for cooling jacket 4
18 D30-1002114C 气缸体 Cylinder body 1
D2000-1002170 气缸体组件 Cylinder block subassembly 1
19 D30-1002062A 凸轮轴端盖垫片 Camshaft end cover gasket 1 易损件 EWP
20 D30-1002061 凸轮轴端盖 Camshaft end cover 1
21 Q40308 垫圈 8 Washer 8 3 易损件 EWP
22 Q150B0820 螺栓 M8×20 Bolt M8×20 3
23 6105Q-1002069 后主油道堵塞 Rear oil passage blockage 4
24 D30-1002068A 油道堵塞 Oil passage blockage 1
25 D30-1002064B 气缸套 Cylinder liner 4 易损件 EWP
26 A3000-1002063 气缸套封水圈 Cylinder liner water seal ring 4 易损件 EWP
27 A3000-1002063B 气缸套封水圈 Cylinder liner water seal ring 4 易损件 EWP
28 6105Q-1002011 凸轮轴衬套 Camshaft bushing 5

1 Q150B0865TF2 螺栓 M8×65 Bolt M8×65 3
2 Q40308 垫圈 8 Washer 8 30 易损件 EWP
3 D30-1002210C 多楔带惰轮组件 Multi-wedge idle gear subassembly 1
4 Q150B0850 螺栓 M8×50 Bolt M8×50 2
5 Q150B0870 螺栓 M8×70 Bolt M8×70 1
6 6105Q-1600011 扁销 Flat pin 1
7 YC209-C065090FR 油封 65×90 Oil seal 1 选装 Optional
YC209-C065090PR 油封 65×90 Oil seal 1 选装 Optional
8 Q1840816 螺栓 M8X16 Bolt M8X16 2
9 D30-1002037 上止点指针 Top dead center pointer 1
10 Q150B0865 螺栓 M8×65 Bolt M8×65 2
11 Q150B0820 螺栓 M8X20 Bolt M8X20 5
12 1D30-1002040 喷油泵齿轮盖部件 Injection pump gear cover part 1
13 D30-1002036 喷油泵齿轮盖垫片 Injection pump gear cover gasket 1 易损件 EWP
14 YC24-B0814 圆柱销 8X14 Pin 8X14 1
15 D30-1002034C 正时齿轮室罩垫片 Timing gear housing cover gasket 1 易损件 EWP
16 D30-1002033D 齿轮室盖板 Gear housing covering plate 1
17 Q150B0822TF2 螺栓 M8X22 Bolt M8X22 5
18 Q150B0822 螺栓 M8X22 Bolt M8X22 8
19 D30-1002031C 正时齿轮室 Timing gear housing 1
20 Q40108 垫圈 8 Washer 8 24 易损件 EWP
21 Q1200865 螺柱 M8×65 Stud M8×65 3
22 Q150B0855 螺栓 M8×55 Bolt M8×55 1
23 Q340B08 螺母 M8 Nut M8 3
