Description

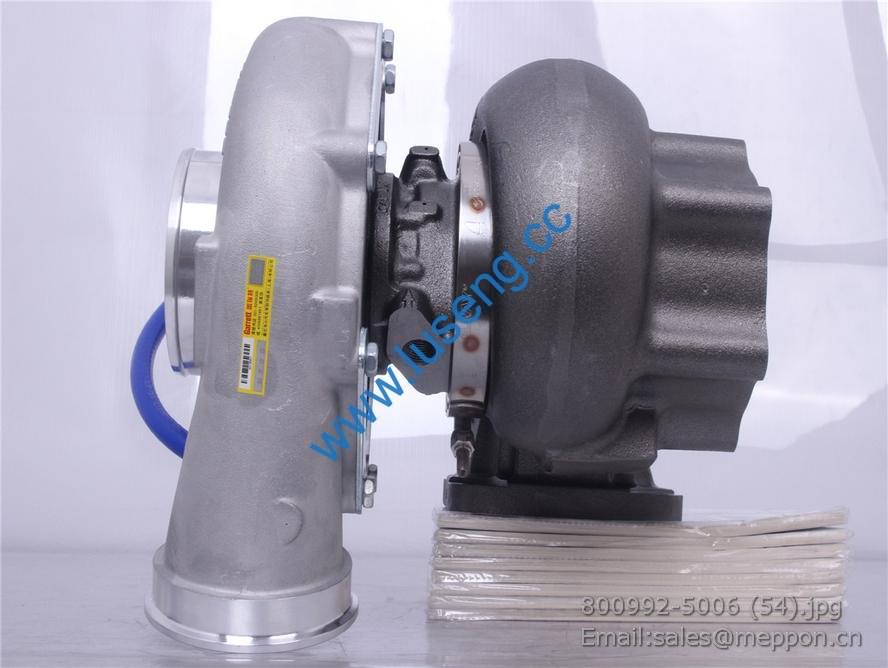

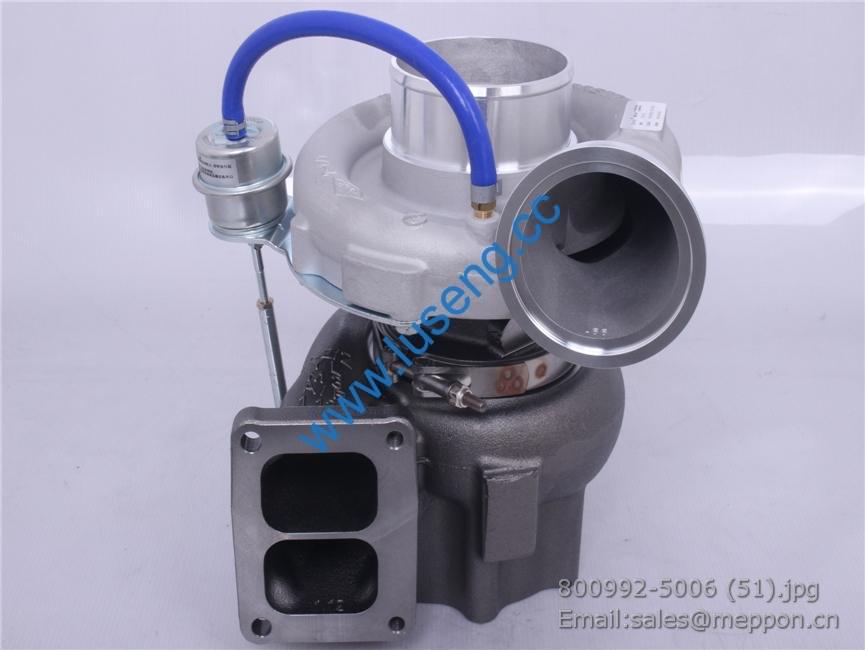

612630110581 WEICHAI turbocharger 800992-5006S WP12.375

Q2140406 螺栓 2
Q40104 平垫圈 2
2 1700D5-060 压板 1
3 1700D5-058 中间轴前轴承盖 1
4 1700D5-059 0形密封圈 1
5 5H46-0021A1 主箱壳体 1
6 WTD32×24.5×2 橡胶垫 2
7 WB623M24 磁性放油螺塞 2
2400032TY6 右半轴/Hslf-axle (R.H)
1
1
2 B2400026 挡圈/Lock ring 2
3 GB/T895.2-1986 挡圈 50/Shield ring 2
4 B2400003 锁紧螺母/Grooved nut 2
5 P2300122 转向节套环/Shield ring 2
6 C2400035D 承推环/Thrust ring 2
7 2501TZ7 中桥壳总成/Middle axle assembly 1
8 A2300129C 螺塞组合/Screw plug 1
9 A2305017B 螺塞组合/Screw plug 1
10 2500024TZ7 上推力杆支座/Up thrust Bar bracket 1
11 GB/T5786-2000 螺栓 M20x1.5×50/Bolt 6
12 GB/T93-1987 垫圈 20/Washer 6
13 C2500065 带槽螺母/Grooved nut 2
14 B2500063B 止动垫圈/Washer 1
15 GB/T276-1994 向心球轴承 6212/C3/Deep slotting ball bearing 1
16 B2500040B 油封/Oil seal 1
17 B2500020B 油封/Oil seal 1
18 B2500064 螺环/Screw ring 1
19 B2500066A1-D1 贯通轴/Straight-t hrough shaft 1
20 GB/T5786-2000 螺栓 M8X1X16-8.8/Bolt 2
21 GB/T862.2-1987 垫圈 8/Washer 2
22 C2500062 锁片/Lock blade 1
23 B2500060B 螺环总成/Screw ring assembly 1

24 B2500070A1-D1 贯通轴总成/Straight-t hrough shaft 1
25 2400016FQ 定位销 1
26 B2400025A 常开式通气塞/Ventilator 1
27 QC/T346-1999 堵塞 Q72512112/PlugQ72512112 1
28 2400031TY6 左半轴/Half-axle (L.H) 1
29 B2502LND-D 中桥主减速器/Middle axle main reducer 1
30 A2300149 垫圈/Washer 1
31 A2300160 指示开关/Switch 1
32 A2306015 垫圈/Washer 1
33 A2306016 直通管接头/Fitting 1
34 B2400018M1 螺栓 M12×1.5×85/Bolt 2
35 B2400018M 螺栓 M12×1.5×40/Bolt 18
36 B2406D 轮边减速器总成/Wheel reducer assembly 2
37 3502TZ7
制动器及制动鼓总成/Brake and brake drum
assembly
2
38 A2305113B 车轮紧固螺母/ nut 20
