Description

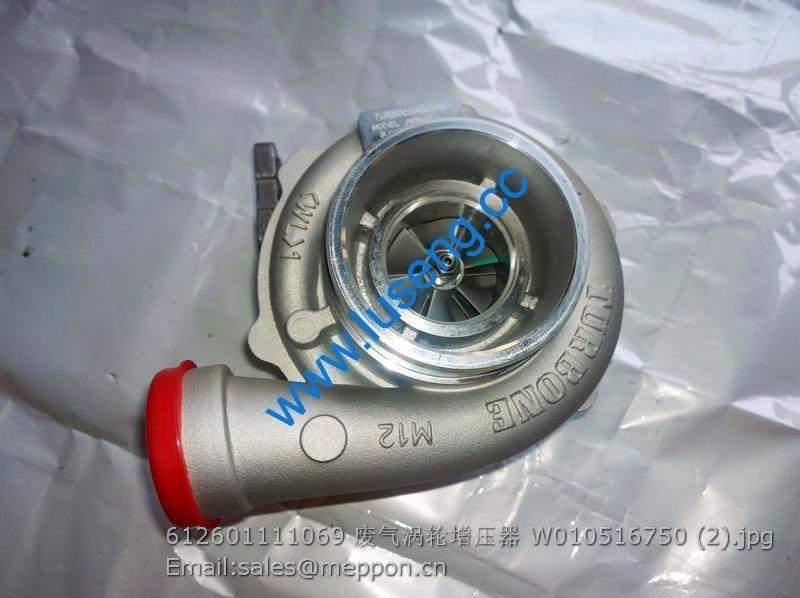

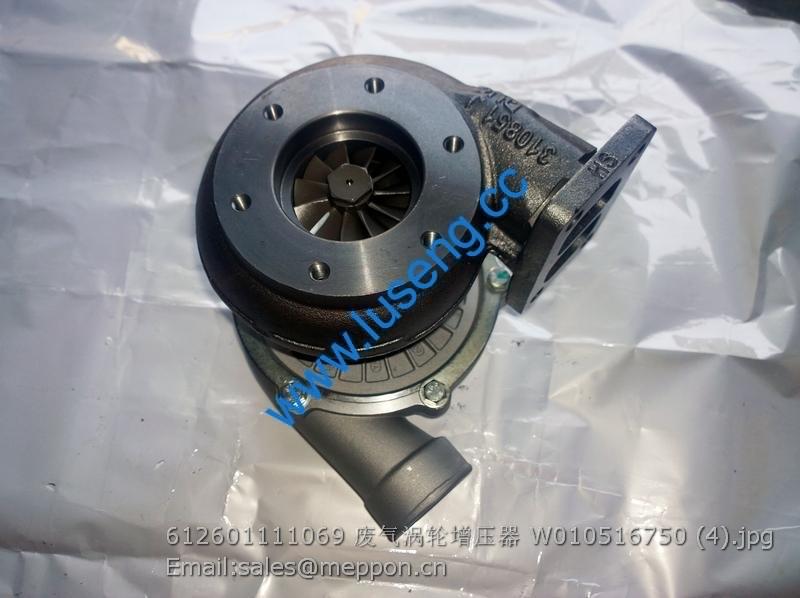

612601111069 WEICHAI TURBOCHARGER W010516750

1 4120001054004 端盖D32-1 End cap N 3
2 4120001054005 动臂阀杆D32-2 Valve stem N 1
3 4120001054006 阀体D32-4 Valve body N 1
4 4030000608 PO形圈GB1235-60*3.1 O-ring Y 3
5 4120001054007 弹簧D32-8 Spring Y 3
6 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 3
7 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 3
8 4120001054009 端盖D32-5 End cap N 3
9 4120001054010 弹簧D32-7 Spring Y 3
10 4015000025 垫圈GB93-10-65Mn Spring washer Y 12
11 4014000217 螺钉GB70.1-M10*100EpZn-8.8 Screw Y 6
12 4120001054012 弹簧座D32-6 Spring seat N 6
13 7200000446 O型圈 O-ring Y 2
14 4120001054014 补油阀盖D32-13 Float trap valve body N 1
15 4120001054015 弹簧D32-14 Spring Y 1
16 4120001054016 补油阀D32-15 Valve Y 1
17 4120001054017 螺塞D32A-10 Plug N 3
18 4120001054018 O形圈8.9*2.3 O-ring Y 3
19 7200001075 O形圈50*3.1 O-ring Y 4
20 4120001054020 辅助阀杆D32A-11 Valve stem N 1
21 4030000706 O形圈GB1235-44*3.5 O-ring Y 4
22 4120001054022 阀盖D32-19 Check valve body N 4

23 4120001054023 弹簧D32-16 Spring Y 4
24 4120001054024 单向阀D32-17 Non-return valve N 4
25 4030000707 O形圈GB1235-55*3.1 O-ring Y 1
26 4120001054026 转斗阀杆D32-12 Valve stem N 1
27 4014000115 螺钉GB70.1-M10*1.5*45EpZn-8.8 Screw Y 6
28 4120001054003 小腔过载补油阀 Valve Y 1
29 4120001054002 大腔过载补油阀 Non-return valve Y 1
30 4120001054029 堵头D32A-20 Choke plug N 1
31 4030000149 O形圈GB1235-35*3.5 O-ring Y 1
32 4120001054030 螺栓D32A-21 Bolt N 5
33 4120001054001 安全阀D32.2a-00 Relief valve Y 1
34 4120001054031 阀体D32A-22 Valve body N 1
35 4120001054032 堵头D32A-23 Choke plug N 2
36 4120001054033 阀杆接头D32-21 Valve stem joint N 3
37 4120001054034 调整垫片D32-9 Adjusting shim N 1
38 4120002303004 螺塞D32-3 Plug Y 3
39 4030000011 O形圈GB1235-20*2.4 O-ring Y 3

1 4120002027005 顺序阀座DXS-18-01 Safety valve seat dxs-18-01 Y 2
2 4120002027006 计量阀座DXS-16-04 Safety valve seat dxs-16-04 Y 3
3 4120002027007 O型圈18X1.8GB3452.1-82 O-ring 18×1.8 gb3452.1-82 Y 3
4 4120002027008 O型圈12.5X1.8GB3452.1-82 O-ring 12.5×1.8 gb3452.1-82 Y 5
5 4120002027009 弹簧DXS-16-01 Spring dxs-16-01 Y 3
6 4120002027010 阀芯座DXS-16-02 Safety valve seat dxs-16-02 Y 3
7 4120002027011 计量阀芯DXS-16-03 Valve stem dxs-16-03 Y 3
8 4120002027012 销φ2.5X12GB879-86 Pin φ2.5×12 gb879-86 Y 4
9 4120002027013 R1/8螺堵DXS-22 R1/8 plug dxs-22 Y 4
10 4120002027014 弹簧座DXS-10-05 Spring seat dxs-10-05 Y 4
11 4120002027015 弹簧DXS-17 Spring dxs-17 Y 4
12 4120002027016 计量弹簧DXS-10-04 Spring dxs-10-04 Y 4
13 4120002027017 弹簧座DXS-10-06 Spring seat dxs-10-06 Y 4
14 4120002027018 钢丝挡圈DXS-10-03 Wired cirllip dxs-10-03 Y 4
15 4120002027019 弹性圆柱销φ2X10GB879-86 Pin φ2×10 gb879-86 Y 4
16 4120002027020 O型圈22.4X2.8GB3452.1-82 O-ring 22.4×2.8 gb3452.1-82 Y 4
17 4120002027021 盖DXS-10-02-01 Cover dxs-10-02-01 Y 4
18 4120002027022 塑料塞DXS-10-02-02 Plastic plug dxs-10-02-02 Y 4
19 4120002027001 C1型密封件10X16X6 C1 10 Sealing ring Y 4
20 4120002027023 密封圈盖DXS-10-07 Cover dxs-10-07 Y 4
21 4120002027024 弹性挡圈17GB893.1-86 Snap ring gb893.1-86 Y 4
22 4120000370024 电磁铁DXS-13 Magnet Y 3
