Description

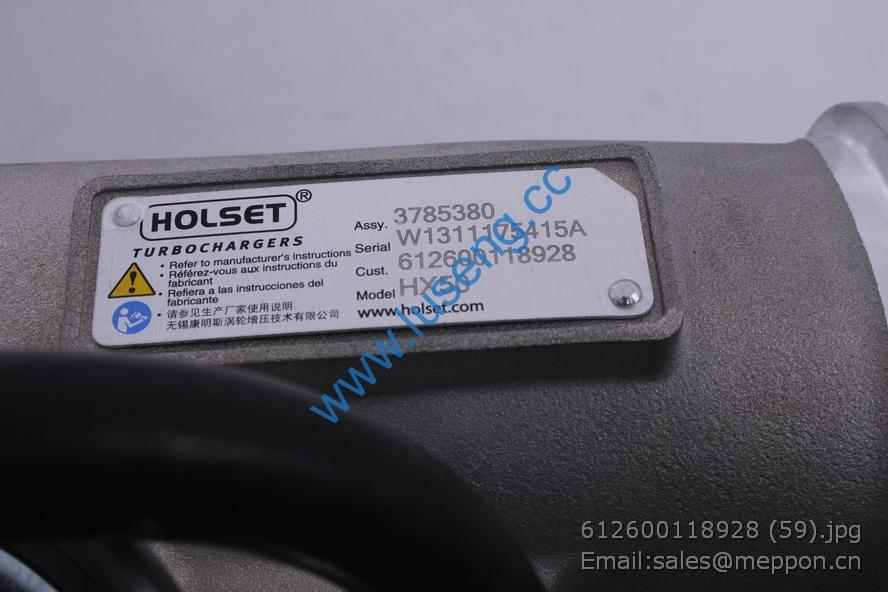

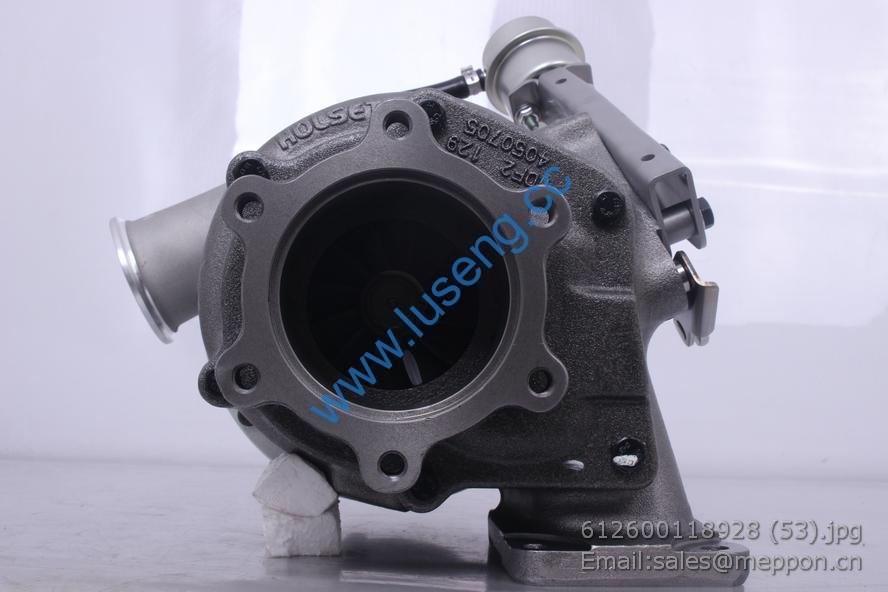

612600118928 turbocharger 3785380

WG1642820002 1 Air conditioner with electro air intake
AZ1630840013 1 Bottom housing
AZ1630840091 2 Water pipe
AZ1630840319 1 Water tank with electro valve
AZ1630840074 1 Water tank
AZ1630840073 1 Water inlet pipe assembly
AZ1630840066 3 O-ring
AZ1630840072 1 Water outlet pipe assembly
AZ1630840320 1 Water valve with electro switch
AZ1630840326 1 3#water changer
Q2723525 2 Screw
AZ1642820010 1 Evaporator assembly
AZ1642820010-1 1 Expansion valve
AZ1642820010-2 1 Temprature sensor
AZ1630840015 2 Air intake assembly
AZ1630840312 1 Middle housing
AZ1630840092 1 Seal strip
AZ1630840063 9 Clip
AZ1642820010 1 Fan
AZ1630840323 1 Electrical line for fan
Q2714216 3 Screw
AZ1630840321 1 Fan speed changer
AZ1630840049 1 Rotary plate
AZ1630840050 1 Rotary arm
AZ1630840051 2 Torsion spring

AZ1630840052 1 Washer
AZ1630840065 1 Snap ring
AZ1630840045 2 Rod Ⅱ
AZ1630840046 1 Rod Ⅲ
AZ1630840047 1 Rod Ⅳ
AZ1630840047 1 2# water changer
Q2723525 2 Screw
AZ1630840313 1 Lever
AZ1630840314 1 Rod
AZ1630840053 2 Base
AZ1630840311 1 Above housing
AZ1630840401 1 Gasket
AZ1630840093 1 Seal strip Ⅱ
AZ1630840063 8 Clip
AZ1630840037 1 Air intake left
AZ1630840038 1 Air intake right
AZ1630840040 1 Air intake front
AZ1630840041 2 Rod
AZ1630840035 1 Shaft
AZ1630840036 1 Air intake rear
AZ1630840039 1 Rod I
AZ1630840053 1 Base
AZ1630840034 2 Bevel gear
AZ1630840315 1 Shaft for bevel gear
Q43660 1 Snap ring
AZ1630840324 1 1# waler changer
Q2723525 2 Screw
AZ1630840016 1 Seal ring
AZ1630840021 1 Plate
Q150B0830 2 Screw
Q40308 2 Spring washer
Q40208 2 Washer
AZ1630840062 2 Rubber sleeve
Q2714825 2 Screw
Q40206 2 Washer
190003989340 6 Circlip
WG1642840091 2 Hose I
AZ1642840013 1 Steel pipe
Q1840816 1 Screw
AZ1642840084 1 Protect net
Q150B0620 2 Screw
Q40206 2 Washer
Q1840825 1 Screw
Q33008 1 Nut
WG1642840092 2 Hose Ⅱ
Q150B0640 6 Screw
Q40306 6 Spring washer
Q40206 6 Washer
WG1630820073 1 Condenser assembly
WG1642820011 1 Bracket left for condenser
WG1642828011 1 For drive right Bracket left for condenser
WG1642820012 1 Bracket right for condenser
WG1642828012 For drive right Bracket right for condenser
Q150B0825 4 Screw
Q40308 8 Spring washer
Q40208 4 Washer
Q340B08 4 Nut
WG1642820017 1 Condenser-receiver connect tube
WG1642820019 1 Evaporator-compressor connect tube
WG1642828019 1 For drive right Evaporator-compressor connect tube
Q150B0625 2 screw
Q40306 2 Spring washer
Q40206 2 Washer
WG1642820015 1 Receiver tank
WG1642820018/1 1 Receiver-evaporator connect tube
WG1642820016 1 Compressor-condenser connect tube
WG1642828016 1 For drive right Compressor-condenser connect tube
WG1630820019 1 Rubber sleeve
WG1630840032 1 Control panel
WG1630820313 1 Temprature sensor
AZ1630820312 1 Electrical line for air conditioner
WG1500139000 1 Compressor
WG1500139000/3 1 Compressor
1581C160018 2 Sleeve
AZ1500130018 1 Bracket
AZ1500130107 1 HINO engine Bracket
Q150B10130 2 Screw
161500130027 1 Spacing plate
Q150B0825 2 Screw
Q40008 2 Washer
Q41808 2 Spring washer
AZ1500090026 1 Collar bolt
AZ1500130105 1 HINO engine Collar bolt
Q40110 3 Washer
Q340B10 2 Flat nut
Q33208 1 Lock nut
WG1500130110 1 HINO engine V-belt
WG1500130016 1 WD615 V-belt
WG1500130016/3 1 WD615 V-belt
