Description

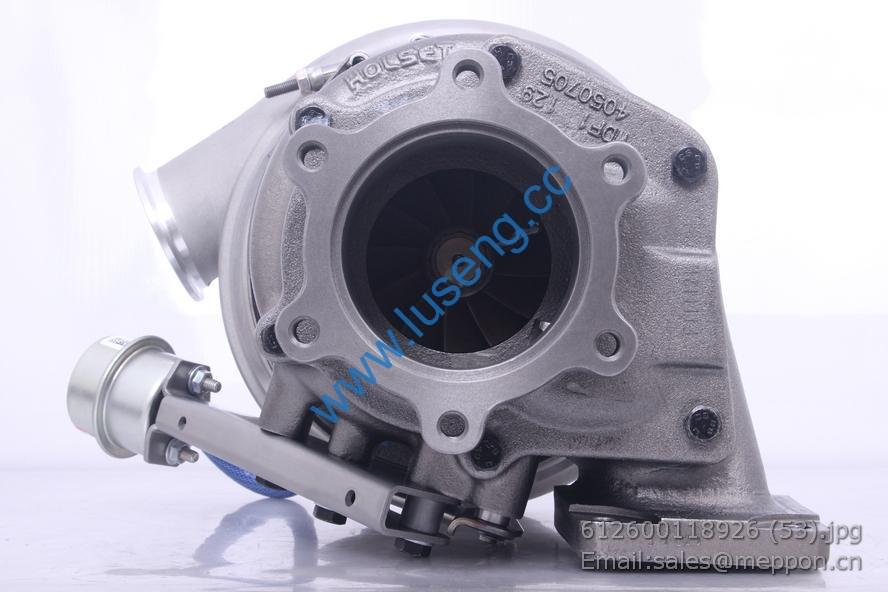

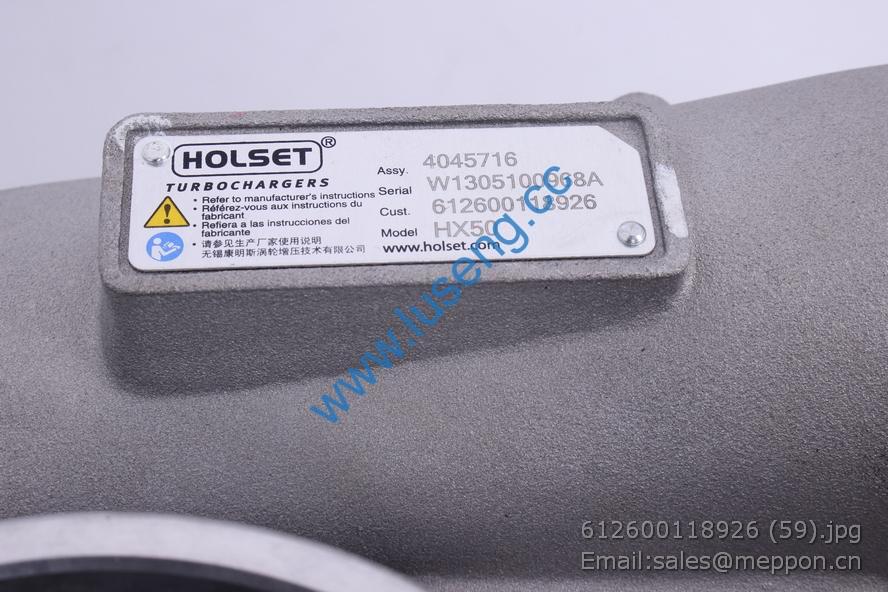

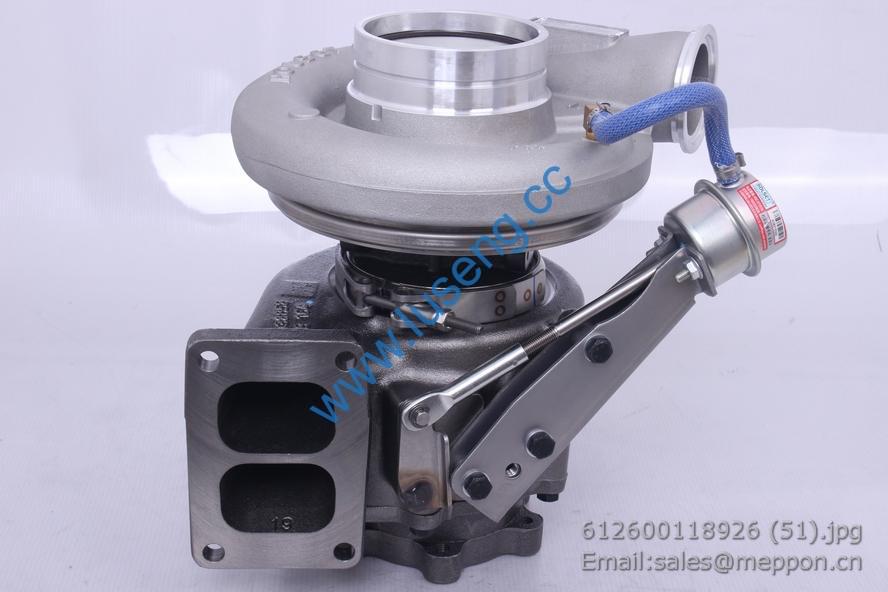

612600118926 turbocharger 4045716

Q1841230 8 Screw
WG1642440040 1 Above bracket left
WG1642440041 1 Above bracket right
WG1642440052 2 Sensor for cab lock
Q150B0630 4 Screw
WG1642440101 2 Hyd.lock
Q40306 4 Spring washer
Q150B0610 4 Screw
WG1642440055 1 AS Left bracket
WG1642440056 1 AS Right bracket
Q33014 2 Nut
AZ1642440025 2 AS Shock absorber
AZ1642440027 2 SSH Shock absorber(screwy spring)
WG1642440028 2 SSS Shock absorber(screwy spring)
Q1841480 2 Screw
Q33014 2 Nut
Q1841470 2 Screw
Q151B1445 8 Screw
190003888458 8 Nut
Q150B0850 4 Screw
Q40208 4 Washer
WG1642440051 2 AS Height control valve
AZ1642440035 2 AS Plate
Q1841490 2 Screw
AZ1642430082 2 Washer
Q18414140 2 Screw
AZ1642440032 2 Bush Ⅱ
AZ1642440021 2 Stabilizer
AZ1642440031 2 Bush I
Q33014 2 Nut
WG1642430081 2 Stop
Q340B10 2 Nut
AZ1642430036 4 AS Ball washer
Q340B06 8 AS Nut
WG1642440060 2 AS Brace rod
Q5100614 2 AS Bolt
Q5002012 2 AS Split pin
AZ1642440011 1 B，BR，C，CR Bottom bracket left
AZ1642440013 1 A，AR Bottom bracket left
AZ1642440015 8×4and ASS,SSS Bottom bracket left
AZ1642440012 1 B，BR，C，CR Bottom bracket right
AZ1642440014 1 A，AR Bottom bracket right
AZ1642440016 8×4and ASS,SSS Bottom bracket right
WG1642440070 1 T-nozzle
WG1642440072 1 Hose

AZ1630840302 1 Heater assembly with electro air intake
AZ1630840013 1 Bottom housing
AZ1630840091 2 Water pipe
AZ1630840319 1 Water tank assembly
AZ1630840074 1 Water tank
AZ1630840320 1 Valve
AZ1630840066 3 O ring
AZ1630840073 1 Input water pipe
AZ1630840072 1 Output water pipe
AZ1630840015 2 Air in take assembly
AZ1630840312 1 Middle housing
AZ1630840092 1 Seal strip
AZ1630840063 9 Connecter
AZ1630840014 1 Fan
AZ1630840014-1 3 Motor of fan
Q2714216 1 Screw
AZ1630840321 1 Electro speed changer
AZ1630840323 1 Electrical line
AZ1630840037 1 Air intake left
AZ1630840038 1 Air intake right
AZ1630840040 1 Air intake front
AZ1630840036 1 Air intake rear
Q150B0830 2 Screw
Q40308 2 Spring washer
Q40208 2 Washer
AZ1630840062 2 Rubber sleeve
Q2714825 2 Screw
Q40206 2 Washer
190003989340 6 Circlip
WG1642840091 2 Hose I
AZ1642840013 1 Steel pipe
Q1840816 1 Screw
AZ1642840084 1 Protect net for air intake
Q150B0620 2 Screw
Q40206 2 Washer
Q1840825 1 Screw
Q33008 1 Nut
WG1642840092 2 Hose Ⅱ
WG1630840322 1 Control panel
AZ1630820312 1 Electrical line of air conditioner
WG1630820313 1 Temprature sensor
