Description

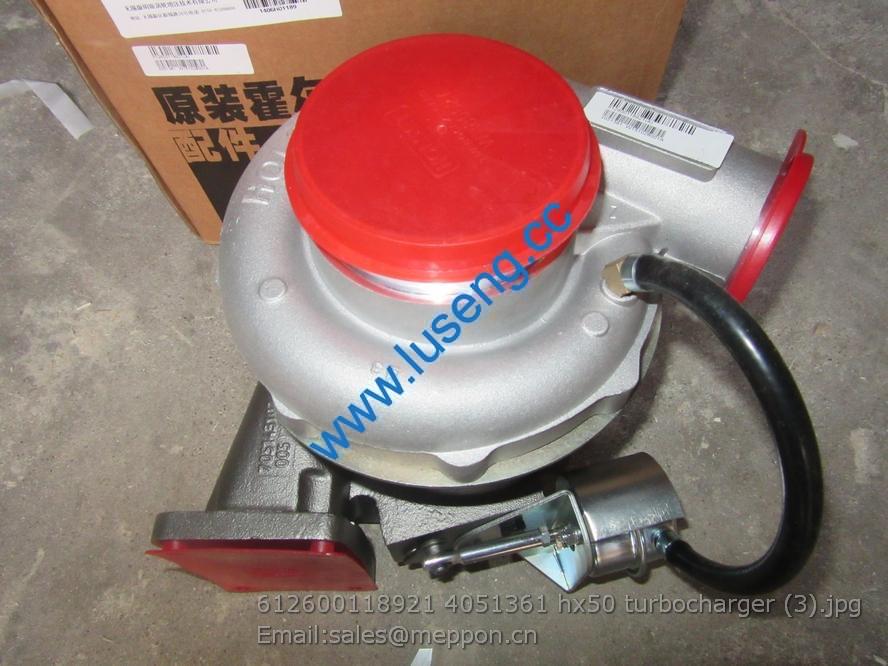

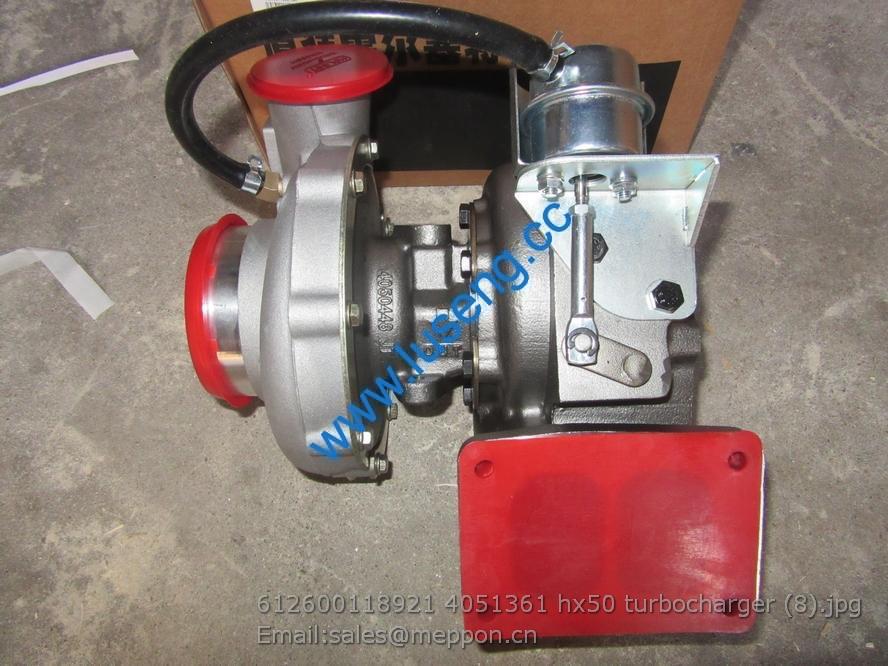

612600118921 4051361 hx50 turbocharger

1 90012210004 2 1型六角螺母 Hexagon nut (I)
2 612600090680 1 发电机支架 Alternator bracket
3 612600061713 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 90011430036 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 612600090442 1 固定板 Fixed plate
6 90011430016 2 六角法兰承面带齿螺栓 Toothed bolt
7 90003802655 2 六角头螺栓 Hexagon bolt
8 90014040009 2 平垫圈 Flat washer
9 90003931142 2 弹簧垫圈 Spring washer

1 612600013602 3 六角法兰面螺母 Hexagon Flange Nut
2 612600090340 1 起动机 Starter
3 90003813527 3 双头螺柱 Stud

1 612600080802 1 密封垫圈 Seal washer
2 612600090013 1 压力传感器接头 Oil pressure sensor joint
3 612600090014 1 螺堵 Plug

1 61500110024 6 进气管垫片 Air inlet pipe gasket
2 90014400010 2 密封垫圈 Seal washer
3 90003960005 2 六角头螺塞 Hexagon plug
4 612600112329 1 进气管总成 Air inlet pipe assembly
5 612600114467 2 六角法兰面螺栓 Hexagon Flange Bolt
6 612600114468 4 六角法兰面螺栓 Hexagon Flange Bolt
7 609E110036 4 调整垫圈 Adjusting washer
8 612600114858 6 六角法兰面螺栓 Hexagon Flange Bolt
9 90003802401 3 六角头螺栓 Hexagon bolt
10 90003932023 3 波形弹性垫圈 Wave spiral washer

1 90011430018 3 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
2 612600110455 1 盖板 Cover shield
3 612600110456 1 垫片 Gasket
4 612600112242 1 进气管 Intake manifold

1 612600113357 1 空气滤清器支架 Air fi lte r bracket
2 90011430008 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
3 612600080246 1 密封垫圈 Seal washer
4 615G60110001 1 六角头螺栓 Hexagon bolt
5 90003989315 1 软管卡箍 Hose clip
6 612600111826 1 气路连接胶管 Air Connecting Rubber Pipe
