Description

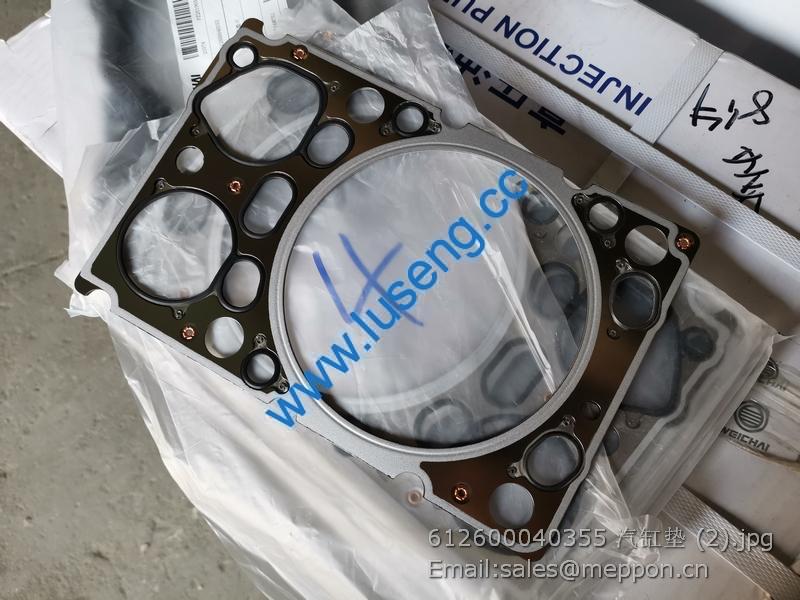

612600040355 WEICHAI HEAD GASKET 4110000556155 W010515080 SP120973
23 4043000055 防尘圈 LGB307-80 PUSTRING LGB307-80 Y 4
24 4043000026 轴套 LGB302-80*90A2 BUSH LGB302-80*90A2 Y 2
25 4043000015 销轴 LGB301-85*130R*245-40Cr PIN LGB301-85*130R*245-40Cr Y 1
26 4043000027 轴套 LGB302-85*95B3 BUSH LGB302-85*95B3 Y 2
27 4043000060 销轴 LGB301-85*142R*265-40Cr PIN LGB301-85*142R*265-40Cr Y 1
28 29150001041 连杆 LINDAGE ROD Y 1
1 29170038501 铲斗 BUCKET Y 1
2 29170019711 螺栓 BOLT Y 16
3 29170019701 螺栓 BOLT Y 2
4 29170039961 右边齿 RIGHT SIDE CUTTER Y 1
5 4013000020 螺母 GB6170-M20EpZn-8 NUT GB6170-M20EpZn-8 N 18
6 4015000176 垫圈 GB97.1-20EpZn-300HV WASHER GB97.1-20EpZn-300HV N 2
7 29170020531 斗齿调整垫 BUCKET ADJUST SPACER Y 8
8 29170039941 斗齿 TOOTH Y 6
9 29170039951 左边齿 LEFT SIDE CUTTER Y 1
10 29170039971 主刀板 PLATE N 1
11 29170038491 铲斗总成 BUCKET ASSEMBLY Y 1
1 4041000027 分体法兰 LGB117-312551 FLANGE LGB117312551 Y 1
2 4011000475 螺栓 GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 8
3 4120001803 齿轮泵 JHP2A100 STEERING PUMP JHP2A100 Y 1
4 29190001052 转向泵出油胶管 HOSE Y 1
5 4030000029 O 形圈 GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G Y 2
6 4041000056 分体法兰 LGB117-312550 FLANGE LGB117-312550 Y 1
7 29110000041 泵用密封垫 SEALING WASHER Y 1
8 4012000003 螺柱 GB898-M12*35EpZn-8.8 DOUBLE-SCREW BOLT GB898-M12*35EpZn-8.8 N 4
9 4015000168 垫圈 GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV N 4
10 4013000011 螺母 GB6170-M12EpZn-8 NUT GB6170-M12 EpZn-8 N 4
11 4011000337 螺栓 GB16674-M12*60EpZn-8.8 BOLT GB16674-M12*60EpZn-8.8 N 4
12 29190001022 吸油钢管 INTAKE TUBE Y 1
13 4030000235 O 形圈 GB3452.1-43.7*3.55G O-RING GB3452.1-43.7*3.55G Y 1
14 4030000560 吸油胶管 HG4-763-64*270 INTAKE TUBE HG4-763-64*270 Y 1
15 4017000013 喉箍 JB8870-d90 CLAMP JB8870-d90 N 4
1 4120001805 转向器 BZZ6-800 STEERING GEAR BZZ6-800 Y 1
2 4011000479 螺栓 GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8 N 4
3 4011000473 螺栓 GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8 N 4
4 29310011191 固定架 FIX FRAME Y 1
5 4120001855 转向柱 LG20-ZXZ-09 STEERING COLUMN LG20-Z*Z-09 Y 1
6 4120000018 方向盘 FXP-50F STEERING WHEEL Y 1
7 4041000564 直接头 LGB120-02620 JOINT LGB120-02620 Y 2
8 4041000783 O 形圈 LGB168-11724 O-RING LGB168-11724 Y 3
9 4041000174 软管 LGB164-003080 TUBE LGB164003080 Y 1
10 4041000084 直接头 LGB155-01214 CONNECTER LGB15501214 Y 2
11 4030000285 O 形圈 GB3452.1-12.5*2.65G O-RING GB3452.1-12.5*2.65G Y 2
12 4041000989 软管 LGB128-410140 PIPE LGB128-410140 Y 1
13 4041000088 直接头 LGB155-23326 CONNECTOR LGB155-23326 Y 1
14 4030000276 O 形圈 GB3452.1-32.5*2.65G O-RING GB3452.1-32.5*2.65G Y 1
15 29200001052 优先阀反馈油管 FEEDBACK OIL PIPE OF PRIORITY VALVE Y 1
16 4041000131 直接头 LGB120-01412 JOINT LGB120-01412 Y 1
17 4041000784 O 形圈 LGB168-10924 O-RING LGB168-10924 Y 1
18 4011000053 螺栓 GB5782-M10*90EpZn-8.8 BOLT GB5782-M10*90EpZn-8.8 N 2
19 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV N 2
20 4120002116 优先阀 VLE-150S PRIORITY VALVE VLE-150S Y 1
21 4041000519 软管 LGB165-010100 TUBE LGB165010100 Y 1
22 29200007901 直接头 CONNECTER Y 1
23 4041000132 直接头 LGB120-02220 CONNECTER LGB120-02220 Y 1
24 4013000007 螺母 GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 N 2
25 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV N 6
26 4011000528 螺栓 GB16674-M10*100EpZn-8.8 BOLT GB16674-M10*100EpZn-8.8 N 2
27 29310011301 调整座 ADJUSTING SEAT Y 2
28 29310011251 固定板 FIX PLATE Y 2
