Description

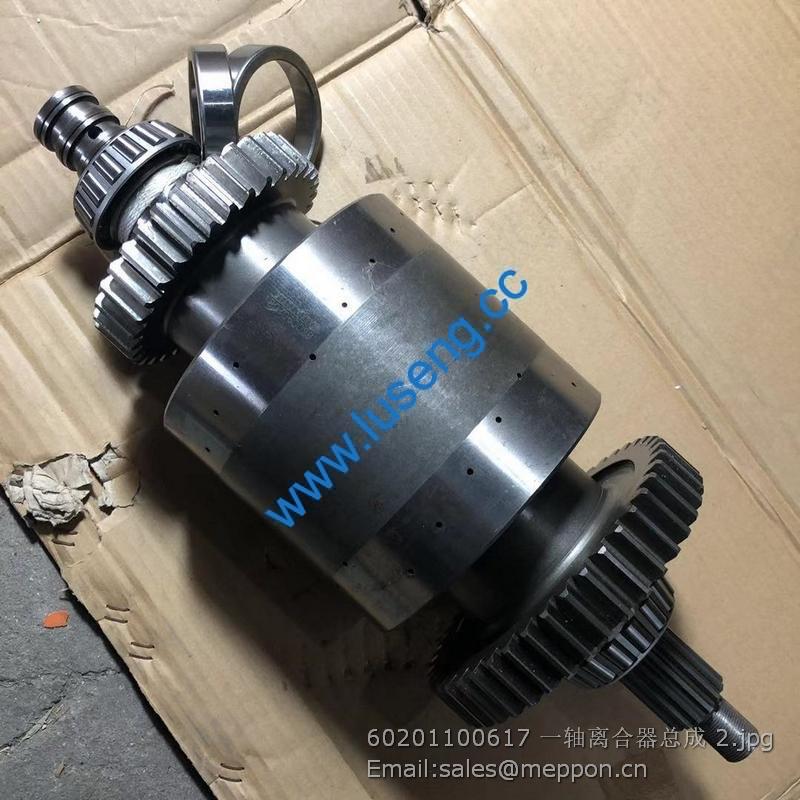

60201100617 ZL30E.5B.1 First axle clutch assembly ZL30E.5.1 36201000001 LONKING PARTS

1 51451750107 挡圈 150 Retaining ring 150 2 GB/T893.1
2 36211100022 离合器活塞压板 Press plate of clutch piston 2 ZL30E.5.1-8
3 36211000023 离合器主动片 Clutch drive plate 12 ZL30E.5.1-12
4 36211100018 离合器被动片 Clutch driven plate 12 ZL30E.5.1-13
5 36211100021 密封环 Seal ring 3 ZL30E.5.1-7
6 52322000701 轴承 30308 Bearing 30308 2 GB/T297
7 36211100016 调整垫圈 Adjusting washer 1 ZL30E.5.1-10
8 36211100014S 轴套 Shaft sleeve 1 ZL30E.5.1-6S
9 52198021201 轴承 6209 Bearing 6209 4 GB/T276
10 51451560107 挡圈 85 Retainer ring 85 4 GB/T893.1
11 36211100012 轴套 Shaft sleeve 2 ZL30E.5.1-2
12 36211100020 一轴倒挡齿轮 Single-axis backward gear 1 ZL30E.5.1-5
13 51454410107 挡圈 52 Retainer ring 52 2 GB/T894.2
14 36211100013 压板 Press plate 2 ZL30E.5.1-3
15 36211100019 回位弹簧 Pull-off spring 2 ZL30E.5.1-4
16 36211000003 活塞装置 Piston device 2 ZL30E.5.1.1
17 60201100330 丝堵（1/8） Plug 2 ZL30E.5.1-9
18 36211000004 一轴离合器毂体 Hub body of single-axis clutch 1 ZL30E.5.1.2

19 36211100015 一轴前进挡齿轮 Single-axis forward gear 1 ZL30E.5.1-1
20 36211100011 轴套 Shaft sleeve 1 ZL30E.5.1-11
