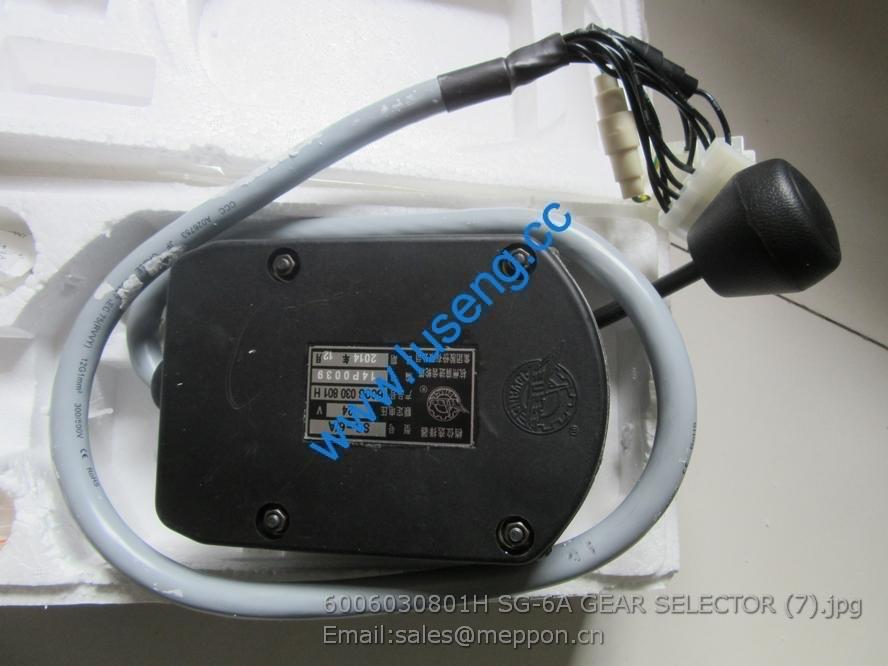

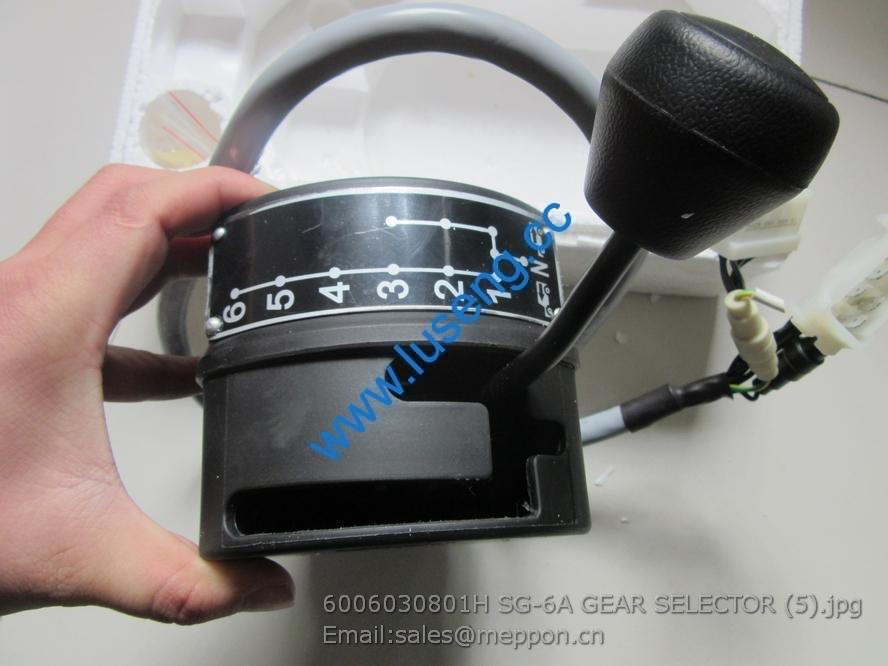

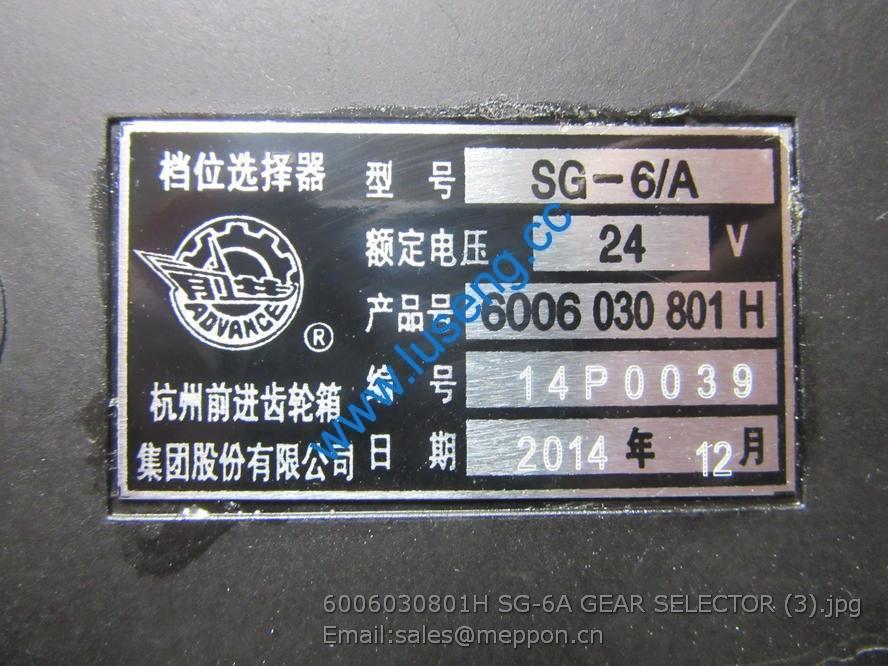

6006030801H SG-6A GEAR SELECTOR W43022230 222-25-02000

1 612600061785 1 惰轮支架 Idle wheel bracket
2 615G60110033 1 调整垫圈 Adjusting washer
3 612600061713 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 90011430009 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 90011430007S 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
6 612630060836 1 发电机惰轮 Idle wheel
7 612600061464 1 多楔带 Ribbed belt
8 612600061295 1 多楔带 Ribbed belt
9 90011260010 1 六角头螺栓 Hexagon bolt
10 612600061256 1 皮带张紧轮 Belt tightener
11 612630060838 1 皮带惰轮 10槽 Belt idle wheel(10 trough)
12 90011430016S 4 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
13 612600012886 1 涨紧轮座 Tension wheel seat

1 614070055 1 机油泵垫片 Oil pump gasket
2 61500070030 1 双级机油泵 Oil pump
3 612600070411 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 90011430008 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 90003802578S 1 六角头螺栓 Hexagon bolt
6 6140756 1 中间齿轮轴 Intermediate gear shaft
7 614070155 1 密封圈 Seal washer
8 612600070364 1 机油泵中间齿轮组件 Oil Pump Idle Gear Assembly

1 90003311410 2 向心球轴承 Centripetal ball bearing
2 90003934732 1 带凸齿的孔用挡圈 Circlip with Teeth for Hole
3 614070061 1 机油泵中间齿轮 Oil pump intermediate gear
4 6140749 1 中间隔圈 Spacer ring

1 90013550021 2 内六角圆柱头螺钉 Inner hexagon screw
2 90013550022 2 内六角圆柱头螺钉 Inner hexagon screw
3 90003932023 11 波形弹性垫圈 Wave spiral washer
4 612600070349 1 机油滤清器总成 Oil fi lte r assembly
5 612600070340 1 支撑架 Carriage
6 90003802411 3 六角头螺栓 Hexagon bolt
7 612600070336 1 机油滤清器托架
8 612600070339 1 支撑板 Supporting plate
9 90003862428 4 内六角圆柱头螺钉 Inner hexagon screw
10 612600070375 1 机油滤座垫片 Oil fi lte r seat gasket

1 61500070051 1 机油滤清器底座组件 Oil fi lte r pedestal assembly
2 61000070005 2 旋装式机油滤芯总成 Rotary fi lte r element assembly

1 614070078 2 垫片 Gasket
2 61500070082 1 集滤器总成 Strainer assembly
3 90003930271 4 平垫圈 Flat washer
4 90003802523S 4 六角头螺栓 Hexagon bolt
5 90011430021 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
6 614070198 1 吸油管总成 Oil suction pipe assembly
