Description

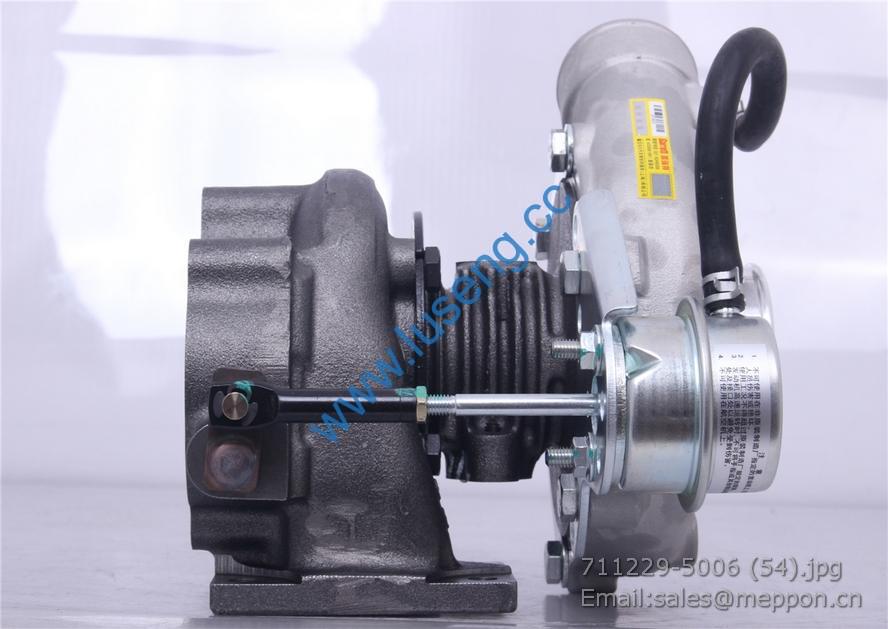

5802040843 NAVECO turbocharger 802250-5004S

1 150-1305015 操纵杆 Steering handle 1
2 Q5003218 销 3.2X18 Pin 3.2X18 1
3 530-1305002A 弯胶管 kneed hose 1
4 Q67627 环箍 27 Hoop 27 1
5 530-1305010C 放水阀部件 Water drain valve parts 1

1 Q150B0830 螺栓 M8X30 Bolt M8X30 3
2 Q40308 垫圈 8 Washer8 6
3 Q40108 垫圈 8 Washer8 6
4 YC4-44 胶盖 44 Rubber cover 44 1
5 530-1306013 节温器盖垫片 Thermostat cover washer 1 易损件 EWP
6 530-1306014 节温器座垫片 Thermostat seat washer 1 易损件 EWP
7 530-1306010B 蜡式调温器 Thermostat 1
8 E02F6-1306003 调温器座 Thermostat seat 1
9 6105Q-1305100 温风进水阀总成 Warm air- water inlet valve assembly 1
10 Q150B0860 螺栓 M8X60 Bolt M8X60 2
11 Q150B0865 螺栓 M8X65 Bolt M8X65 1
12 Q618B03 螺塞 NPT 3/8 Screw plug NPT 3/8 1
13 Q618B02 螺塞 NPT 1/4 Screw plug NPT 1/4 1
14 E0208-1306012 节温器盖 Thermostat cover 1

1 531A-1307015 暖风回水接头盖 Warm air-water return joint cover 1
2 530-1307032 暖风回水接头 Warm air-water return joint 1
3 1530-1307029 水泵盖板垫片 Water pump cover plate gasket 1 易损件 EWP
4 1584-1307020G 水泵 Water pump 1
5 Q150B0870TF2 螺栓 M8X70 Bolt M8X70 2
6 Q1200870TF2 螺柱 M8X70 Bolt M8X70 1
7 Q1200860TF2 螺柱 M8X60 Bolt M8X60 1
8 Q40108 垫圈 8 Washer8 5
9 Q40308 垫圈 8 Washer8 5
10 Q360B08 螺母 M8 Nut M8 2
11 Q150B0860TF2 螺栓 M8X60 Bolt M8×60 1
12 1531-1307050A 水泵皮带 SPA1100 Water pump belt 2 易损件 EWP
13 Q67627 环箍 27 Loop hoop 1
14 Q1840812 螺栓 M8X12 Bolt 2
15 E1101-1307250A 水泵进水管组件 Water inlet pump subassembly 1
16 231-1307016 进水软管 Water inlet hose 1
17 Q67664 环箍 64 Loop hoop 2
18 E1101-1307241C 支架 Bracket 1
19 Q150B0820 螺栓 M8X20 Bolt 2
20 Q40308 垫圈 8 Washer8 2
21 6105Q-3509013 垫圈 Washer 2

1 Q1841025TF2 螺栓 M10×25 Bolt M10×25 4
2 365C-1005105 压盘 Pressure plate 1
3 B3269-1308203 阻尼橡胶圈
Resistance
rubber ring
1
4 E08L1-1308150 风扇组件 Fan subassembly 1
5 E05FX-1308205 风扇减振轴
Fan vibration
damper shaft
1
6 Q1841055TF2 螺栓 M10X55 Bolt 4
