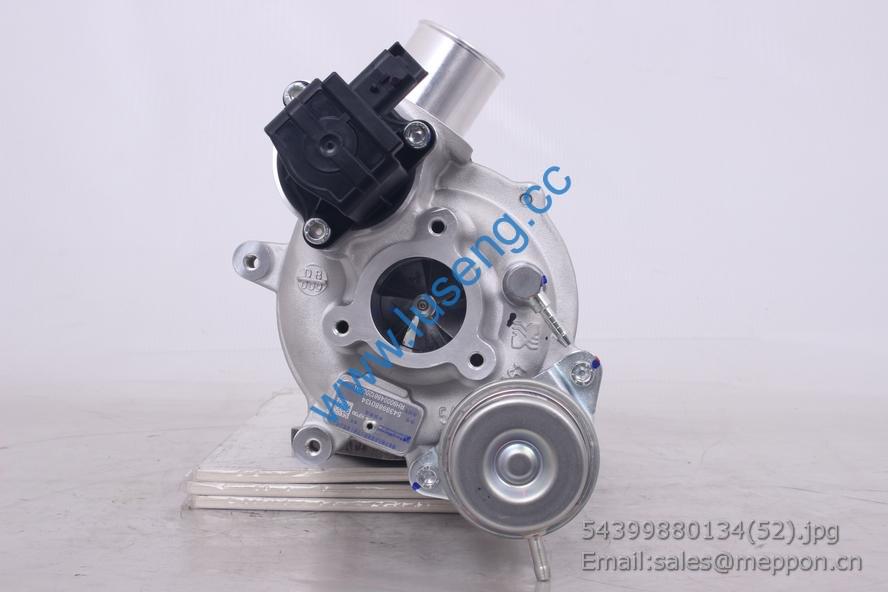

54399880134 BorgWarner turbocharger 54399700134

23 2410201290000 高压油管部件Fuel injection pipe assembly 1 4102Q-12900
24 2410201280000
喷油器总成（KDPF75S01）Injector
assembly（KDPF75S01） 4 4102Q-12800 S525
2410201260008 喷油器回油管部件Oil return pipe 1 4102T-12200C 福田用
2410201260006 喷油器回油管部件Oil return pipe 1 4102T-12200 荣成海山用
26 调整垫片Gasket of injector 4 4102Q-12801 取消
27 GB/T1099 键3×16 Key 3×16 1 GB/T1099
/ 喷油泵正时齿轮连接盘Plate 1 N85T-18005 逐渐取消
2410201200400 喷油泵正时齿轮连接盘Plate 1 /
29 2410201200101 喷油泵齿轮Injector pump gear 1 4102Q-12001B
30 GB/T93 垫圈12 Washer12 1 GB/T93
31 GB/T6171 螺母12×1.25 Nut12×1.25 1 GB/T6171
28
25

1 2410201300400 右连接板Right connecting board 1 4102T-13004
2 GB/T5782 螺栓M8×40 Bolt M8×40 5 GB/T5782
3 2410201300800 放水管固定架Pipe fixture 1 4102T-13008
4 2410201300201 油底壳垫片Gasket of oil pan 1 4102T-13002
5 GB/T70.1 螺钉M8×60 Bolt M8×60 4 GB/T70.1
6 GB/T93 垫圈8 Washer8 12 GB/T93
2410201300600 油底壳Oil pan 1 4102T-13001 整体式逐渐取消
2410201310006 油底壳合件Oil pan part 1 / 分体式
8 2410201300500 机油尺合件Oil dipstick part 1 4102T-13005
9 GB/T119.1 销B16×25 Pin B16×25 2 GB/T119.1
10 2408000140200 机油尺导管焊合件Oil dipstick pipe 1 QC480Q-01402
11 GB/T5782 螺栓M8×85 Bolt M8×85 2 GB/T5782
12 GB/T5782 螺栓M8×70 Bolt M8×70 1 GB/T5782
13 2410201300100 放油螺塞Drainer plug 1 4102Q-13101
14 JB/T982 组合密封垫圈20 1 JB/T982
15 2410201300300 左连接板Left connecting board 1 4102T-13003
16 GB/T93 垫圈16 Washer16 12 GB/T93
17 GB/T5782 螺栓M16×60 Bolt M16×60 12 GB/T5782
18 2409000700700 双头螺栓Bolt 8 QC495T-07007
19 GB/T6177.1 六角法兰面螺母M8 Nut M8 8 GB/T6177.1
20 GB/T5783 螺栓M10×40 Bolt M10×40 4 GB/T5783
21 GB/T93 垫圈10 Washer10 4 GB/T93
十一、水泵风扇总成（4102T-19000A） Water pump and fan assembly
7
