Description

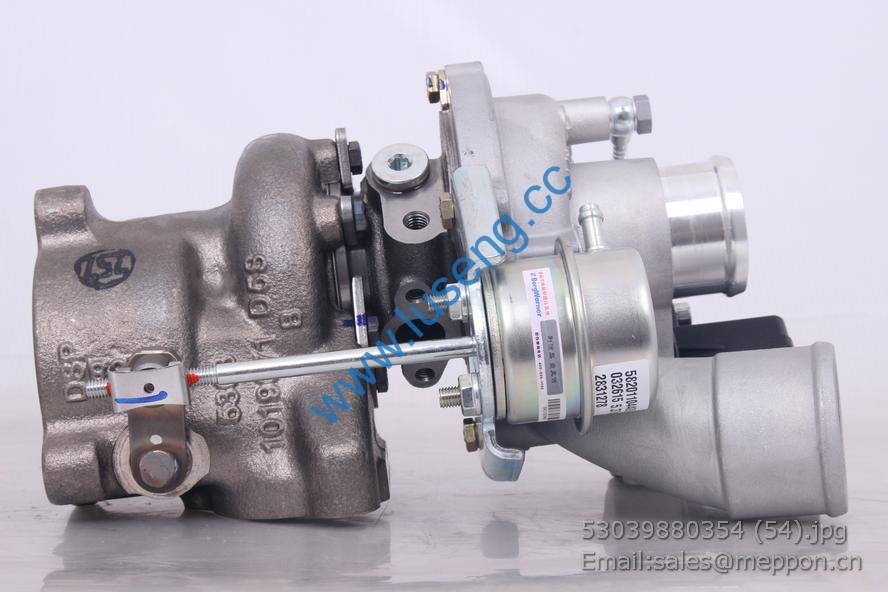

53039880354 BorgWarner turbocharger 53039700354
1 4100QB-01-014 凸轮轴衬套Ⅲ Bushing ( Ⅲ), camshaft 1 HA01106
2 4102QB-02-001A 凸轮轴 Camshaft 1 HA0201
3 4100QB-01-014-Ⅱ 凸轮轴衬套Ⅱ Bushing (Ⅱ), camshaft 1 HA01108
4 GB1096-79 平键A8×22 Flat key A8×22 1
5 GB93-87 垫圈8 Spring washer 8 2
6 GB21-76 螺栓M8×25 Bolt M8×25 2
7 4100QB-01.02-002 惰齿轮挡圈 Antiextrusion ring, idle gear 1 HA01222
8 GB93-87 垫圈12 Spring washer 12 1
9 GB21-76 光六角螺栓M12×32 Bolt M12×32 1
10 4100QB-02-004 凸轮轴止推板 Thrust plate, camshaft 1 HA023
11 4100QB-01-013A 凸轮轴衬套（Ⅰ） Bushing (Ⅰ) .camshaft 1 HA01105
1 4100QB-03.02-008 后辅助摇臂座 Rear bracket, rocker arm shaft 1
2 GB894.1-86-20 轴用弹性挡圈Φ20 Retaining ring Φ20 2
3 4100QB-03.02-006 垫圈 Washer 8
4 4100QB-03.02.01-002 气门摇臂衬套 Bushing, rocker arm 8
5 4100QB-03.02.01-001 气门摇臂 Rocker arm 8
6 4100QB-03.02-001 摇臂座 Rocker arm stand 4
7 4100QB-03.02-004 摇臂轴弹簧 Spring, rocker arm shaft 3
8 495QA-02-006 气门推杆 Push rod 8 HA025
9 495QA-02-005 气门挺柱 Tappet 8 HA024
10 4100QBZ-03-001A 排气门 Exhaust valve 4 HA03159
11 4100QBZ-03.01-003A 排气门座 Exhaust valve seat insert 4
12 4100QB-1A-03-003A 气门外弹簧 Outer spring 8 HA0345
13 4100QB-1A-03-004A 气门内弹簧 Inner spring 8 HA0347
14 4100QB-1A-03-005 气门上弹簧座 Valve spring retainer 8 HA031
15 4100QB-03-006C 气门锁夹 Collets, valve 16 HA03136
16 4100QB-03-002A 进气门 Inlet valve 4 HA03157
17 4100QB-03.01-004A 进气门座 Inlet valve seat insert 4 HA03156
18 4100QB-03.01-005 气门导管 Valve guide 8 HA0379
19 4100QB-03.02-007 前辅助摇臂座 Front bracket, rocker arm shaft 1
20 4100QB-03.02-003 摇臂轴 Rocker arm shaft 1 HA03147
21 4100QB-03.02-005A 碗形塞Φ14 Plug Φ14 2 HA03129
22 4100QB-03.02-002 气门间隙调整螺钉 Adjusting screw, rocker arm 8
23 GB6171-86 螺母M8×1 Nut M8×1 8
24 GB898-88 螺栓AM8×60 Bolt AM8×60 2
1 GB30-76 螺栓M8×16 Bolt.M8×16 6
2 GB93-87 垫圈6 Spring washer. 6 6
3 4100QBL-01-033 喷油泵齿轮 fuel injectiong pump gear 1
4 GB21-76 螺栓M12×22 BoltM12×22 1
5 GB93-87 垫圈12 Spring washer 1
6 4100QB-01.02-002 惰齿轮挡圈 Antiextrusion ring, idle gear 1 HA01222
7 4100QB-05-005A 曲轴正时齿轮 Timing gear, crankshaft 1 HA059
8 4100QB-01.02.01-001A 惰齿轮 Idle gear 1 HA0135
9 4100QB-01.02-001 惰齿轮轴 Shaft, idle gear 1 HA0132
10 4100QB-01.02.01-002A 惰齿轮衬套 Bushing, idle gear 1 HA01109
11 4100QB-02-002A 凸轮轴正时齿轮 Timing gear, camshaft 1 HA022
