Description

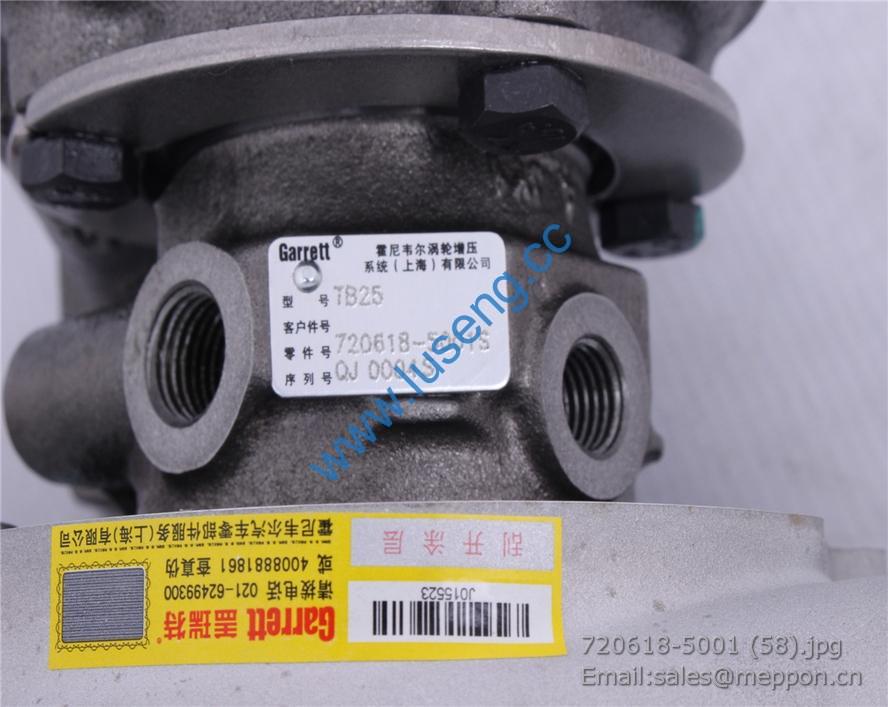

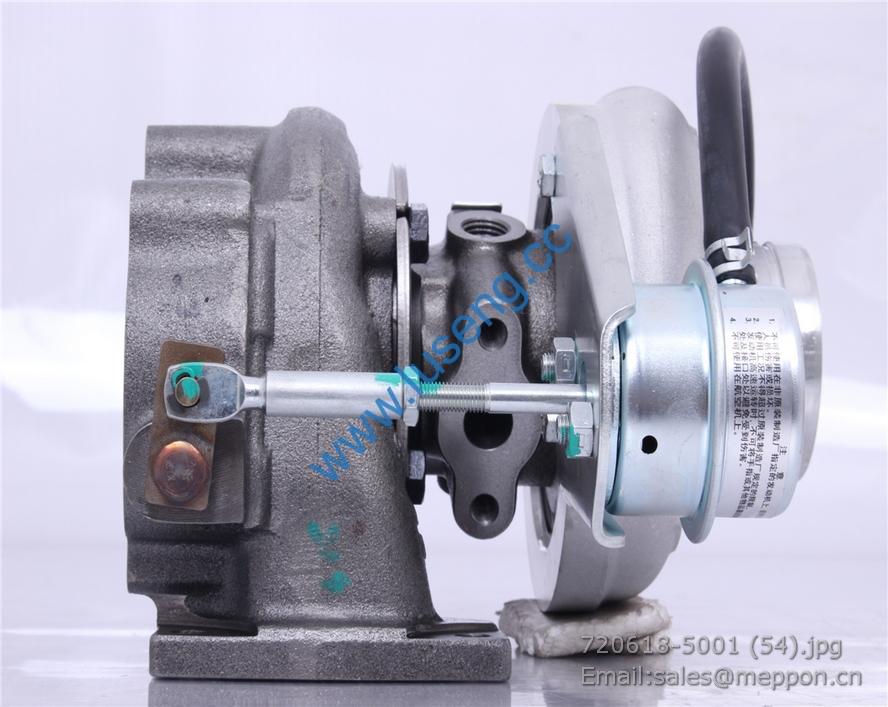

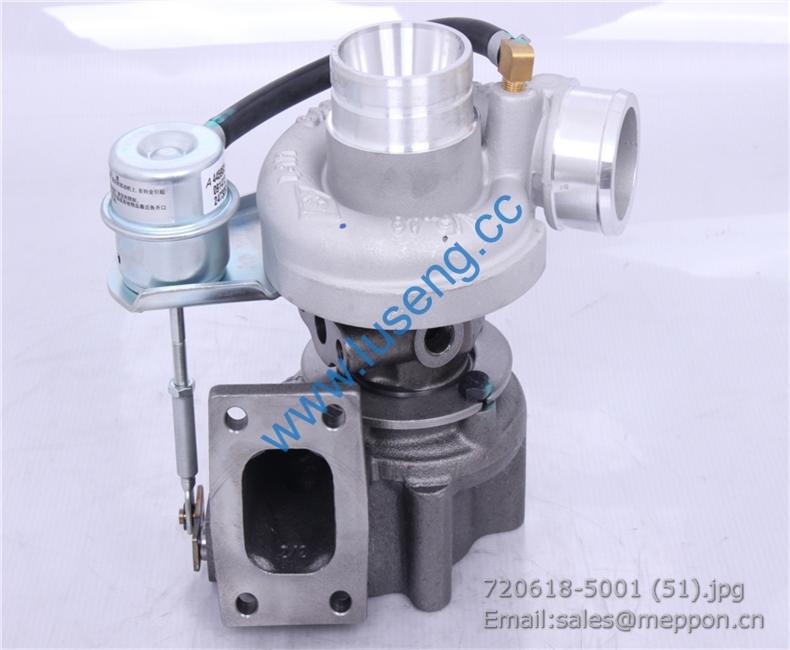

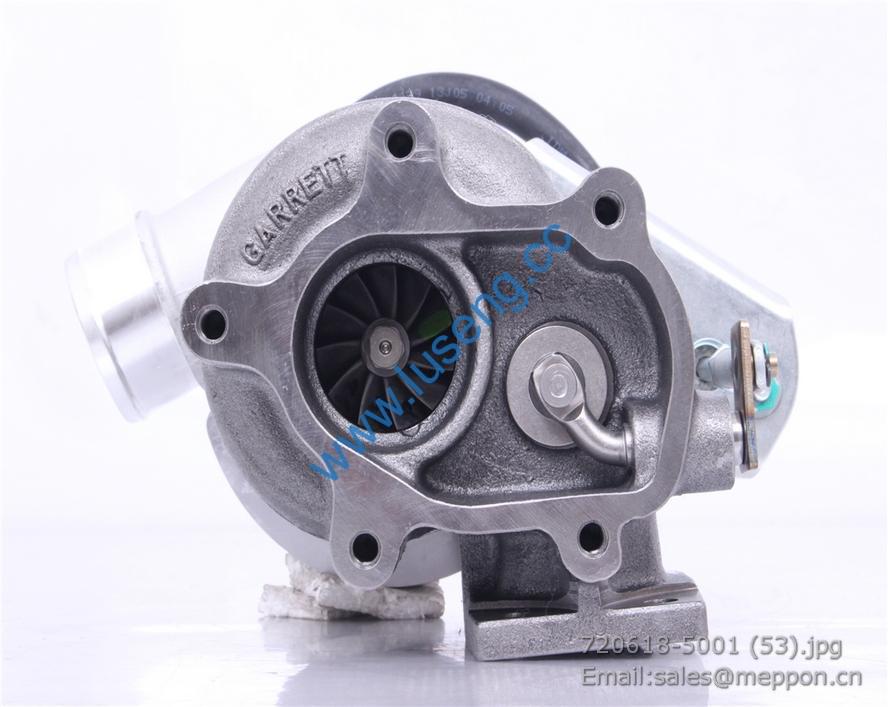

4FD5-390100 FOTON turbocharger 720618-5001S BJ1049AE Light truck
48 HA01529 6105Q-1305010 气缸体放水阀总成 Drain valve assy 1
49 HB03147 GB/T 6170 螺母 Nut M8 4
50 HB063T GB 93 垫圈 Sping washer 8 4
51 HB0622P GB/T 97.1 垫圈 Washer 8 4
52 HB0410 GB 898-88 螺柱 Bolt AM8×35 4
53 HC08 YB132 机油压力传感器 Oil pressure sensor 24V 1
54 HB03100 GB/T 5783 螺栓 Bolt M8×30 4
55 HB063T GB 93 垫圈 Sping washer 8 4
56 HB0622P GB/T 97.1 垫圈 Washer 8 4
57 HA01408 4100QBZL-01.08-008 放水开关接管 Drain cock connector 1
58 HA01892 YN33-01.15.01 机油冷却器总成 Oil cooler assy 1
59 4100QBZL-01.15-003 机油冷却器密封垫片 Oil cooler washer 1
60 HB0453 GB/T 819.1-2000 十字槽沉头螺钉 Cross-recessed countersunk screws M8×20 4
61 4100QBZL-01.15-002 机油冷却器连接板 Connecting board 1
62 4100QBZL-01.15-001 机油冷却器连接板垫片 Washer, connecting board 1
63 HB0622P GB/T 97.1 垫圈 Washer 8 4
64 HB063T GB 93 垫圈 Sping washer 8 4
65 HB03124 GB/T 5782 螺栓 Bolt M8×25 4
66 HA01727 4100QBZL-01.08-001 水阀操作杆 Water valve operation rod 1
67 HA01896 YN33-01.15-004 机冷器出水胶管 Exhaust pipe of cooler 1
68 HB134 ZB J15 001-87 喉箍(不锈钢) Clamp D16-D25 1
1 4100QB-03.02.01A-002 气门摇臂衬套 Valve-rocker arm bush 8
或 4100QB-03.02.01-002 气门摇臂衬套 Valve-rocker arm bush 8
2 4100QB-03.02-006 垫圈 washer φ31 8
3 GB 894.1-1986 挡圈 Retainer ring 20 2
4 4100QB-03.02-007 前辅助摇臂座 Front rocker arm seat 1
5 4100QB-03.02-005A 碗形塞 Blow plug φ14 2
6 4100QB-03.02.01-001 气门摇臂 Valve rocker arm 8
7 HA03136 4100QB-03-006C 气门锁夹 Valve locking clip 16
8 HA031 4100QB-1A-03-005 气门上弹簧座 Valve upper spring seat 8
9 GB/T 1096-2003 键 Key 8×7×22 1
10 GB/T 5783 螺栓 Bolt M12×32-8.8 1
11 GB 93 垫圈 Sping washer 12 1
12 HA01222 4100QB-01.02-002 惰齿轮挡圈 Idle gear retainer ring 1
13 HA022 4100QB-02-002A 凸轮轴正时齿轮 Camshaft timing gear m=3 1
14 GB/T 5783-2000 螺栓 Bolt M8×25 2
15 GB 93-87 垫圈 Sping washer 8 2
16 HA023 4100QB-02-004 凸轮轴止推板 Camshaft thrust sheet 1
17 HA03015 4100QB-03.01-003C 排气门座圈 Seat ring -intake valve 4
18 HA03013 4100QB-03-001C 排气门 Exhaust valve 4
19 HA03016 4100QB-03.01-004C 进气门座圈 Exhaust valve seat ring 4
20 HA03014 4100QB-03-002C 进气门 Intake valve 4
21 HA0379 4100QB-03.01-005 气门导管 Valve duct 8
22 HA03154 4100QB-03.01.01A 气门杆油封 Valve stem oil seal assy 8
