Description

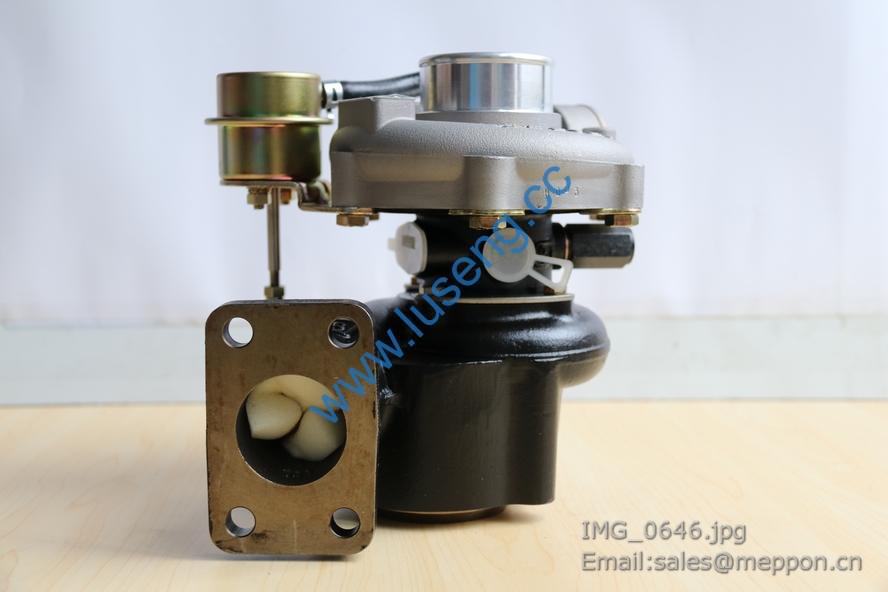

4D125-13.10.10 turbocharger 60Z5805-00-2 HP60

1 Q/YC1820820TF2 螺栓 M8X20 Bolt M8X20 2
2 6105QA-1010150B 油管支架焊接件 Oil pipe bracket welded part 1
3 430-1010001A 垫片结合件 Gasket union part 1
4 Q150B0816TF2 螺栓 M8X16 Bolt M8X16 1
5 430D-1010030 吸油管焊接件 Oil suction pipe weldment 1
6 6105QA-1010130B 滤网总成 Filter screen assembly 1
7 Q150B0860TF2 螺栓 M8X60 Bolt M8X60 1
8 Q40308 垫圈 8 Washer 8 4
9 Q40008 垫圈 8 Washer 8 1
10 430-1010002 管夹 Pipe clamp 1

1 A30-1011013 机油泵中间齿轮轴 Oil pump driven gear shaft 1
2 430-1011014 垫圈-中间传动齿轮 Washer-middle transmission gear 1
3 GB/T276-6203 滚动轴承 6203 Washer-middle transmission gear 2 易损件 EWP
4 Q43040 挡圈 40 Retaining ring 40 1
5 430-1011011 机油泵中间齿轮 Oil pump middle gear 1
6 Q150B1050TF2 螺栓 M10X50 Bolt 2
7 Q40310 垫圈 10 Lock Washer 10 3
8 Q40110 垫圈 10 Lock Washer 10 2
9 6105QA-1010110A 垫片结合件 Assembled washer 2 易损件 EWP
10 Q40108 垫圈 8 Washer 8 4
11 Q40308 垫圈 8 Washer 8 4
12 Q150B0825TF2 螺栓 M8X25 Bolt M8X25 4
13 A30-1011050 机油出油管焊接件 Oil outlet pipe weldment 1
14 A30-1011020A 机油泵 Oil pump 1
15 6105Q-1011015A 机油泵调整垫片 Oil pump adjusting washer 1 易损件 EWP
16 Q341B10 螺母 M10X1 Nut M10X1 1
17 430-1011012 间隔垫 Spacer 1

1 430-1012020A 机油滤清器 Oil filter 1 易损件 EWP

1 A3100-1013010D 机油冷却器 Oil cooler 1
2 Q1840875 螺栓 M8X75 Bolt M8X75 7
3 Q1840880 螺栓 M8X80 Bolt M8X80 3
4 Q1840825 螺栓 M8X25 Bolt M8X25 14
5 Q1840855 螺栓 M8X55 Bolt M8X55 2
6 Q1841425 螺栓 M14X25 Bolt M14X25 1
7 Q18408110 螺栓 M8X110 Bolt M8X110 1
8 A3206-1013115 螺塞 Screw plug 1
9 Q1840850 螺栓 M8X50 Bolt M8X50 7
10 Q1840820 螺栓 M8X20 Bolt M8X20 3
11 A3206-1013116 螺栓 Bolt 1
12 YC24-0820 圆柱销 8X20 Pin 8X20 2
13 A3100-1013001A 机油冷却器垫片 Oil cooler gasket 1 易损件 EWP
