Description

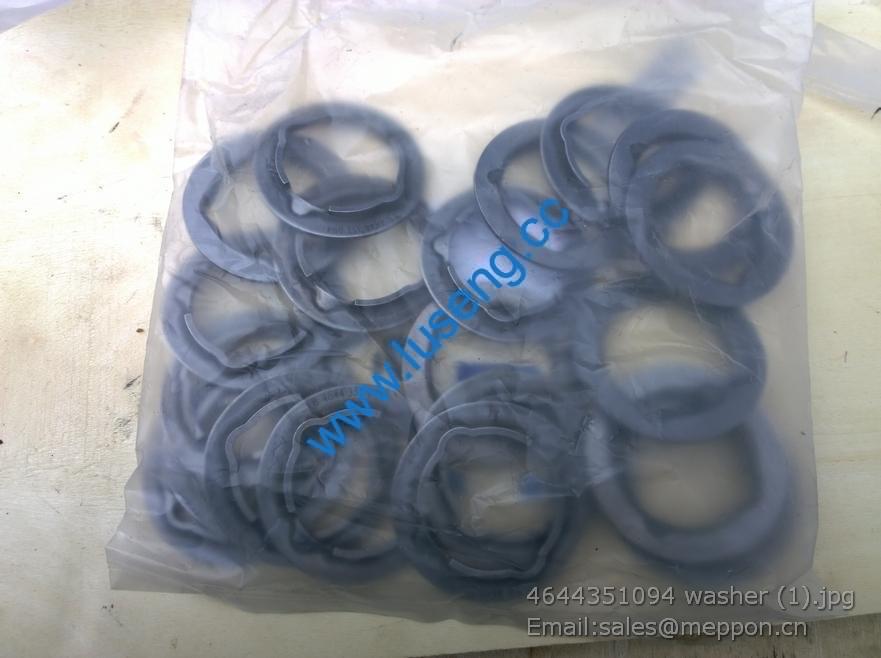

4644351094 thrust washer 4110000076199 4110000076055 SP100492

1 90015050017 2 圆柱销 Straight pin
2 612600020866 1 曲轴 Crankshaft
3 612600020311 6 堵塞 Plug
4 612600020040 1 平键 Flat key
5 612600020723 1 曲轴正时齿轮 Timing gear of crankshaft
6 612600020608 1 法兰 Flange

1 615T1020046 3 飞轮螺栓 Flywheel bolt
2 612600020636 1 飞轮总成 Flywheel assembly
3 612600020165 1 联接盘 Adaptor

1 612600020637 1 飞轮齿圈 Flywheel ring gear
2 615T1020030 1 飞轮 Flywheel

1 90003802578 8 六角头螺栓 Hexagon bolt
2 612600020730 1 曲轴皮带轮 Crankshaft belt pulley
3 612600020833 1 扭振减振器 Torsion vibration damper

1 81560030012 12 活塞销挡圈 Piston pin retainer
2 61560030013 6 活塞销 Piston pin
3 612600030020 6 连杆上瓦 Connecting Rod Upper Shell
4 61560030033 6 连杆下瓦 Connecting Rod Lower Shell
5 61500030009 6 连杆总成 Connecting rod assembly
6 612600030010 6 活塞 Piston
7 612600030051 6 活塞环组件 Piston ring assembly

1 61500030077 6 连杆衬套 Connecting rod bushing
2 61500030008 6 连杆体 Connecting rod body
3 61500030022 6 连杆盖 Connecting rod cover
4 81500030023 12 连杆螺栓 Connecting rod bolt

1 61560030047 6 梯形环 Keystone ring
2 612600030019 6 扭曲锥面环 Conical ring
3 61560030045 6 油环 Oil ring

1 61500040012 1 吊环夹紧块 Hoisting ring clamping block
2 61200040027 2 夹紧块 Clamping block
3 612600040114 12 气门阀杆密封套 Seal washer of valve stem
4 612600040355 6 气缸盖衬垫 Cylinder head gasket
5 61560040040A 6 气缸盖分总成 Cylinder head subassembly
6 61200040023 5 夹紧块 Clamping block
7 615G00040012B 1 吊环夹紧块 Hoisting ring clamping block
8 61200040034 21 带肩螺母 Nut
9 612600040020 2 吊环接块 Hoisting ring plate
10 614010388 2 吊环螺钉 Eye screw
11 61500040009 5 夹紧块 Clamping block
12 612600040452 24 气缸盖主螺栓 Cylinder head main bolt
