Description

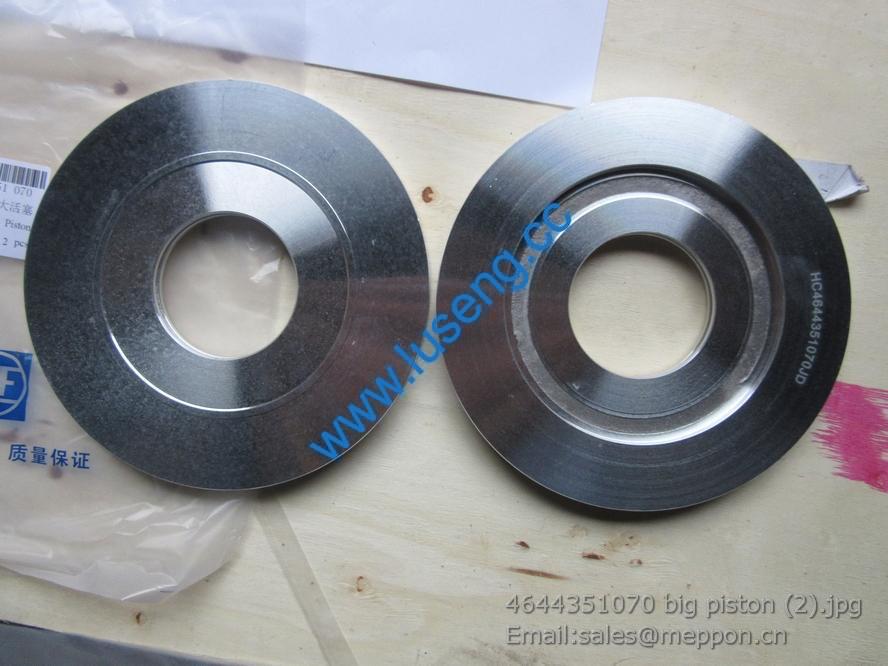

4644351070 4464351070 piston

1 61500010185 7 气缸盖螺栓 Cylinder head bolt
2 612600010735 3 复合垫圈 Washer
3 90003962051 2 六角螺塞 Hexagon plug
4 90003989288 1 碗形塞 Corehole plug
5 61500010100 1 后油封 Rear oil seal
6 612600050042 1 密封垫圈 Seal washer
7 612600011927 1 螺塞 Screw plug
8 614070068 1 安全阀弹簧 Safety valve spring
9 614070069 1 安全阀 Safety valve
10 612630010015 6 气缸套 Cylinder liner
11 61560010047 6 喷嘴组件 Nozzle assembly
12 90003098015 6 密封垫圈 Seal washer
13 90003962621 6 空心螺栓 Hollow bolt
14 90003802493 5 六角头螺栓 Hexagon bolt
15 90003962050 1 内六角螺塞 Inner hexagon plug
16 AZ1500070097 1 主油道限压阀总成
Pressure limiting valve assembly of
main oil passage
17 90003862428 22 内六角圆柱头螺钉 Inner hexagon screw
18 188250083 22 自锁垫圈 Washer
19 612600013918 2 下止推片 Thrust washer (lower)
20 612600013917 2 上止推片 Thrust washer (upper)
21 81400010032 2 密封圈 Seal washer
22 81500010046 7 主轴瓦组件 Main Bearing Set
23 90003901604 6 圆柱销 Straight pin
24 90003909626 6 弹性圆柱销 Spring dowel pin
25 61500010185S 14 气缸盖螺栓 Cylinder head bolt
26 612600013774 1 气缸体预装配 Pre-assembled cylinder block

1 90003982121 4 碗形塞 Corehole plug
2 612600013437 2 拉铆钉 Tensioned rivet
3 612600013705 1 气缸体 Cylinder block
4 90003989215 3 碗形塞 Corehole plug
5 90003989289 4 碗形塞 Corehole plug
6 612600013731 1 曲轴箱 Crankshaft case
7 614010217 4 主轴承螺栓 Main bearing bolt
8 614010114 10 主轴承螺栓 Main bearing bolt
9 90003901604A 3 圆柱销 Straight pin
10 612600010990 1 凸轮轴衬套 Camshaft bushing
11 61560010029 6 凸轮轴衬套 Camshaft bushing
12 90003989204 1 碗形塞 Corehole plug
13 90003989210 6 碗形塞 Corehole plug

1 61000010134 1 密封圈 Seal washer
2 612600011783 1 正时齿轮室 Timing gear case
3 612600013483 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 90011430008 3 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 61500010037 1 前油封 Oil seal(front)
6 612600010735 2 复合垫圈 Washer
7 90014400019 1 密封垫圈 Seal washer
8 90003802402 1 六角头螺栓 Hexagon bolt
9 90003962051 2 六角螺塞 Hexagon plug
10 288730061 1 O型密封圈 O shaped seal washer

1 90003901418 2 圆柱销 Straight pin
2 612600012830 1 盖板 Cover shield
3 90011430008 4 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 612600080201 3 密封垫圈 Seal washer
5 90011430016 4 六角法兰承面带齿螺栓 Toothed bolt
6 90003862427 3 内六角圆柱头螺钉 Inner hexagon screw
7 612600061711 5 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
8 612600010564 1 指针 Pointer
9 90011430029 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
10 90003120602 1 密封圈 Seal washer

1 612600111639 2 管夹总成 Pipe Clamp Assembly
2 612600114377 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
3 612600013168 1 油气分离器组件 Oil-gas separator assembly
4 612600012859 1 油路连接胶管 Oil Connecting Rubber Pipe
5 90003989300 2 卡箍 Clamp
6 612600012595 1 回油管接头 Fuel return pipe nipple
7 90011270002 1 六角头螺栓全螺纹
Hexagon bolt, full thread
M10×30GB/T5783-10.9-Zn.D
8 90003931122 1 弹簧垫圈 Spring washer
9 612600011361 1 管夹总成 Pipe Clamp Assembly
10 612600012525 1 油路连接胶管 Oil Connecting Rubber Pipe
11 90003989340 1 卡箍 Clamp
