Description

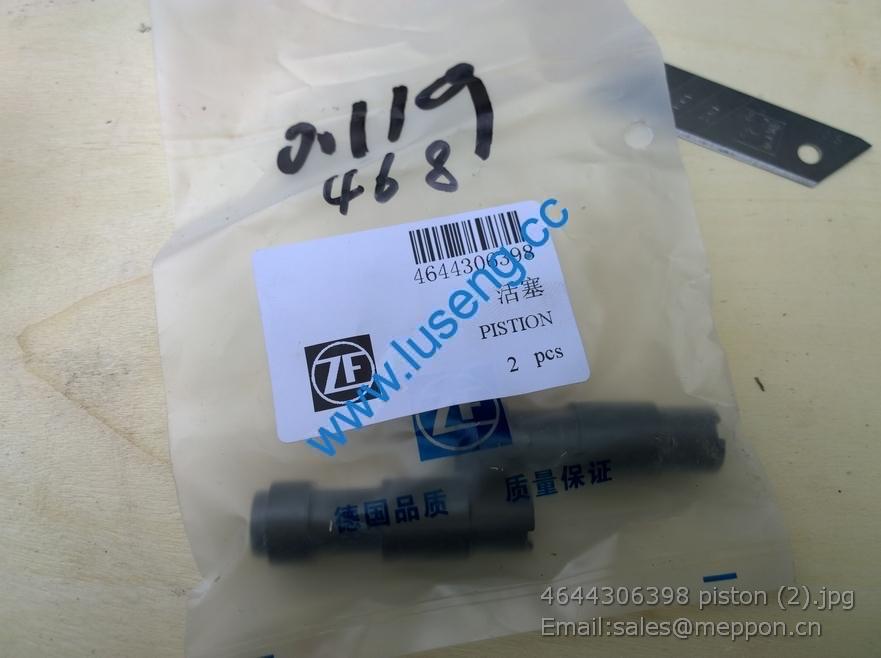

4644306398 piston 7200001758 SP106695
1 90003862427 2 内六角圆柱头螺钉 Inner hexagon screw
2 188250083 4 自锁垫圈 Washer
3 612600113242 1 增压器进油管 Oil inlet pipe for turbocharger
4 612600114275 1 进油管垫片 Fuel inlet pipe gasket
5 90003559563 1 卡套 Cutting sleeve
6 90003559513 1 管接头螺母 Pipe coupling nut
7 61260110048 1 回油管法兰垫片 Fuel return pipe fl ang e washer
8 612600114052 1 增压器回油管总成 Oil return pipe assembly
9 61460070014 2 回油管螺栓 Bolt for oil return pipe
1 61560110165 1 连接弯管 Connecting elbow
2 61560110226 1 卡箍 Clamp
3 190320035 1 密封圈 Seal washer
4 99012340027 1 密封圈 Seal washer
5 90003932023 1 波形弹性垫圈 Wave spiral washer
6 90003862443 1 内六角圆柱头螺钉 Inner hexagon screw
7 612600110053 1 进气弯管 Intake elbow
8 90003989312 2 软管卡箍 Hose clip
9 612600110962 1 带纤维夹层橡胶软管 Rubber hose with fi be r layer
1 90003989340 2 卡箍 Clamp
2 612600130540 1 气路连接胶管 Air Connecting Rubber Pipe
3 90011430001 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 612600111644 2 单管夹子总成 Pipe clip assembly
5 90011430040 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
6 612600012884 1 支架板 Bracket plate
7 90012290001 1 六角法兰面螺母 Hexagon Flange Nut
8 90003888453 1 2型全金属六角锁紧螺母
Prevailing Torque Type All-metal
Hexagon Nut,
9 612600130651 1 空压机总成 Air compressor assembly
10 13023361 5 组合密封垫圈 Unit seal washer
11 612600130500 1 空压机进水管 Water inlet pipe of air compressor
12 90003962627 2 空心螺栓 Hollow bolt
13 30800010003 1 密封圈 Seal washer
14 612600130326 1 空压机润滑油管总成 Oil pipe of air compressor assembly
15 612600130333 2 空心螺栓 Hollow bolt
16 612600080246 4 密封垫圈 Seal washer
17 90011430017S 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
18 90011430032 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
19 612600130533 1 空压机回水管 Water return pipe of air compressor
1 612600130496 1 空压机组件 Air compressor assembly
2 612600130309 1 空气压缩机齿轮 Air compressor gear
1 612600130499 1 进气接头 Intake nipple
2 612600130497 1 水冷单缸空压机 Air compressor
3 612600130425 1 排气接头 Exhaust pipe nipple
1 614150004 1 密封垫 Seal washer
2 612600150414 1 油底壳总成 Oil pan assembly
3 614150046 10 油底壳托块 Oil pan block
4 90011430019 12 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 612600150390 2 油底壳托块 Oil pan block
