Description

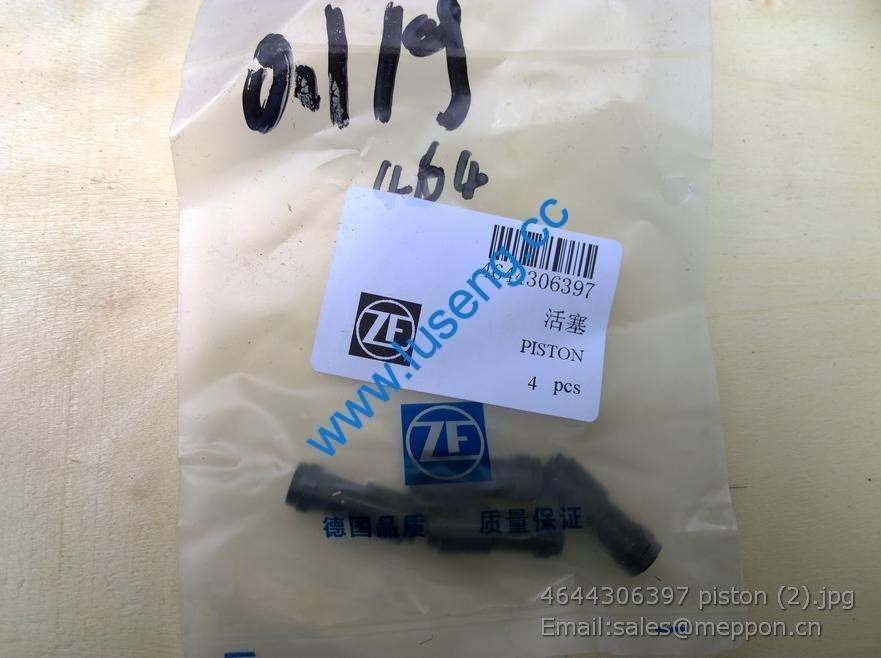

4644306397 piston 7200001729 SP100450

1 90011430018 3 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
2 612600110455 1 盖板 Cover shield
3 612600110456 1 垫片 Gasket
4 612600112242 1 进气管 Intake manifold

1 612600113357 1 空气滤清器支架 Air fi lte r bracket
2 90011430008 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
3 612600080246 1 密封垫圈 Seal washer
4 615G60110001 1 六角头螺栓 Hexagon bolt
5 90003989315 1 软管卡箍 Hose clip
6 612600111826 1 气路连接胶管 Air Connecting Rubber Pipe

1 612600110531 1 前排气歧管 Front exhaust manifold
2 61260110162 4 排气管密封环 Seal washer of exhaust pipe
3 61560110242 6 排气管垫片 Exhaust pipe gasket
4 612600110178 1 后排气歧管 Rear exhaust manifold
5 612600116160 12 排气管螺栓 Exhaust pipe bolt

1 90003888470 10 2型全金属六角锁紧螺母
Prevailing Torque Type All-metal
Hexagon Nut,
2 612601111005 1 增压器 Turbocharger
3 61460110056 1 增压器垫片 Turbocharger washer
4 612600110282 6 双头螺柱 Stud
5 81560110187 4 双头螺柱 Stud

1 90003862427 2 内六角圆柱头螺钉 Inner hexagon screw
2 188250083 4 自锁垫圈 Washer
3 612600113242 1 增压器进油管 Oil inlet pipe for turbocharger
4 612600114275 1 进油管垫片 Fuel inlet pipe gasket
5 90003559563 1 卡套 Cutting sleeve
6 90003559513 1 管接头螺母 Pipe coupling nut
7 61260110048 1 回油管法兰垫片 Fuel return pipe fl ang e washer
8 612600114052 1 增压器回油管总成 Oil return pipe assembly
9 61460070014 2 回油管螺栓 Bolt for oil return pipe
