Description

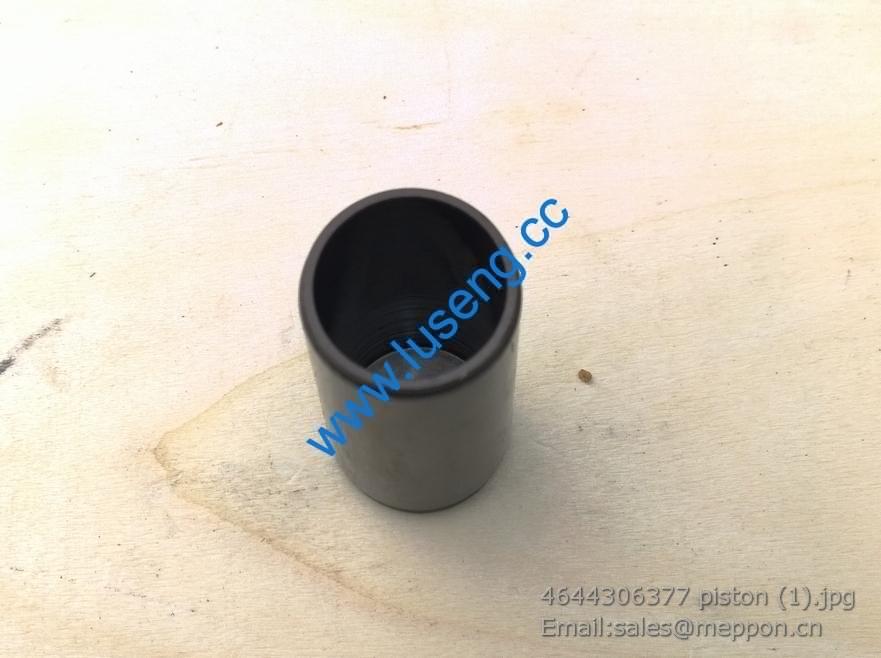

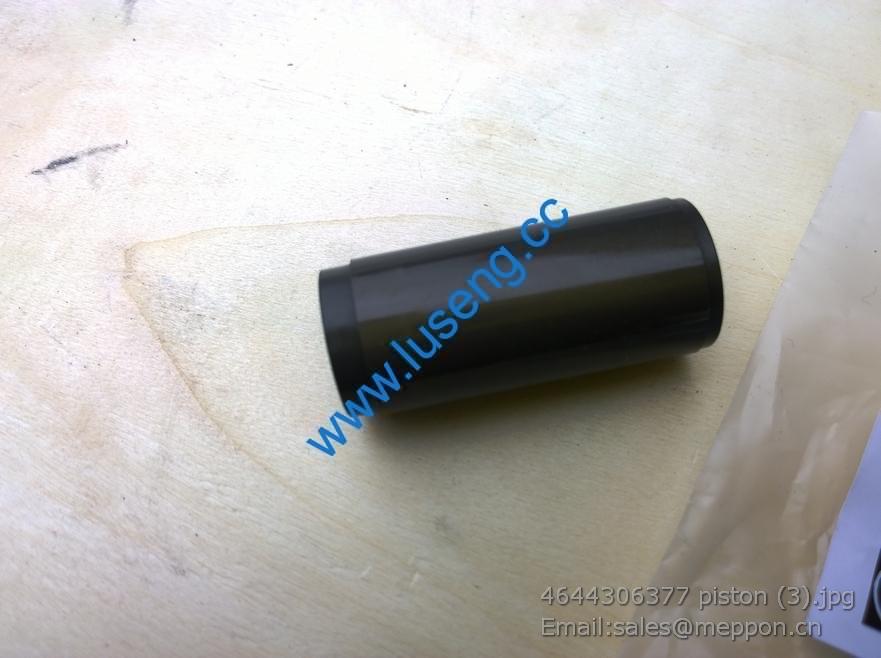

4644306377 VALVE ROD 7200001719 SP100444

1 90011270008 2 六角头螺栓 全螺纹
2 612600061720 4 六角法兰面承面带齿螺母 Hexagon Flange Nut
3 615G00100011A 1 支架板 Bracket plate
4 612600100154 1 螺栓 Bolt
5 612600061721 1 六角法兰面承面带齿螺母 Hexagon Flange Nut
6 90003802527 2 六角头螺栓 Hexagon bolt
7 90003932024 2 波形弹性垫圈 Wave spiral washer
8 90011430025 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
9 612600100138 1 风扇托架总成 Fan bracket assembly

1 90003802523 6 六角头螺栓 Hexagon bolt
2 90003931122 6 弹簧垫圈 Spring washer
3 612600100113 1 风扇 Fan
4 615G00100007 1 风扇联接盘 Connecting disk of fan
5 90003813434 6 双头螺柱 Stud
6 90003888451 6 2型全金属六角锁紧螺母
Prevailing Torque Type All-metal
Hexagon Nut,

1 612600090682 1 多楔带 Ribbed belt
2 612600061349 1 多楔带 Ribbed belt
3 90011400001 1 六角法兰面螺栓 加大系列
4 612600061510 1 张紧轮总成 Tensioning wheel assembly
5 90003871252 4 1型六角螺母 Hexagon nut (I)
6 90003931102 4 弹簧垫圈 Spring washer
7 612600012921 1 张紧轮座 Tension wheel seat
8 90003813429S 4 双头螺柱 Stud

1 90011410003 16 六角法兰面螺栓 Hexagon Flange Bolt
2 90003932023 5 波形弹性垫圈 Wave spiral washer
3 612600112056 1 支撑块 Supporting plate
4 612600012598 1 放水阀总成 Valve
5 90011410009 5 六角法兰面螺栓 Hexagon Flange Bolt
6 90011410010 2 六角法兰面螺栓 Hexagon Flange Bolt
7 612600012909 1 机油冷却器盖 Oil cooler cover
8 614010084B 1 机油冷却器盖垫片 Oil cooler cover gasket
9 90003862419S 4 内六角圆柱头螺钉 Inner hexagon screw
10 61500010334 1 机油冷却器 Oil cooler
11 81400010032 2 密封圈 Seal washer
