Description

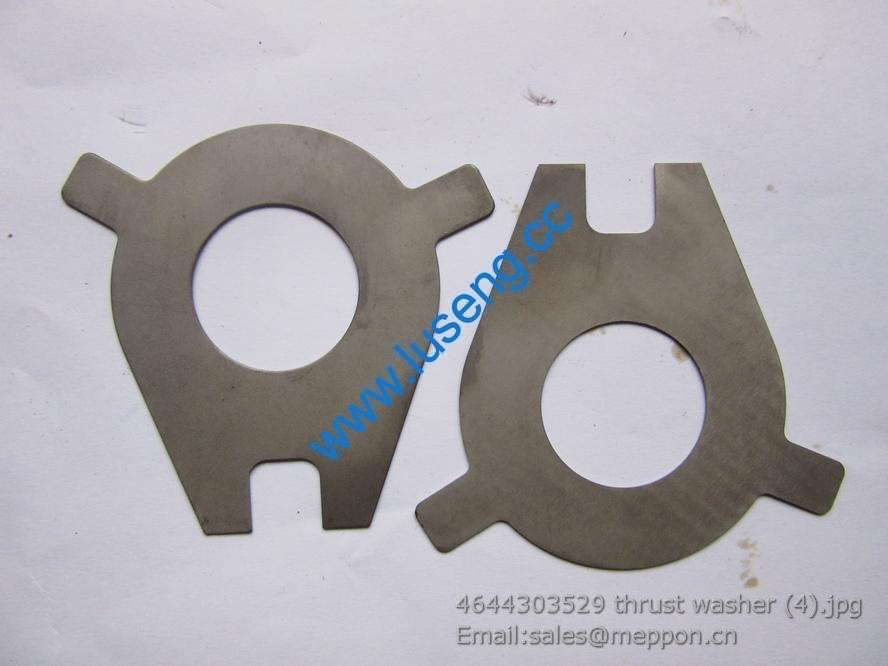

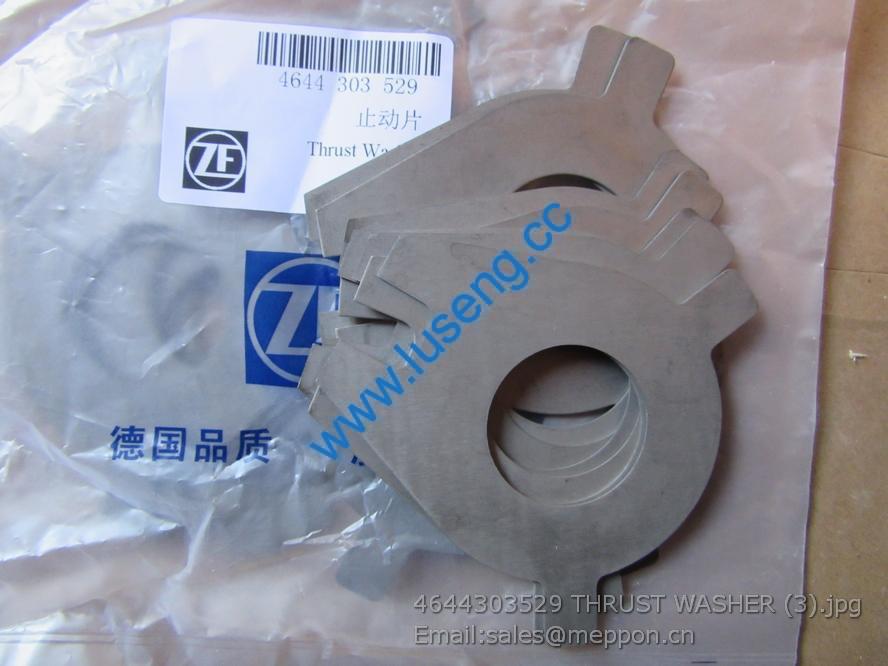

4644303529 THRUST WASHER 4110000367100 SP100436

1 61560030047 6 梯形环 Keystone ring
2 612600030019 6 扭曲锥面环 Conical ring
3 61560030045 6 油环 Oil ring

1 61500040012 1 吊环夹紧块 Hoisting ring clamping block
2 61200040027 2 夹紧块 Clamping block
3 612600040114 12 气门阀杆密封套 Seal washer of valve stem
4 612600040355 6 气缸盖衬垫 Cylinder head gasket
5 61560040040A 6 气缸盖分总成 Cylinder head subassembly
6 61200040023 5 夹紧块 Clamping block
7 615G00040012B 1 吊环夹紧块 Hoisting ring clamping block
8 61200040034 21 带肩螺母 Nut
9 612600040020 2 吊环接块 Hoisting ring plate
10 614010388 2 吊环螺钉 Eye screw
11 61500040009 5 夹紧块 Clamping block
12 612600040452 24 气缸盖主螺栓 Cylinder head main bolt

1 612600040099 6 喷油器衬套 Injector bushing
2 406060010 6 环状密封圈25.2*3DR100N05040 Seal washer
3 90003989294 24 碗形塞 Corehole plug
4 81560040037 6 排气门座 Exhaust valve seat
5 61560040057 6 进气门座 Intake valve seat
6 61560040040B 6 气缸盖 Cylinder head
7 90003989721 6 碗形塞片 Corehole plug
8 90003989277 6 碗形塞片 Corehole plug
9 90003989725 6 碗形塞片 Corehole plug
10 612600040113 12 气门导管 Valve guide

1 612600040636 8 六角法兰面螺栓 Hexagon Flange Bolt
2 614040065 4 气缸盖罩 Cylinder head cover
3 614040021 4 气缸盖罩衬垫 Cylinder head cover gasket

1 612600040636 1 六角法兰面螺栓 Hexagon Flange Bolt
2 612600040133 1 分体缸盖罩组 Cylinder head cover Assy
3 614040021 1 气缸盖罩衬垫 Cylinder head cover gasket
4 90011410008 1 六角法兰面螺栓 Hexagon Flange Bolt
