Description

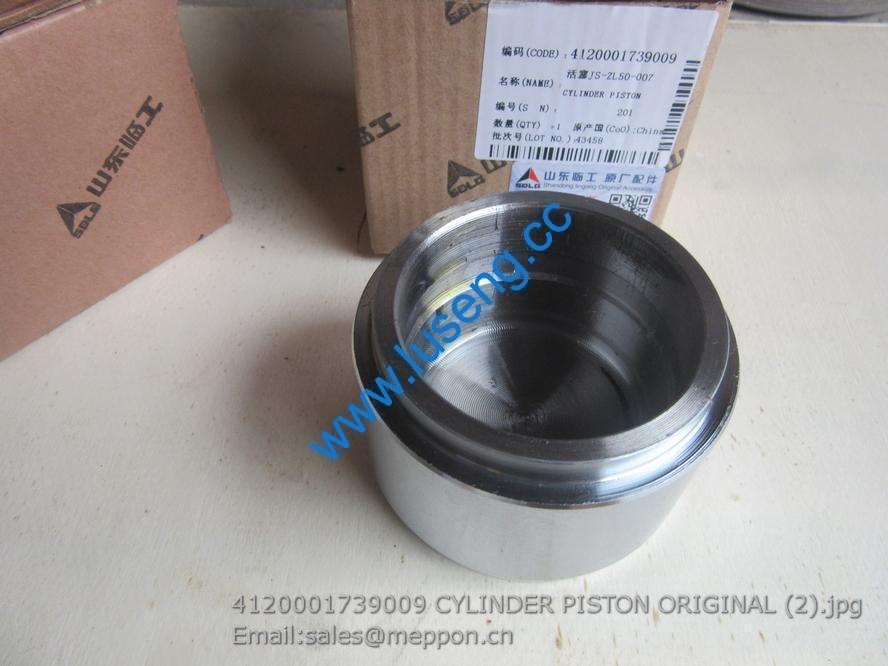

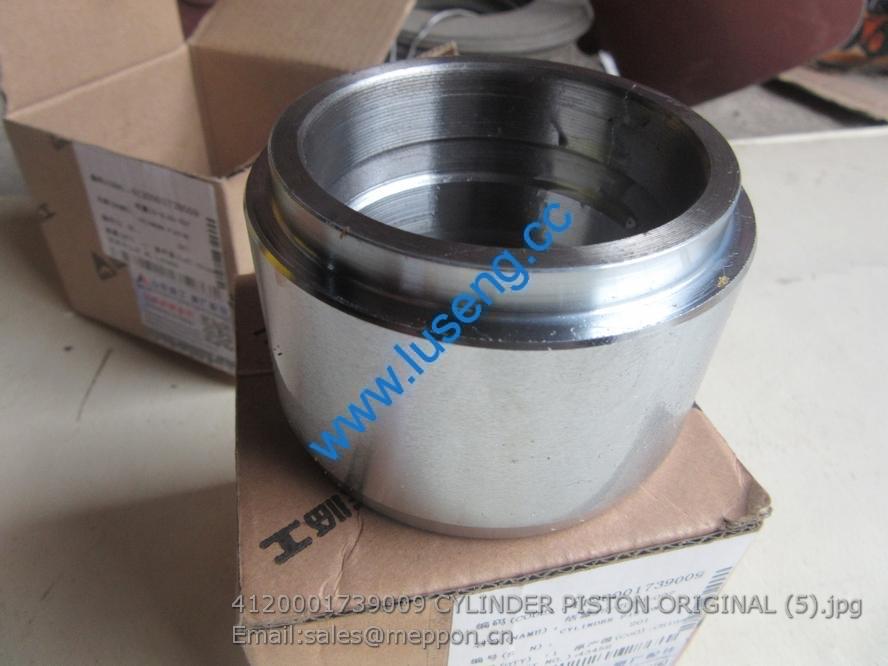

4120001739009 CYLINDER PISTON ORIGINAL SDLG

1 01177981 11 弹簧垫圈 Spring washer
2 90011350088 2 六角头螺栓 Hexagon bolt
3 13024408 4 六角头螺栓 Hexagon bolt
4 01139584 1 六角头螺栓 Hexagon bolt
5 01111151 5 六角头螺栓 Hexagon bolt
6 13023357 1 组合密封垫圈 Unit seal washer
7 13050914 1 齿轮端前墙盖分总成 Front wall cover subassembly (gear end)

1 13039941 1 前端盖 Front end cover
2 06214722 2 O型密封圈 O shaped seal washer
3 12165572 1 螺塞 Screw plug
4 01161340 1 O型密封圈 O shaped seal washer
5 13031548 1 呼吸器 Breather
6 01118641 1 密封垫圈 Seal washer
7 01111096 1 六角头螺栓 Hexagon bolt
8 12188100 1 径向密封圈组件 Radial seal washer assembly
9 01151462 1 内六角圆柱头螺钉 Inner hexagon screw
10 12190581 1 轴 前墙盖 Shaft (Front wall cover)
11 01137083 1 六角头螺栓 Hexagon bolt
12 01112339 1 六角头螺栓 Hexagon bolt
13 01112416 1 六角头螺栓 Hexagon bolt
14 13020237 1 盖 Cover

1 01151569 6 六角头螺栓 Hexagon bolt
2 01177981 6 弹簧垫圈 Spring washer
3 13032177 6 垫片 Gasket
4 13038438 6 冷却喷嘴组件 Cooling nozzle assembly
5 01166001 6 O型密封圈 O shaped seal washer

1 13022800 1 油路连接胶管 Oil Connecting Rubber Pipe
2 12151665 1 卡箍 Clamp
3 13037977 1 油气分离器组件 Oil-gas separator assembly
4 01132562 1 平垫圈 Flat washer
5 01112829 1 2型六角螺母 Hexagon nut (II)
6 13039655 2 卡箍 Clamp
7 12270389 1 弹簧 Spring
8 13031742 1 软管 Hose
9 01112339 1 六角头螺栓 Hexagon bolt
10 01177981 1 弹簧垫圈 Spring washer
11 13026585 1 内六角圆柱头螺钉 Inner hexagon screw
12 01178366 1 弹簧垫圈 Spring washer
13 01151002 1 平垫圈 Flat washer
14 13024161 1 支架 Bracket
