Description

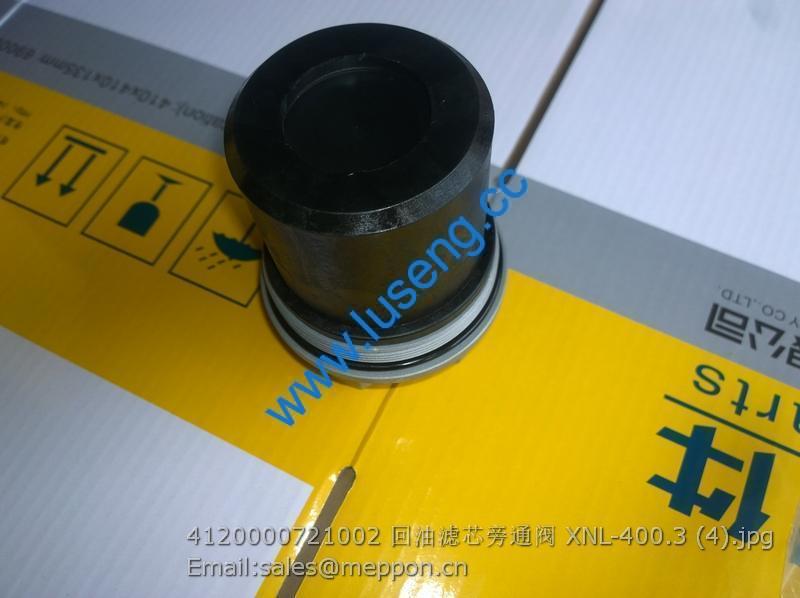

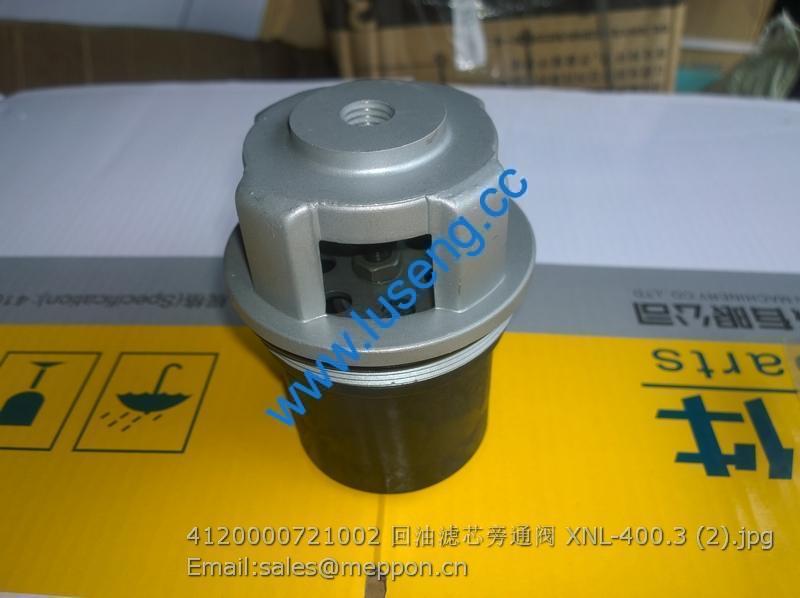

4120000721002 回油滤芯旁通阀 XNL-400.3 SDLG FILTER
1 4120000553102 活塞杆HSGL-90/50*424-1 Piston rod Y 1
2 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 1
3 4120000553101 密封件包 Sealing ring kit Y 1
4 4120000553101 密封件包 Sealing ring kit Y 1
5 4120000553101 密封件包 Sealing ring kit Y 1
6 4120000553101 密封件包 Sealing ring kit Y 2
7 4120000553107 导向套HSGL-90/50*424-3 Guide ring Y 1
8 4120000553101 密封件包 Sealing ring kit Y 2
9 4120000553109 缸体HSGL-90/50*424-4 Cylinder tube Y 1
10 4120000553101 密封件包 Sealing ring kit Y 1
11 4120000553101 密封件包 Sealing ring kit Y 2
12 4120000553101 密封件包 Sealing ring kit Y 1
13 4014000237 螺钉GB70.1-M6*16-8.8 Screw Y 1
14 4120000553114 活塞HSGL-90/50*424-5 Piston Y 1
15 4021000050 关节轴承GB9163-GE50ES-2RS Bearing Y 1
16 4015000014 挡圈GB893.1-75-65Mn Retaining ring Y 1
17 4120000553115 轴套HSGL-90/50*424-2 Bushing Y 2
18 4120000553101 密封件包 Sealing ring kit Y 1
1 4015000014 挡圈GB893.1-75-65Mn Retaining ring Y 1
2 4021000050 关节轴承GB9163-GE50ES-2RS Bearing Y 1
3 4120000553004 密封件包 Sealing ring kit Y 1
4 4120000553005 活塞 Cylinder piston Y 1
5 4120000553004 密封件包 Sealing ring kit Y 2
6 4120000553004 密封件包 Sealing ring kit Y 1
7 4120000553006 活塞杆 Piston rod Y 1
8 4120000553007 缸体 Tube Y 1
9 4120000553004 密封件包 Sealing ring kit Y 1
10 4120000553004 密封件包 Sealing ring kit Y 1
11 4120000553004 密封件包 Sealing ring kit Y 1
12 4120000553004 密封件包 Sealing ring kit Y 1
13 4120000553004 密封件包 Sealing ring kit Y 1
14 4120000553008 缸盖 Cover Y 1
15 4120000553004 密封件包 Sealing ring kit Y 1
16 4120000553010 衬套 Bushing Y 1
17 4120000553004 密封件包 Sealing ring kit Y 2
1 29220001311 后桥右油管 Brake pipe Y 1
2 4041001028 软管LGB153-202190 Hose assembly Y 1
3 4011000089 螺栓GB5783-M12*30EpZn-8.8 Bolt Y 4
4 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 4
5 29220008451 直接头 Nipple Y 2
6 29220008911 至切断阀气管 Hose assembly Y 1
7 4041001208 软管LGB145-205120 Hose assembly Y 1
8 29220000971 至前桥油管 Hose assembly Y 1
9 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 3
10 29010000031 管夹 Clamp Y 3
11 29220001191 直接头 Nipple Y 5
12 4011000281 螺栓GB16674-M6*40EpZn-8.8 Bolt Y 2
13 4120002025 梭阀VS22 Shuttle valve Y 1
14 4041001248 软管LGB145-205060 Hose assembly Y 1
15 4041001244 软管LGB145-205036 Hose assembly Y 1
16 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 1
17 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 10
18 29220000861 前桥右油管 Brake pipe Y 1
19 29220000131 三通接头 Three-way nipple Y 2
20 29220000851 前桥左油管 Brake pipe Y 1
21 4120001795 气制动阀LY60F Brake valve Y 2
22 4130000521 制动灯开关YK209K Light switch Y 2
