Description

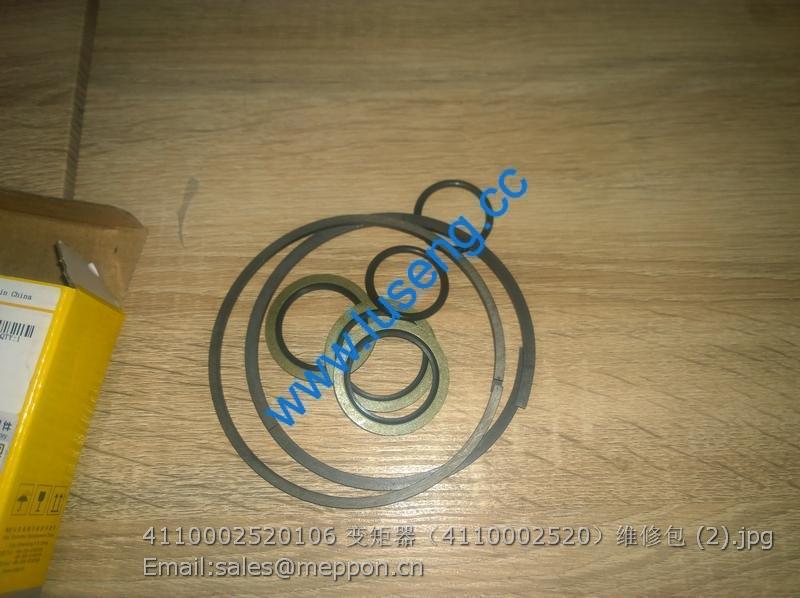

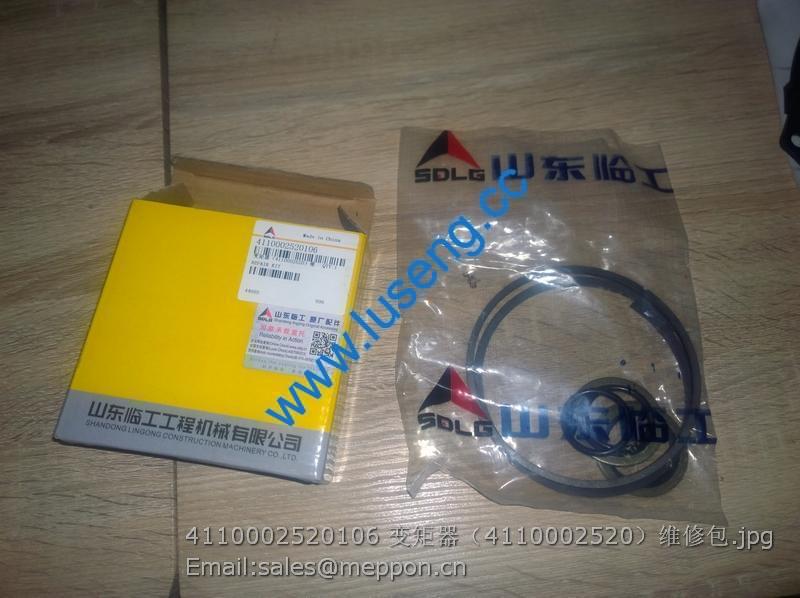

4110002520106 TORQUE COBVERTER 4110002520 SERVICE KIT
1 4030000565 吸油胶管HG4-763-64*305 Hose assembly Y 1
2 4017000013 喉箍JB8870-d90 Clamp Y 4
3 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
4 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
5 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
6 4120001953 双联泵JHP2100/Gj0010-XF Gear pump Y 1
7 29110000042 泵用密封垫 Gasket Y 1
8 4041000027 分体法兰LGB117-312551 Flange half Y 1
9 4011000475 螺栓GB16674-M10*30EpZn-8.8 Screw Y 12
10 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
11 29200005051 优先阀进油钢管 Pipe Y 1
12 4041000043 分体法兰LGB117-310490 Flange half Y 2
13 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2
14 29190008941 转向泵出油胶管 Hose assembly Y 1
15 29190008011 选择阀进油管 Hose assembly Y 1
16 29190007921 直通接头体 Nipple Y 1
17 4030000057 垫圈JB1002-14-T2 Washer Y 3
18 29190008931 先导泵回油管 Hose assembly Y 1
19 4011000339 螺栓JB999-M14*1.5*28EpZn-35 Bolt Y 1
20 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 4
21 4041000011 分体法兰LGB117-314650 Flange half Y 1
22 4030000235 O形圈GB3452.1-43.7*3.55G O-ring Y 1
23 29190000041 转向泵吸油钢管 Pipe Y 1
24 29190008891 出油块 Block Y 1
25 4011000476 螺栓GB16674-M10*70EpZn-8.8 Bolt Y 4
26 4041000150 直接头LGB120-01814 Nipple Y 1
27 4041000767 O形圈LGB168-11124 O-ring Y 1
28 4041001063 组合接头LGB143-01810 Nipple Y 1
29 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1
1 4041000187 直接头LGB120-02622 Nipple Y 1
2 4041000771 O形圈LGB168-11924 O-ring Y 1
3 4041001117 软管LGB165-010170 Hose assembly Y 1
4 4041001219 软管LGB127-010213 Hose assembly Y 1
5 4041001054 软管LGB127-010200 Hose assembly Y 1
6 4041000564 直接头LGB120-02620 Nipple Y 4
7 4041000783 O形圈LGB168-11724 O-ring Y 4
8 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 4
9 29200008321 固定架 Bracket Y 1
10 29200008332 橡胶板 Rubber plate Y 2
11 29200008341 压板 Plate Y 1
12 4011000136 螺栓GB16674-M10*85EpZn-8.8 Bolt Y 2
13 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2
14 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4
15 4041000131 直接头LGB120-01412 Nipple Y 2
16 4041000784 O形圈LGB168-10924 O-ring Y 2
17 4041001049 软管LGB128-003085 Hose assembly Y 1
18 4041000084 直接头LGB155-01214 Nipple Y 2
19 4030000285 O形圈GB3452.1-12.5*2.65G O-ring Y 2
20 4120002116 优先阀VLE-150S Priority valve Y 1
21 4011000053 螺栓GB5782-M10*90EpZn-8.8 Bolt Y 2
22 4041000088 直接头LGB155-23326 Nipple Y 1
