Description

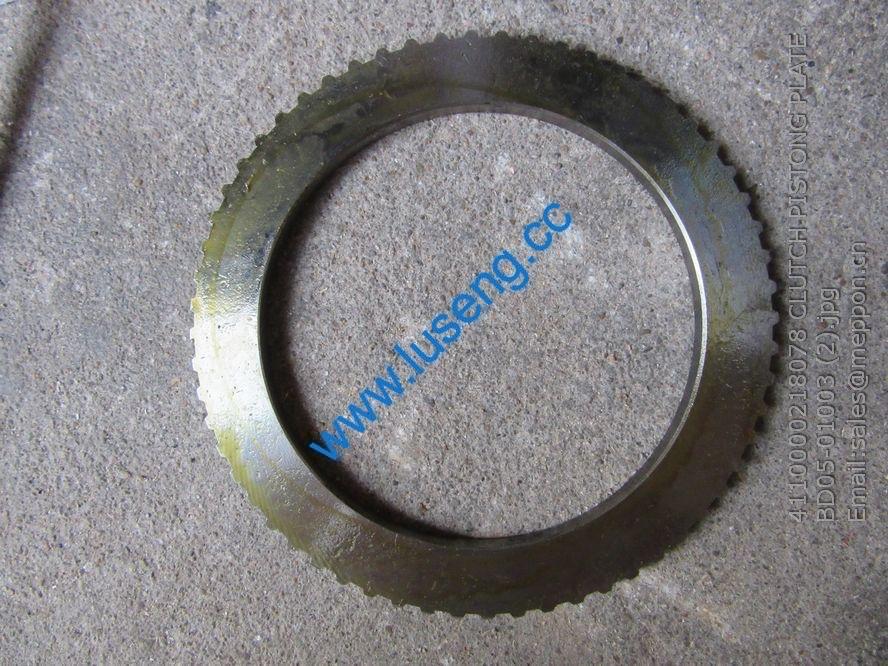

4110000218078 CLUTCH PISTONG PLATE BD05-01003

1 612600130499 1 进气接头 Intake nipple
2 612600130497 1 水冷单缸空压机 Air compressor
3 612600130425 1 排气接头 Exhaust pipe nipple

1 614150004 1 密封垫 Seal washer
2 612600150414 1 油底壳总成 Oil pan assembly
3 614150046 10 油底壳托块 Oil pan block
4 90011430019 12 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 612600150390 2 油底壳托块 Oil pan block

1 612600150413 1 油底壳 Oil pan
2 612600150106 1 密封垫圈 Seal washer
3 612600150396 1 磁性螺塞总成 Magnetic screw plug assembly

1 90003888453 8 2型全金属六角锁紧螺母
Prevailing Torque Type All-metal
Hexagon Nut,
2 612600012913 1 左前支架 Front bracket (left)
3 90003813638S 2 双头螺柱 Stud
4 90003900085 4 弹性圆柱销 Spring dowel pin
5 90003813628S 6 双头螺柱 Stud
6 612600012914 1 右前支架 Front bracket(right)

1 612600110394 1 气路连接胶管 Air Connecting Rubber Pipe
2 612600110829 1 废气引射管总成 Exhaust Gas Injecting Pipe Assembly
3 612600160003 1 橡胶管 Rubber hose
4 612600114398 1 消声器 Muffl e r
5 612600110506 1 消声器进气管 Intake pipe of baffle
6 612600140161 1 油门软轴 Flexible shaft
7 612600160002 1 冷却液连接胶管 Coolant Connecting Rubber Pipe

1 612600112066 1 空气滤清器 Air filter

1 612600112168 1 粗滤器分总成 Primary fi lte r subassembly
2 612600112169 1 空滤器体分总成
3 612600110540 1 空气滤清器芯 Air Filter Element
