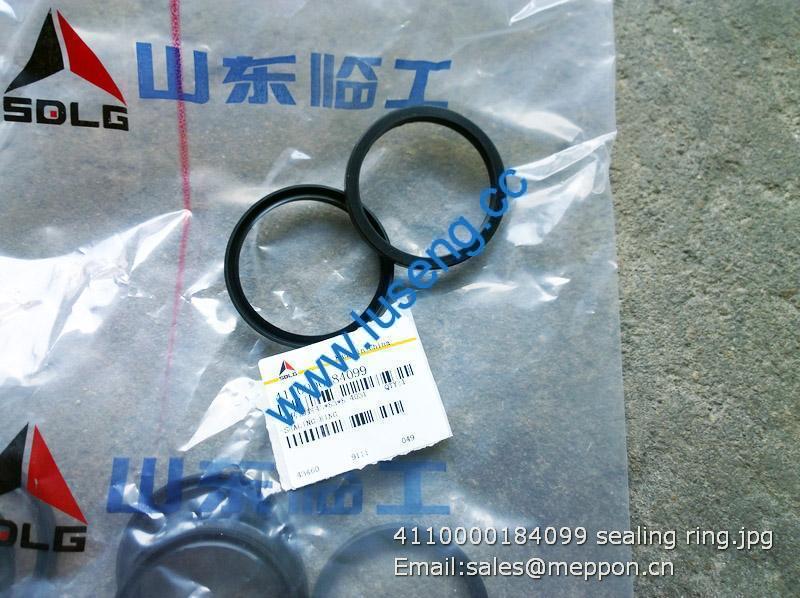

4110000184099 sealing ring SDLG SPARES

Category:

Description

4110000184099 sealing ring SDLG SPARES

1 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 8
2 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 2
3 29140011721 放平护板 Indicator plate Y 1
4 4120002264 转斗油缸HSGF-190*100*545-1085 Tilt cylinder N 1
5 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2
6 4041000169 软管LGB106-012165 Hose assembly Y 2
7 4041000056 分体法兰LGB117-312550 Flange half Y 4
8 4011000475 螺栓GB16674-M10*30EpZn-8.8 Screw Y 24
9 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 7
10 4130000607 接近开关J7-D10C2 Position switch Y 1
11 4041000774 螺塞LGB135-01422 Plug Y 1
12 4041000767 O形圈LGB168-11124 O-ring Y 1
13 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 2
14 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 2
15 29140000051 转斗缸大腔钢管 Pipe Y 1
16 29140000121 压板 Plate Y 2
17 29140000131 橡胶板 Rubber plate Y 2
18 29140009291 橡胶板 Rubber plate Y 2
19 4011000797 螺栓GB5782-M10*110EpZn-8.8 Bolt Y 4
20 29140010821 钢管 Pipe Y 4
21 4130000679 接近开关J7-D10C2/08 Position switch Y 1
22 29140007541 接近开关支架 Bracket Y 1

23 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 4
24 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2
25 29140007551 动臂指示板 Indicator plate Y 1
26 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 2
27 29140000161 转斗联过渡钢管B Pipe Y 1
28 4041000027 分体法兰LGB117-312551 Flange half Y 2
29 29140000141 转斗联过渡钢管A Pipe Y 1

1 4120002264002 缸筒总成24A136190 Cylinder tube Y 1
2 4120002264003 活塞杆24A111250 Piston rod Y 1
3 4120002264004 缸盖24A170750 Cover Y 1
4 4120002264401 密封件包 Sealing ring kit Y 1
5 4120002264401 密封件包 Sealing ring kit Y 1
6 4120002264401 密封件包 Sealing ring kit Y 1
7 4120002264401 密封件包 Sealing ring kit Y 1
8 4120002264401 密封件包 Sealing ring kit Y 1
9 4120004489005 钢丝挡圈-孔用24C001260 120*2.5t Retaining ring Y 1
10 4120002264401 密封件包 Sealing ring kit Y 1
11 4120002264401 密封件包 Sealing ring kit Y 1
12 4120002264401 密封件包 Sealing ring kit Y 1
13 4120002264005 活塞24A180290 Piston Y 1
14 4120002264401 密封件包 Sealing ring kit Y 1
15 4120002264401 密封件包 Sealing ring kit Y 2
16 4120002264401 密封件包 Sealing ring kit Y 1
17 4120004489008 钢球24U005001 D5 Ball Y 1
18 4120004489009 内六角圆柱头螺钉24T508251 M8x25L Hex. socket screw Y 1
19 4120002264401 密封件包 Sealing ring kit Y 2
20 4120004488007 弹性垫圈24T401602 D16 Spring washer Y 16
21 4120005801012 螺钉-内六角圆柱头24T516555 M16*55L Screw Y 16
22 4120002264006 轴套24C044010 Bushing Y 1
