Description

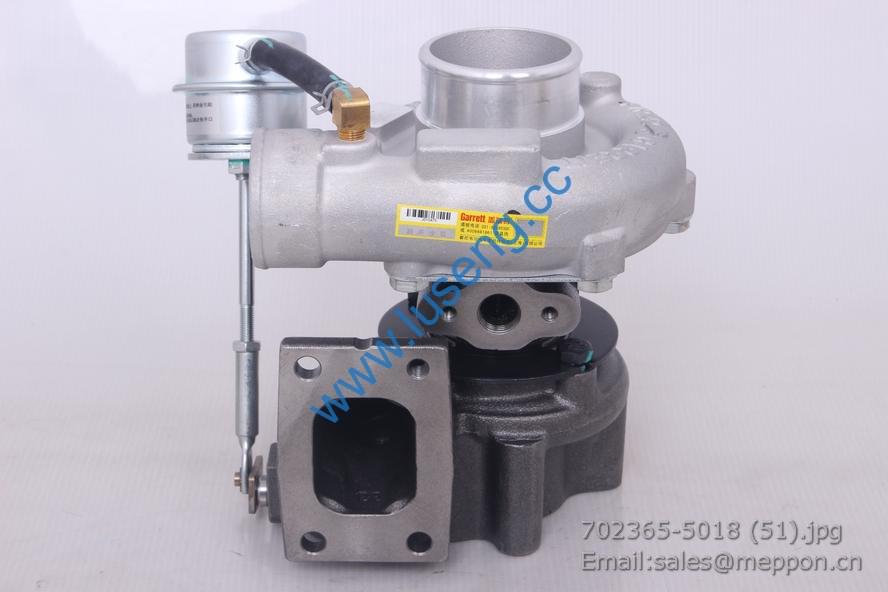

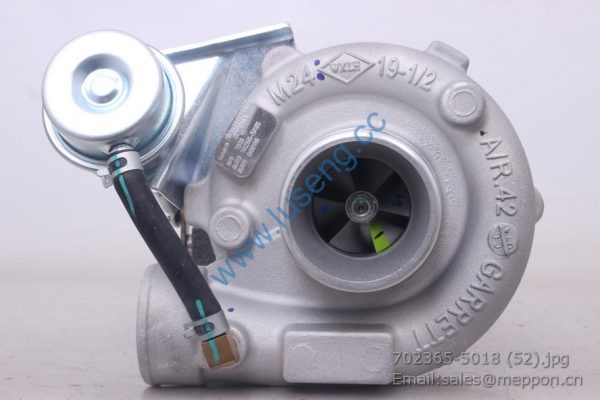

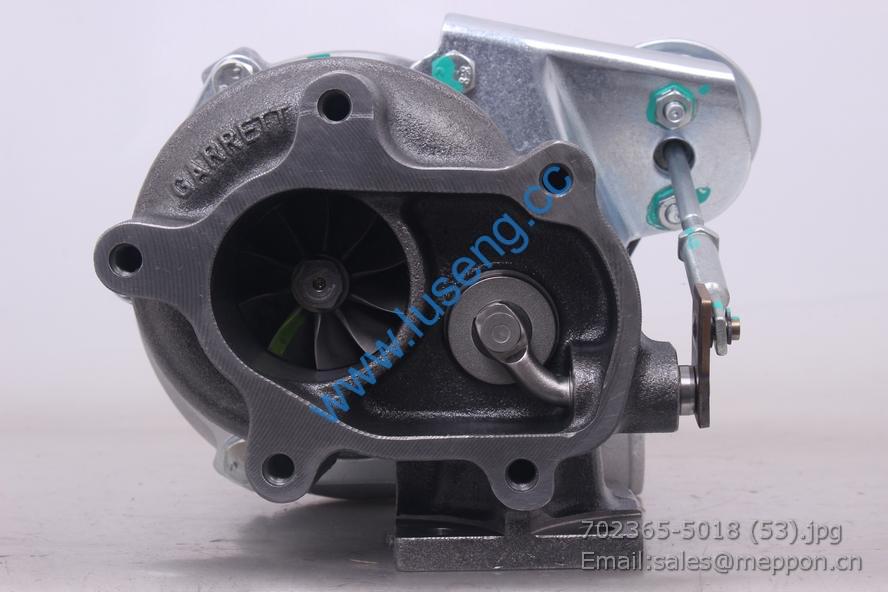

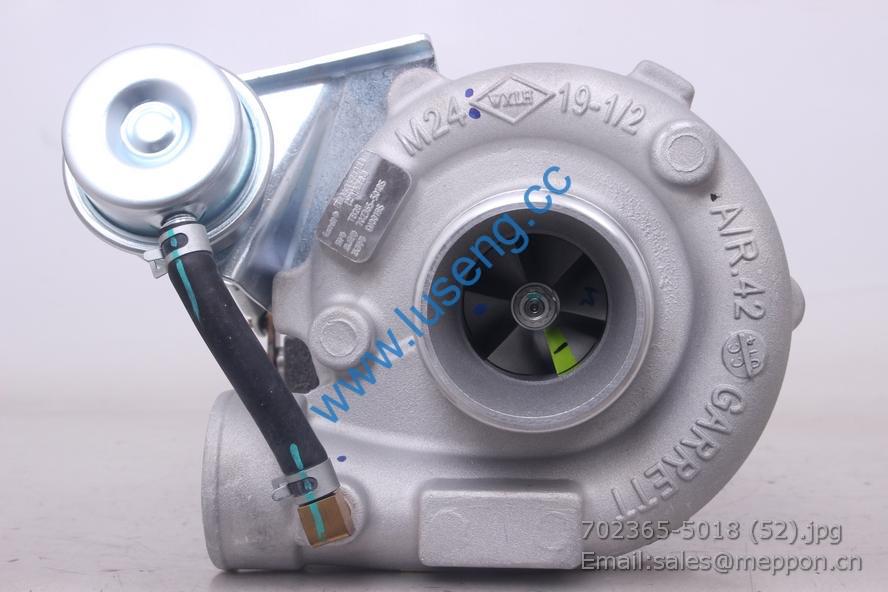

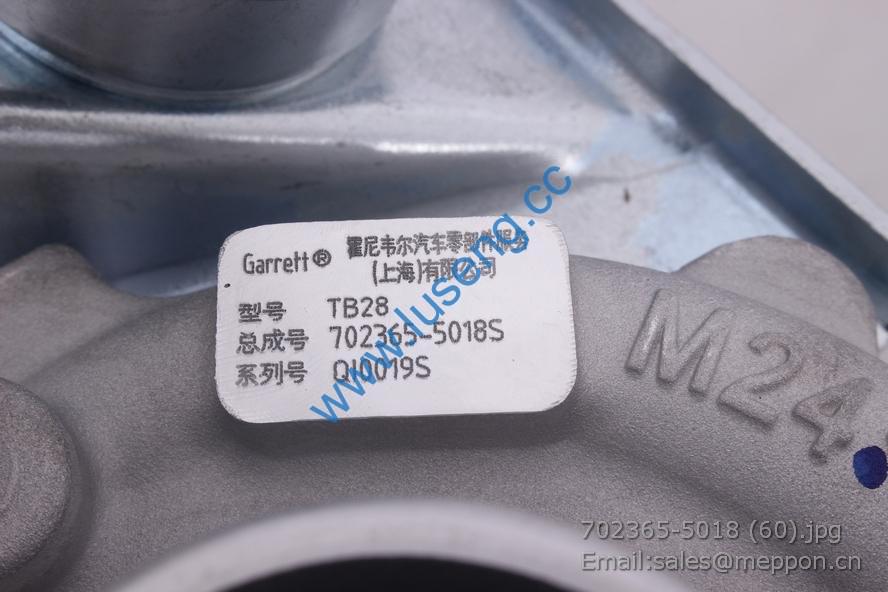

4102BZL-A2.10.10 DONGFENG turbocharger 702365-5018S Truck
1 530-1002026C 气缸套 Cylinder liner 4
2 150-1002011 定位套 Locating sleeve 2
3 150-1002021 碗形塞片 Bowl type plug 2
4 150-1002022A 主油道螺塞 Main oil galley screw plug 3
5 530-1002134 凸轮轴衬套Ⅱ Camshaft bushing Ⅱ 4 易损件 EWP
6 Q72270 碗形塞片 70 Bowl-type plug 1
7 150-1002016 定位销 Locating pin 2
8 YC209-100125FL 油封 100X125 Oil seal 100X125 1 易损件 EWP
YC209-B100125PL 油封 100X125 Oil seal 100X125 1 选装 Optional
YC209-C100125PL 油封 100X125 Oil seal 100X125 1 选装 Optional
9 Q150B0825 螺栓 M8X25 Bolt M8X25 8
10 Q40308 垫圈 8 Washer8 8
11 530-1002501 曲轴后油封座 Crankshaft rear oil seal seat 1
12 150-1002063B 后油封座垫片 Rear oil seal seat gasket 1 易损件 EWP
13 E0400-1002015B 气缸体 Cylinder block 1
E0400-1002015B* 气缸体组件
Cylinder block assembly
1
包含(including)3、13、
15、18、29、30、31
14 Q61902 螺塞 NPT 1/4 Screw plug NPT 1/4 1
15 150-1002019 碗形塞片 Bowl type plug 6
16 530-1002028 定位销 Locating pin 1
17 150-1002013A 碗形塞片 Bowl type plug 3
18 530-1002120 凸轮轴衬套 Camshaft bushing 1 易损件 EWP
19 G6000-1002306 惰齿轮轴 Idler gear shaft 1
20 530-1002304 惰齿轮轴螺栓 Idler gear shaft bolt 1
21 150-1002043A 惰齿轮衬套 Idler gear bushing 1 易损件 EWP
22 150-1002041A 惰齿轮 Idle gear 1
23 150-1002045 惰齿轮防磨板 Idler gear anti-friction plate 1
24 150-1002025 定位销 Locating pin 1
25 E0400-1002170 喷嘴焊接件 Nozzle weldment 1
26 430-1002163 垫圈 Washer 1
27 G0100-1002162A 过油螺栓 Hollow bolt for oil 1
28 150-1002024 主轴承盖 Main bearing cap 3
29 150-1002023 止推主轴承盖 Main thrust bearing cap 1
30 150-1002014 主轴承盖(后) Main bearing cap (rear) 1
31 530-1002017 主轴承盖螺栓 Main bearing cap bolt 10
32 6105Q-1002022 铝堵 φ10X10 Aluminium plug 1
