Description

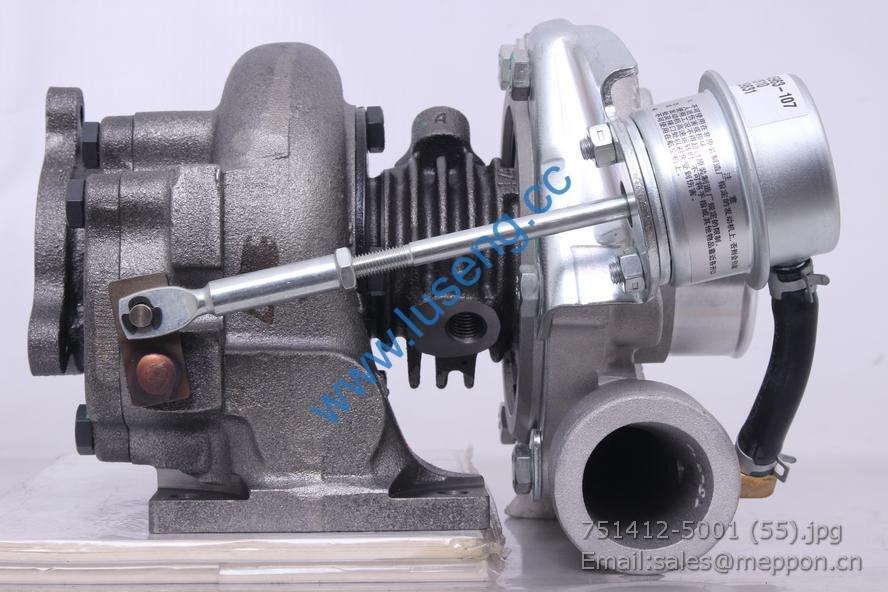

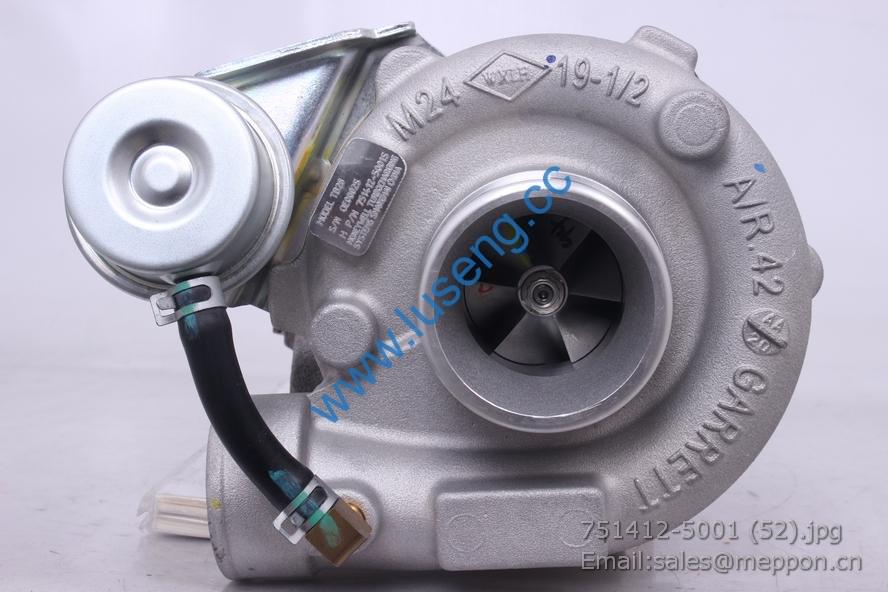

4100ZL.10.10-1 chaochai turbocharger 751412-5001S truck

1 E2100-1118100-135 增压器 Turbocharger 1
2 Q/YC901-3C18 垫圈18 Washer 18 1 易损件
3 E0800-1118055B 增压器回油接头 Turbocharger oil return pipe joint 1
4 E0200-1118051 垫圈 Washer 1 易损件
5 E0200-1118060B 增压器回油管 Turbocharger oil return pipe 1
6 E0800-1118350 管夹组件 Pipe clamp assembly 1
7 Q150B0895 螺栓M8X95 Bolt M8X95 1
8 340-3701033 隔圈 Space ring 1
9 YC208-B01700F O形圈2.65X17 O-ring 2.65X17 2 易损件
10 1530-1118012 增压器垫片 Turbocharger gasket 1
11 E0800-1118011 双头螺柱 Threaded stud 4
12 E0200-1118013 螺母M8×1 Nut M8×1 4
13 Q/YC901-3C14 垫圈14 Washer 14 2
14 Q/YC901-1C1415 铰接螺栓M14X1.5 Bolt M14X1.5 1
15 Q150B1030 螺栓M10X30 Bolt M10X30 3
16 Q40110 垫圈10 Washer10 3 易损件
17 E2100-1118403A 涡壳隔热罩 Turbine thermal shroud 1
18 Q/YC901-3C12 垫圈12 Washer 12 1
19 E0800-1118031A 增压器进油接头 Oil inlet hose 1
20 1530-1118040C 增压器进油软管 Turbocharger oil inlet pipe 1

1 G0206-1305003 操纵杆 Holding rod 1
2 G0206-1305006A 支撑板 Support plate 1
3 Q150B0816 螺栓M8X16 Bolt M8X16 1
4 Q40308 垫圈8 Washer8 1 易损件
5 Q40108 垫圈8 Washer8 1 易损件
6 Q5003218 销3.2X18 Pin 3.2X18 1
7 Q67627 环箍27 Hoop 27 1
8 530-1305002A 弯胶管 kneed pipe 1
9 530-1305010A 放水阀部件 Water drain valve parts 1
10 530-1305005 过渡接头 Transition joint 1
