Description

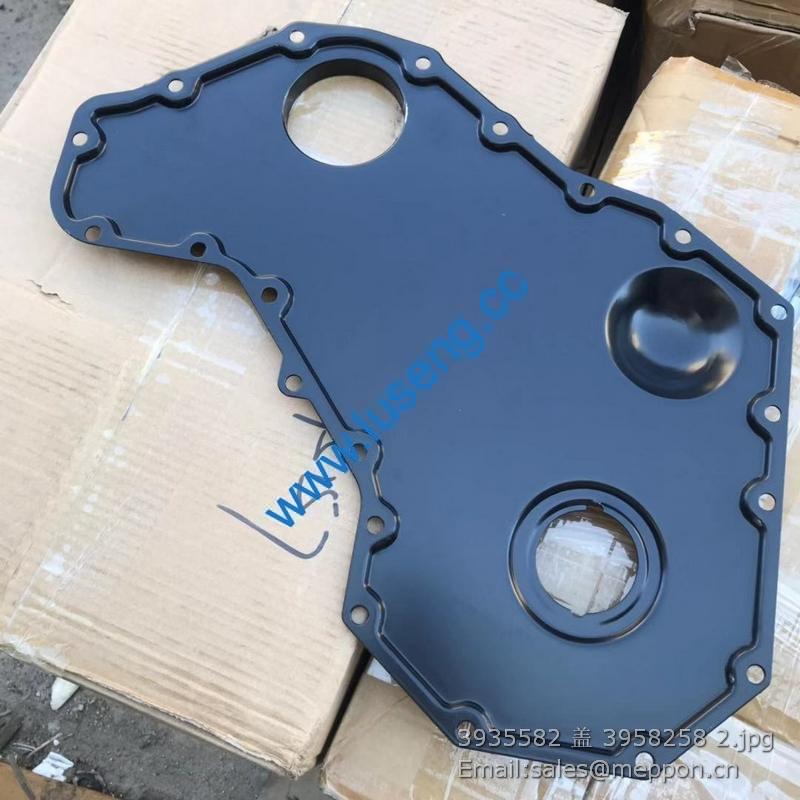

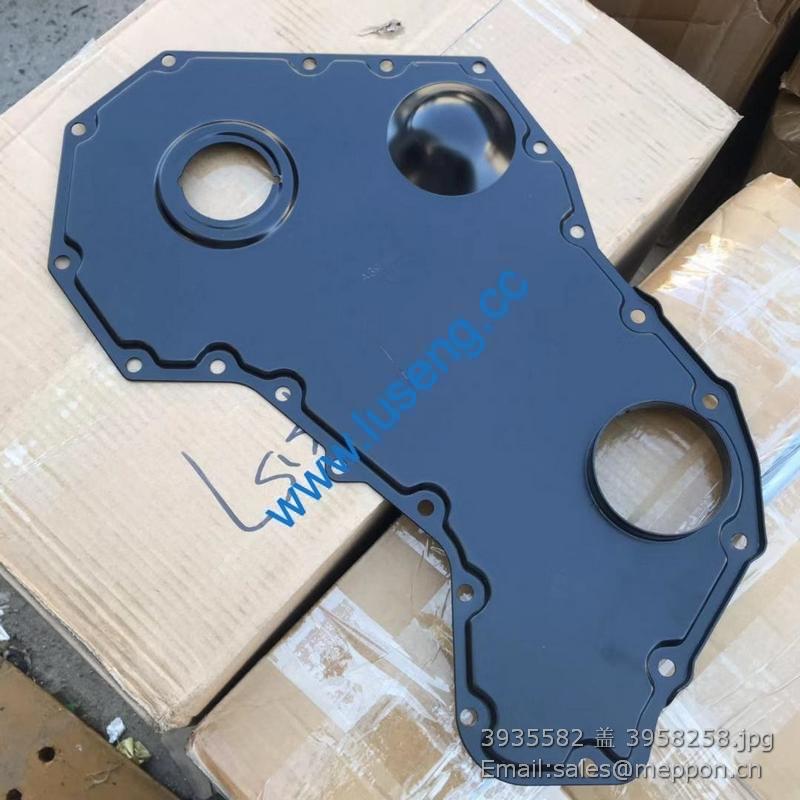

3935582 DescriptionGear Cover cummins

Condenser assy
drying bottle
drying bottle bracket
Switch
High pressure pipe condenser- drying bottle
Spring shim 6
Shim 6
Bolt M6×40 LNQ1604A
FT800.45.082
TG1204.81.3a
TG1204.81.4
X1604.81.-02
GB93-87
GB97.1-85
GB5783-86

K6100-1002000/07 气缸体总成 Cylinder Block Assembly 图 Drawing
2 K6100-1003000/02 气缸盖及气缸盖罩总成 Cylinder Head & Valve Cover Assembly
3 K6000-1004000/11 活塞及连杆总成 Piston & Connecting Rod Assembly
4 K6500-1005000/06 曲轴减振器总成 Crankshaft Vibration Damper Assembly
5 K6000-1006000/04 凸轮轴总成 Camshaft Assembly
6 K6100-1007000/06 配气机构总成 Valve Train Assembly
7 K6500-1008000/02 进排气管总成 Intake and Exhaust Manifold Parts Assembly
8 K6100-1009000/05 油底壳总成 Oil Sump Assembly
9 K6100-1010000/02 机油集滤器总成 Oil Strainer Assembly
10 K6000-1011000/04 机油泵总成 Oil Pump Assembly
11 K6000-1012000/03 机油滤清器总成 Oil Filter Assembly
12 K6100-1013000/09 机油冷却器总成 Oil Cooler Assembly
13 K6000-1014000/12 呼吸器总成 Crankcase Ventilation Device Assembly
14 K6100-1015000/03 发动机起动辅助装置总成 Cold start aid system Assembly
15 K6100-1028000/08 油标尺总成 Oil Dipstick Assembly
16 K6100-1104000/08 供给系管路总成 Fuel Supply Pipeline Assembly
17 K6100-1105000/04 柴油滤清器总成 Fuel Filter Assembly
18 K6100-1111000/01 喷油泵总成 Fuel Injection Pump Assembly
19 K6000-1112000/08 喷油器总成 Fuel Injector Parts
20 K6100-1118000/03 增压器总成 Turbocharger Assembly
21 K6000-1306000/06 调温器总成 Thermostat Assembly
22 K6000-1307000/03 水泵总成 Water Pump Assembly
23 K6100-1308000/02 风扇总成 Fan Assembly
24 K6100-1600000/05 动力输出总成 Power Output Assembly
25 K6100-3407000/01 转向泵总成 Steering Pump Assembly
26 K6100-3509000/05 气制动空气压缩机总成 Air Compressor Assembly
27 K6100-3701000/04 发电机总成 Generator Assembly
28 K6100-3708000/05 起动机总成 Starter Assembly
29 K6100-3823000/06 控制系统总成 Controlling System Assembly
30 K6100-3904000/01 铭牌 Data Plate

1 K6000-1308103 风扇皮带 Fan belt 1 易损件 EWP
2 Q18412120TF2 螺栓 M12X120 Bolt M12×90 1
3 Q218B1060TF2 螺钉 M10×60 Screw M10×60 1
4 K6000-1307060B 水泵张紧轮组件 Water pump belt tensioner 1 易损件 EWP
5 K6000-1002470A 多楔带惰轮组件 I Auxiliary drive idler I 1 易损件 EWP
6 K6000-1002480 张紧轮组件 belt tensioner 1 易损件 EWP
7 Q1840825TF2 螺栓 M8×25 Bolt M8×25 1
8 Q1840835TF2 螺栓 M8X35 Bolt M8×25 2
9 K6000-1002464B 惰轮支架 Tensioner bracket 1
10 K6000-1307062 张紧轮垫块 Tensioner Adapter 1
11 Q61910 螺塞 NPT 1 Screw plug NPT 1 2
12 K6000-1002106A-W1 气缸套 Liner 6 易损件 EWP
13 K6000-1002132 气缸套封水圈 Liner water seal 6 易损件 EWP
14 K6000-1002107 气缸套封水圈 Liner water seal 6 易损件 EWP
15 K6000-1002108 气缸套封水圈Ⅱ Liner water sealⅡ 6 易损件 EWP
16 Q618B03 螺塞 NPT 3/8 Screw plug NPT 3/8 1
17 Q1840812 螺栓 M8X12 Bolt M8×12 2
18 M1000-1002162 盖板 Cover plate 1
19 151-1307017A 暖风回水接头 Water return connector 1
20 GB/T308-11G60b 钢球 11G60b Steel ballφ11 3
21 K6000-1002114D 气缸体 Cylinder block 1
22 K6100-1002201E 齿轮室 Gear house 1
23 K6000-1002202A 齿轮室垫片 Gear house gasket 1 易损件 EWP
24 Q1841230TF2 螺栓 M12X30 Bolt M12X30 1
25 K6000-1002940 空压机惰齿轮组件 Compressor idler gear part 1
26 Q1841050TF2 螺栓 M10X50 Bolt M10×50 3
27 K6000-1002904 空压机惰齿轮轴 Compressor idler gear shaft 1
28 Q1841250TF2 螺栓 M12X50 Bolt M12X50 3
29 K6000-1002350A 大惰齿轮组件 Big idler gear part 1
30 Q18412100TF2 螺栓 M12X100 Bolt M12X100 4
31 YC24-1695 圆柱销 16X95 Pin 16X95 2 易损件 EWP
32 Q1841025TF2 螺栓 M10X25 Bolt M10X25 9
