Description

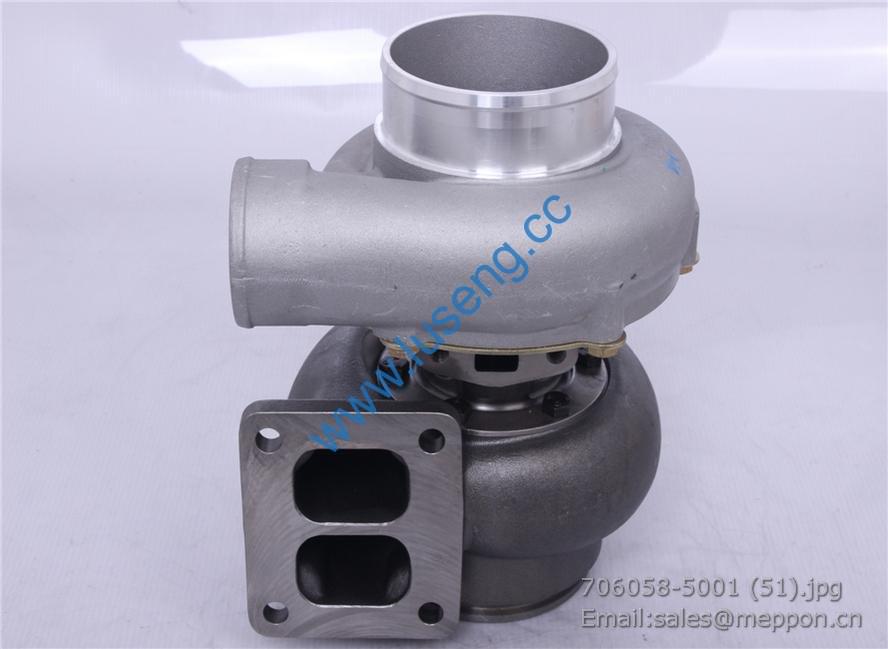

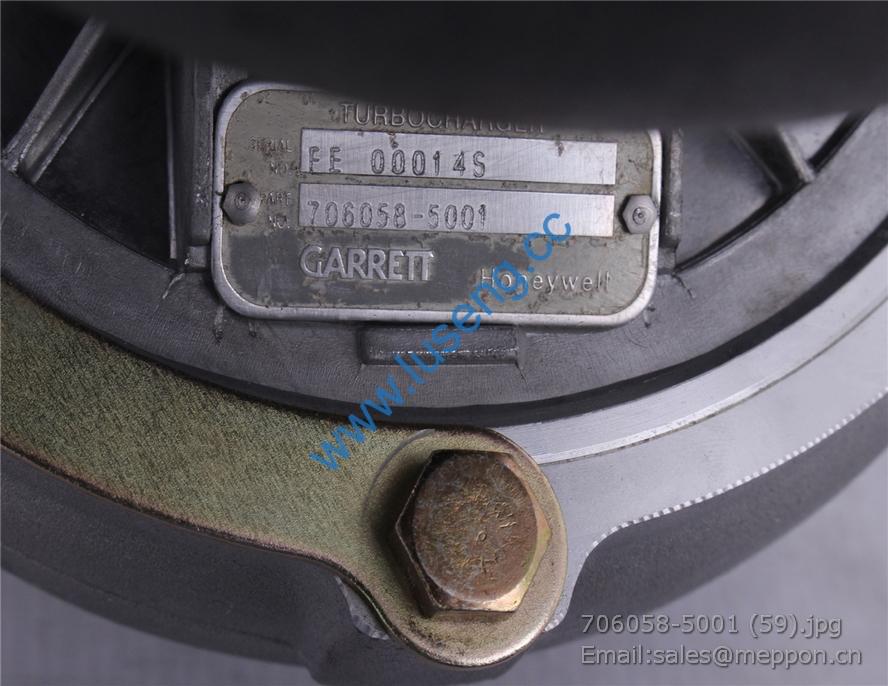

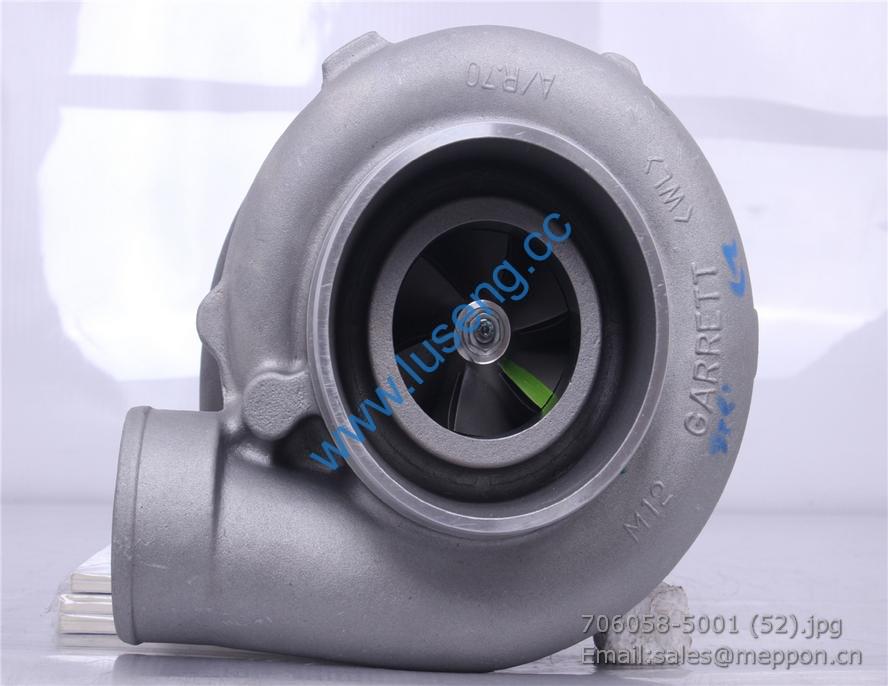

3802303 YUCHAI turbocharger 706058-5001S Construction Equipment

1 YC9-082 塑料堵盖 82 Plastic cover 1

1 231-3509024A 空压机进水管 Air compressor water inlet pipe 1
2 Q/YC149-14 复合式密封垫圈 14 Compound seal ring 14 4 易损件 EWP
3 6QA6-1307017 管接螺栓 pipe joint bolt 2
4 232C-3509060 空压机进气接头组件 Air inlet joint groupware, air
compressor
1
5 G3220-3509017 锁紧螺母 Locking nut 1
6 G4606-3509014 密封垫片 Seal washer 1
7 Q1840820TF2 螺栓 M8X20 Bolt M8X20 2
8 Q40308 垫圈 8 Washer8 2
9 Q40108 垫圈 8 Washer8 2
10 2530-3509001 空压机齿轮 Air compressor gear 1
11 6QA6-1307017 管接螺栓 pipe joint bolt 2
12 Q/YC149-14 复合式密封垫圈 14 Compound seal ring 14 4 易损件 EWP
13 1531-3509024A 空压机进水管 Air compressor water inlet pipe 1
14 2530-3509002 气泵垫片 Air pump washer 1
15 E0200-3509030B 空压机进油管 Air compressor oil inlet pipe 1
16 150-3509023 进油螺栓 Oil inlet bolt 2
17 Q/YC149-10 复合式密封垫圈 10 Seal ring10 4
18 G0100-3509031 接头体 I 1
19 Q/YC149-22 复合式密封垫圈 22 Seal ring 22 1
20 E0208-3509070 出气接头组件 Air outlet union assembly 1
21 Q/YC901-3C22 垫圈 22 Washer22 1 易损件 EWP
22 E0208-3509100A 空气压缩机 Air compressor 1

1 E1108-3701100 发电机 Alternator 1 奥博
2 Q340B10 螺母 M10 Nut M10 1
3 Q40310 垫圈 10 Washer10 1
4 Q40110 垫圈 10 Washer10 1
5 Q150B10125 螺栓 M10X125 Bolt M10X125 1
6 1531B-3701002A 发电机支架 Alternator bracket 1
7 Q1841080TF2 螺栓 M10X80 Bolt M10X80 2
8 Q1841075TF2 螺栓 M10X75 Bolt M10X75 1
9 Q40316 垫圈 16 Washer16 1
10 D0110-3701032 滑块 Slide block 1
11 Q1841045TF2 螺栓 M10×45 Bolt M10×45 1
12 Q340B16 螺母 M16 Nut M16 2
13 J42L1-3701031 调节螺栓 Adjusting bolt 1
14 1531B-3701040 三角胶带 B955 V-belt 1 易损件 EWP
