Description

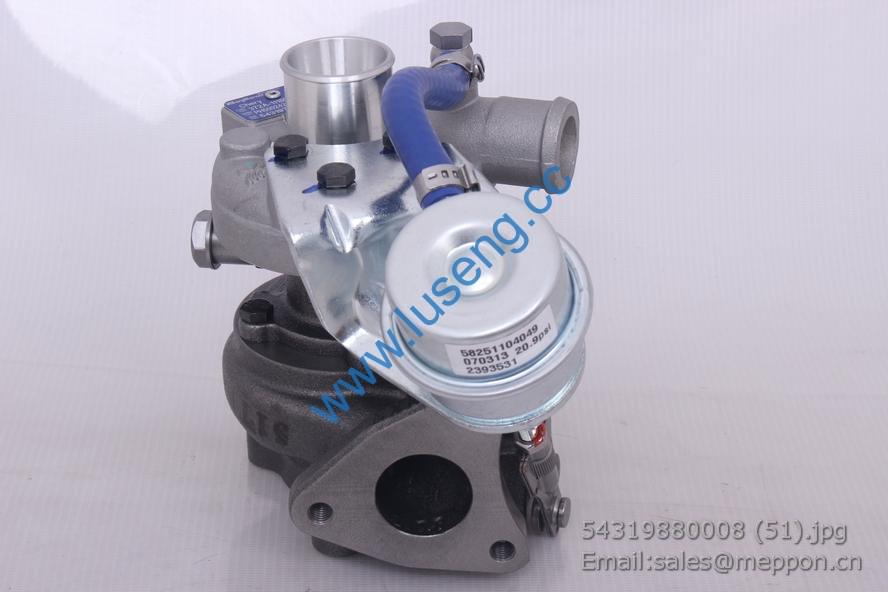

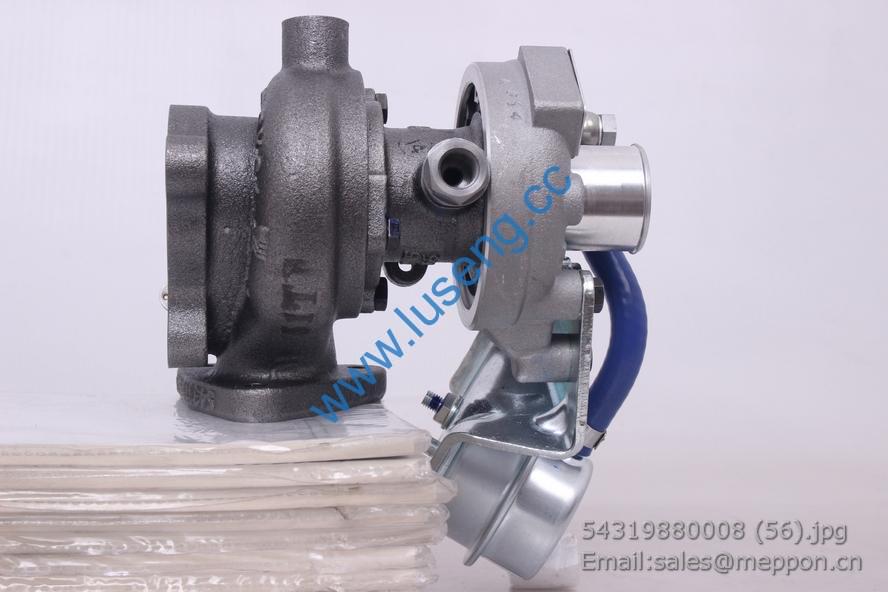

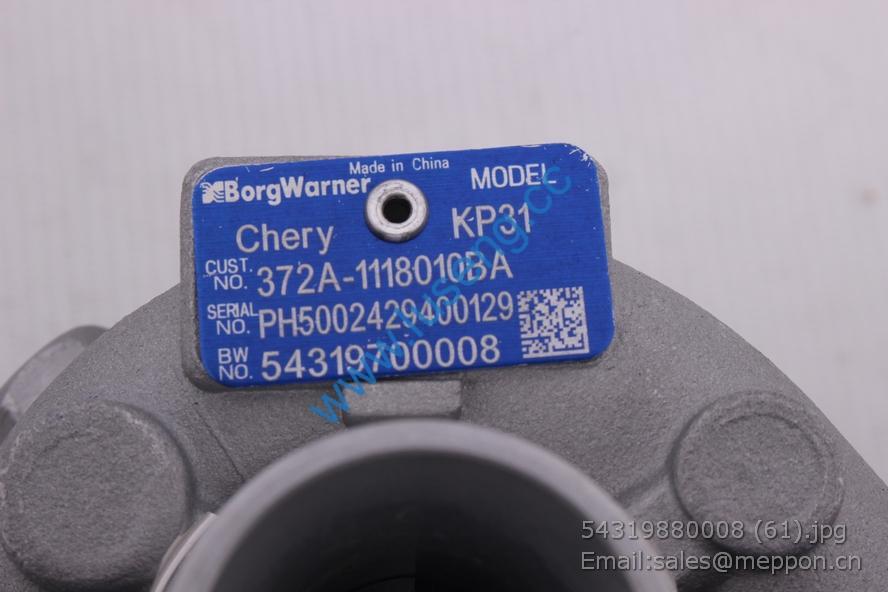

372A-1118010BA Chery turbocharger

1 GB/T5783-2000 螺栓M8×35 Bolt M8×35 4
2 GB/T93-1987 垫圈8 Washer 8 4
3 GB/T97.1-2002 垫圈8 Washer 8 4
4 QC495Q(DI)-17002 机油管 Oil pipe part 1
5 QC495Q(DI)-17005 机油管垫片 Gasket of oil pipe 2

1 GB/T5782-2000 螺栓M8X115 Bolt M8×115 4
2 GB/T93-1987 垫圈8 Washer 8 13
水泵、风扇总成QC495Q(DI)-18000
第 35 页3 GB/T97.1-2002 垫圈8 Washer 8 13
4 QC490Q（DI）-18012 冷却风扇（φ420） 　Fan 1
5 QC495T-08002 风扇垫块 Gasket of fan 1
6 GB/T1154-1989 三角带 V-belt 2
7 QC495T-08004 三角带轮 Water pump belt pulley 1
8 GB/T5782-2000 螺栓M8X85 Bolt M8×85 2
9 GB/T5782-2000 螺栓M8X55 Bolt M8×55 5
10 GB/T5783-2000 螺栓M8X25 Bolt M8×25 5
11 QC495T-08014 节温器盖 Thermostat cover 1
12 N85Q-17002 节温器盖垫片 Thermostat shell gasket 1
13 N85Q-17003 节温器 Thermostat 1
14 QC495T-08007 水泵体 Water pump block 1
15 GB/T6170-2000 螺母M10 Nut M12 1
16 GB/T97.1-2002 垫圈10 Washer 8 1
17 GB/T276-1982 水泵轴联轴承6202 Bearing 6202 1
18 N85-08003 水封（IIF12型） Water seal 1
19 N85-08005 水泵叶轮 Water pump impeller 1
20 QC495T-08005 水泵垫片 Water pump gasket 1
21 QC495T-08006 水泵连接板 Water pump gasket 1
22 QC490T-19001 节温器壳垫片 Thermostat shell gasket 1
23 QC495T-08013 机体前端面垫片 preceding gasket 1
24 QC495T-08011 机体前端面垫板 preceding gasket 1
25 QC495T-08013 机体前端面垫片 preceding gasket 1
26 QC495T-08010 进水弯管垫片 Washer of water pipe 1
27 QC495T-08009 进水弯管 Water pipe 1
28 QC495T-08003 三角带轮座 belt pulley seat 1

1 QC495T-19001 气泵螺栓 Bolt 4
2 GB/T93-1987 垫圈8 Washer 8 4
3 GB/T97.1-2002 垫圈8 Washer 8 4
4 QC495T-19002 气泵 CT30 PumpCT30 1
5 N85T-12011 气泵垫片 Gasket of pump 1
6 QC495T-00001 十字滑块 Cross slide block 1
7 GB/T894.1-1 挡圈50 Bdffle quoit 50 1

QC495T-21000 喷油泵BHF4IW080020 Fuel injection pump 1 定货号4Q198UT-1（康达）
QC498T-21000 喷油泵BHFX4BQA85Y047 Fuel injection pump 1 定货号4BQA336（鑫亚）
QC495T-21000 输油泵 Transport oil pump 1
QC498T-21000 输油泵 Transport oil pump 1
QC495T-21000 出油偶件 Bring oil part 4
QC498T-21000 出油偶件 Bring oil part 4
QC495T-21000 柱塞偶件 Pole stuff part 4
QC498T-21000 柱塞偶件 Pole stuff part 4
QC480Q-21400 喷油泵进油管部件 Oil supply pipe 1
