Description

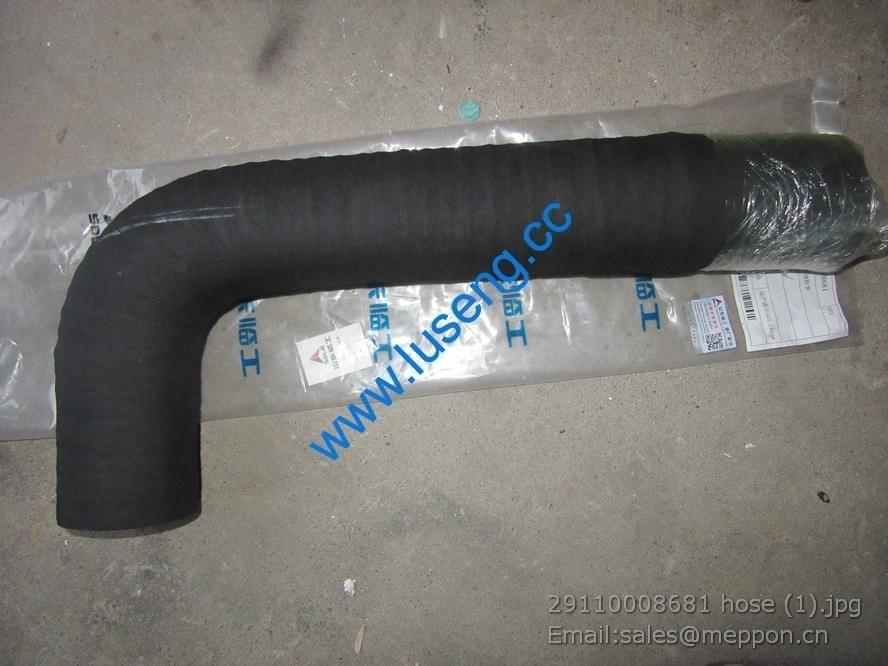

29110008681 hose SDLG

1 612600010735 3 复合垫圈 Washer
2 61460070011 1 主油道后螺塞 Plug
3 61500010185 6 气缸盖螺栓 Cylinder head bolt
4 90003989288 1 碗形塞 Corehole plug
5 61500010100 1 后油封 Rear oil seal
6 612600050042 1 密封垫圈 Seal washer
7 612600011927 1 螺塞 Screw plug
8 90003962050 1 内六角螺塞 Inner hexagon plug
9 614070068 1 安全阀弹簧 Safety valve spring
10 614070069 1 安全阀 Safety valve
11 612630010015 6 气缸套 Cylinder liner
12 61560010047 6 喷嘴组件 Nozzle assembly
13 90003098015 6 密封垫圈 Seal washer
14 90003962621 6 空心螺栓 Hollow bolt
15 AZ1500070097 1 主油道限压阀总成
Pressure limiting valve assembly of
main oil passage
16 90003802493 5 六角头螺栓 Hexagon bolt
17 90003862428 22 内六角圆柱头螺钉 Inner hexagon screw
18 188250083 22 自锁垫圈 Washer
19 612600070160 1 六角螺塞 Hexagon plug
20 612600013918 2 下止推片 Thrust washer (lower)
21 81400010032 2 密封圈 Seal washer
22 612600013917 2 上止推片 Thrust washer (upper)
23 81500010046 7 主轴瓦组件 Main Bearing Set
24 90003901604 6 圆柱销 Straight pin
25 90003909626 6 弹性圆柱销 Spring dowel pin
26 612600010893 1 气缸盖螺栓 Cylinder head bolt
27 61500010185S 14 气缸盖螺栓 Cylinder head bolt

28 612600013825 1 气缸体预装配 Pre-assembled cylinder block
