Description

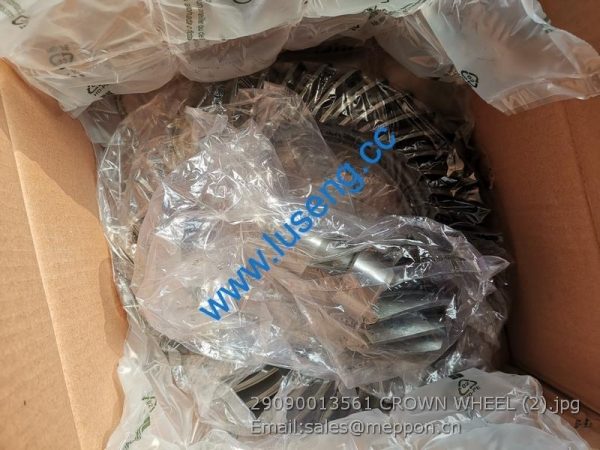

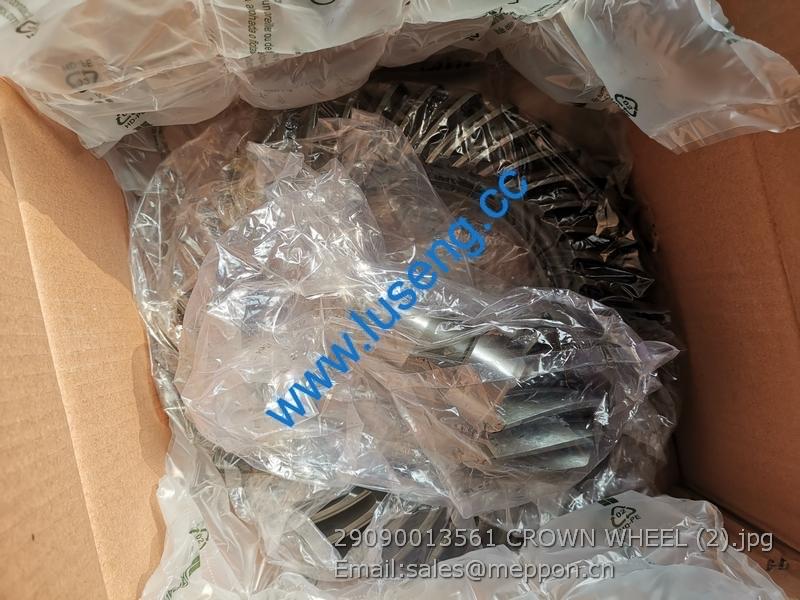

29090013561 CROWN WHEEL SDLG PARTS
23 29130001211 动臂缸胶管 OIL PIPE OF LIFTING CYLINDER Y 4
24 4011000447 螺栓 GB16674-M10*20EpZn-8.8 BOLT GB16674-M10*20EpZn-8.8 N 4
25 4011000474 螺栓 GB16674-M10*25EpZn-8.8 BOLT GB16674-M10*25EpZn-8.8 N 6
26 4011000309 螺栓 GB16674-M10*50EpZn-8.8 BOLT GB16674-M10*50EpZn-8.8 N 4
1 4011000081 螺栓 GB5783-M10*20EpZn-8.8 BOLT GB5783-M10*20EpZn-8.8 N 4
2 29140009531 放平护板 INDICATING ROD Y 1
3 4120001744 转斗油缸 HSGF-180*90*542-1025B TILT CYLINDER HSGF-180*90*542-1025B Y 1
4 4041000177 软管 LGB106-012143 PIPE LGB106012143 Y 2
5 4041000056 分体法兰 LGB117-312550 FLANGE LGB117-312550 Y 6
6 4011000475 螺栓 GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 24
7 4030000029 O 形圈 GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G Y 7
8 4041000774 螺塞 LGB135-01422 PLUG LGB13501421 Y 1
9 4041000767 O 形圈 LGB168-11124 O-RING LGB168-11124 Y 1
10 4011000309 螺栓 GB16674-M10*50EpZn-8.8 BOLT GB16674-M10*50EpZn-8.8 N 2
11 4011000473 螺栓 GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8 N 2
12 29140001021 转斗缸大腔钢管 BIG CHAMBER TUBE OF TILT CYLINDER Y 1
13 29140001131 压板 PRESS PLATE Y 2
14 29140001141 橡胶板 RUBBER PLATE Y 2
15 29140009281 橡胶板 RUBBER PLATE Y 2
16 4011000797 螺栓 GB5782-M10*110EpZn-8.8 BOLT GB5782-M10*110EpZn-8.8 N 4
17 29140001091 转斗联大腔钢管 BIG CHAMBER TUBE OF TILT CYLINDER Y 1
18 29140001111 转斗联小腔钢管 SMALL CHAMBER TUBE OF TILT CYLINDER Y 1
19 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV N 2
20 4015000197 垫圈 GB96.1-10EpZn-300HV WASHER GB96.1-10EpZn-300HV N 6
21 29140010821 钢管 STEEL TUBE Y 4
1 29100011251 液压油箱体 HYDRAULIC TANK BODY N 1
2 4030000130 O 形圈 GB3452.1-47.5*3.55G O-RING GB3452.1-47.5*3.55G Y 1
3 4011000479 螺栓 GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8 N 4
4 29100011341 回油钢管 TUBE Y 1
5 29100001041 法兰盖 PLANGED CAP Y 1
6 4030000234 O 形圈 GB3452.1-212*5.30G O-RING GB3452.1-212*5.30G Y 1
7 4041000192 螺塞 LGB135-03341 PLUG LGB13503341 Y 1
8 4041000765 O 形圈 LGB168-12931 O-RING LGB168-12931 Y 1
9 4190000008 环形磁铁 LG03-CT76*32*15 RING MAGNET LG03-CT76*32*15 Y 1
10 4011000082 螺栓 GB5783-M10*25EpZn-8.8 BOLT GB5783-M10*25EpZn-8.8 N 12
11 4015000130 挡圈 GB894.1-25-65Mn RING SNAP GB894.1-25-65Mn N 2
12 29020001071 垫圈 WASHER Y 2
13 29020001051 合页 JOIN LEAF Y 2
14 29020001061 销轴 PIN Y 2
15 4030000065 油杯 JB7940.1-M10*1 GREASE NIPPLE JB7940.1-M10*1 Y 2
16 4030000232 O 形圈 GB3452.1-170*3.55G O-RING GB3452.1-170*3.55G Y 1
17 29100000041 回油法兰盖 FLANGE CAP Y 1
18 29100000051 弹簧 SPRING Y 1
19 29100001051 回油滤芯 STRAIN CORE Y 1
20 4011000458 螺栓 GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20Ep.Zn-8.8 N 22
21 4030000303 O 形圈 GB3452.1-195*3.55G O-RING GB3452.1-195*3.55G Y 1
22 4041000774 螺塞 LGB135-01422 PLUG LGB13501421 Y 2
23 4041000767 O 形圈 LGB168-11124 O-RING LGB168-11124 Y 2
24 29100001061 吸油法兰 FLANGE Y 1
25 4120001088 换气过滤器 L1.0807-31 GAS-EXCHANGE FILTER L1.00807-51 Y 1
26 29100007691 法兰盖 PLANGED CAP Y 1
27 4030000233 O 形圈 GB3452.1-65.0*3.55G O-RING GB3452.1-65*3.55G Y 1
28 4011000096 螺栓 GB5783-M16*40EpZn-8.8 BOLT GB5783-M16*40EpZn-8.8 N 8
29 29100011031 垫圈 WASHER Y 8
30 4011000137 螺栓 GB16674-M12*20EpZn-8.8 BOLT GB16674-M12*20EpZn-8.8 N 4
31 29100011361 液压油箱下踏板 FOOTPLATE N 1
32 4120000452 加油滤芯 SFM-323M OIL-SUPPLYING FILTER SFM-323M Y 1
33 4011000461 螺栓 GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 N 4
34 29100008361 法兰座 FLANGE SEAT N 1
35 4030000452 O 形圈 GB3452.1-160*3.55G O-RING GB3452.1-160*3.55G Y 1
36 4120000093 液位计 YWZ-200 GAUGE LEVEL YWZ-200 Y 1
